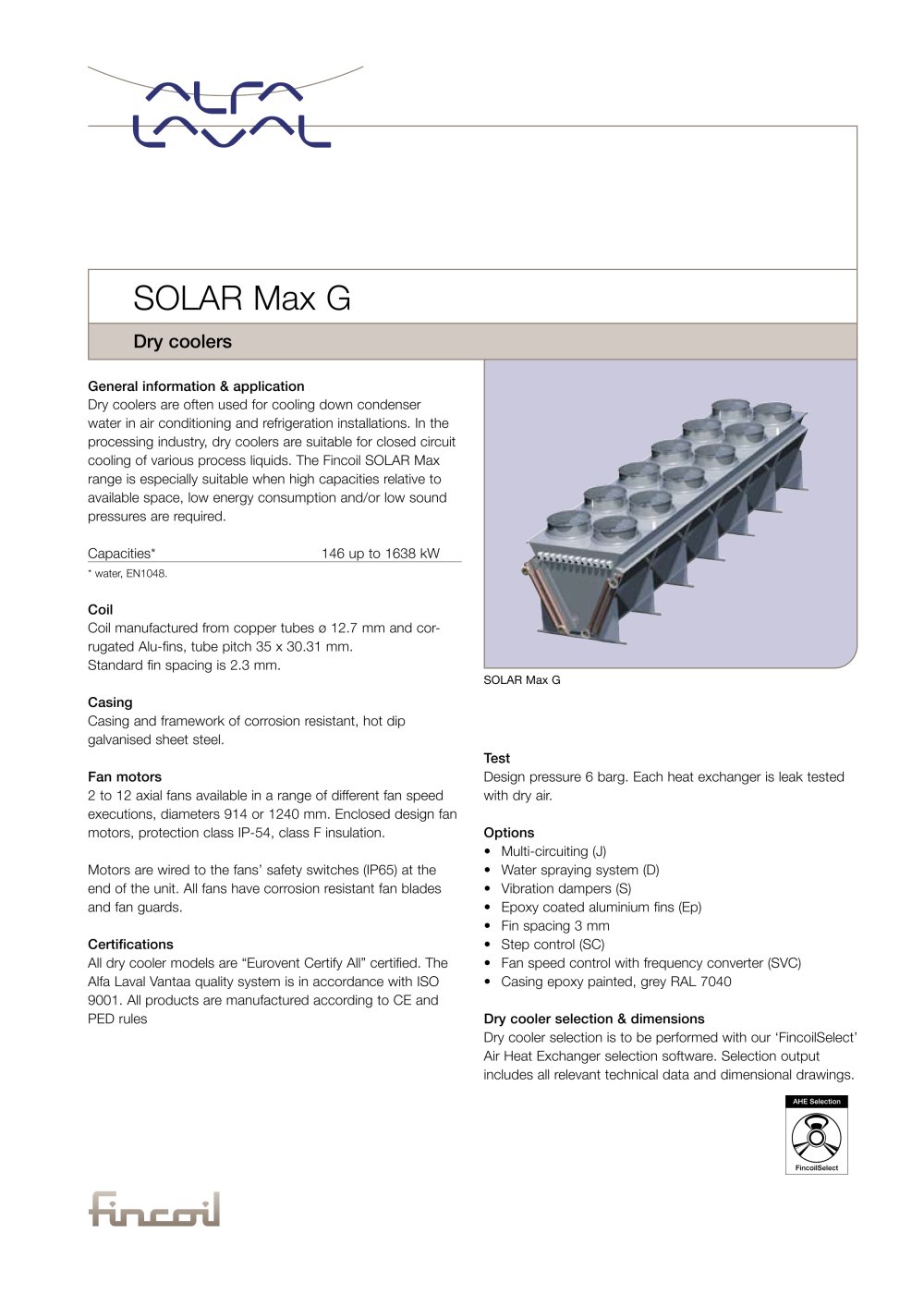

General information & application Dry coolers are often used for cooling down condenser water in air conditioning and refrigeration installations. In the processing industry, dry coolers are suitable for closed circuit cooling of various process liquids. The Fincoil SOLAR Max range is especially suitable when high capacities relative to available space, low energy consumption and/or low sound pressures are required. Capacities* 146 up to 1638 kW * water, EN1048. Coil Coil manufactured from copper tubes ø 12.7 mm and corrugated Alu-fins, tube pitch 35 x 30.31 mm. Standard fin spacing is 2.3 mm. Casing Casing and framework of corrosion resistant, hot dip galvanised sheet steel. Fan motors 2 to 12 axial fans available in a range of different fan speed executions, diameters 914 or 1240 mm. Enclosed design fan motors, protection class IP-54, class F insulation. Motors are wired to the fans’ safety switches (IP65) at the end of the unit. All fans have corrosion resistant fan blades and fan guards. Certifications All dry cooler models are “Eurovent Certify All” certified. The Alfa Laval Vantaa quality system is in accordance with ISO 9001. All products are manufactured according to CE and PED rules Test Design pressure 6 barg. Each heat exchanger is leak tested with dry air. Options • Multi-circuiting (J) • Water spraying system (D) • Vibration dampers (S) • Epoxy coated aluminium fins (Ep) • Fin spacing 3 mm • Step control (SC) • Fan speed control with frequency converter (SVC) • Casing epoxy painted, grey RAL 7040 Dry cooler selection & dimensions Dry cooler selection is to be performed with our ‘FincoilSelect’ Air Heat Exchanger selection software. Selection output includes all relevant technical data and dimensional drawings. SOLAR Max G Dry coolers SOLAR Max G
Open the catalog to page 1How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00139EN 0809 Alfa Laval reserves the right to change specification without prior notification. Dimensions & weights Coil max. length no. of net weight int. volume surface area size A (mm) L (mm) fixing points kg l m2 1 3300 4100 6 1220 160 840 2 3300 4100 6 1320 210 1120 3 3300 4100 6 1550 300 1680 4 4950 5750 8 1810 230 1260 5 4950 5750 8 1960 290 1680 6 4950 5750 8 2310 420 2520 7 6600 7400 10 2280 290 1680 8 6600 7400 10 2450 380 2240 9 6600 7400...
