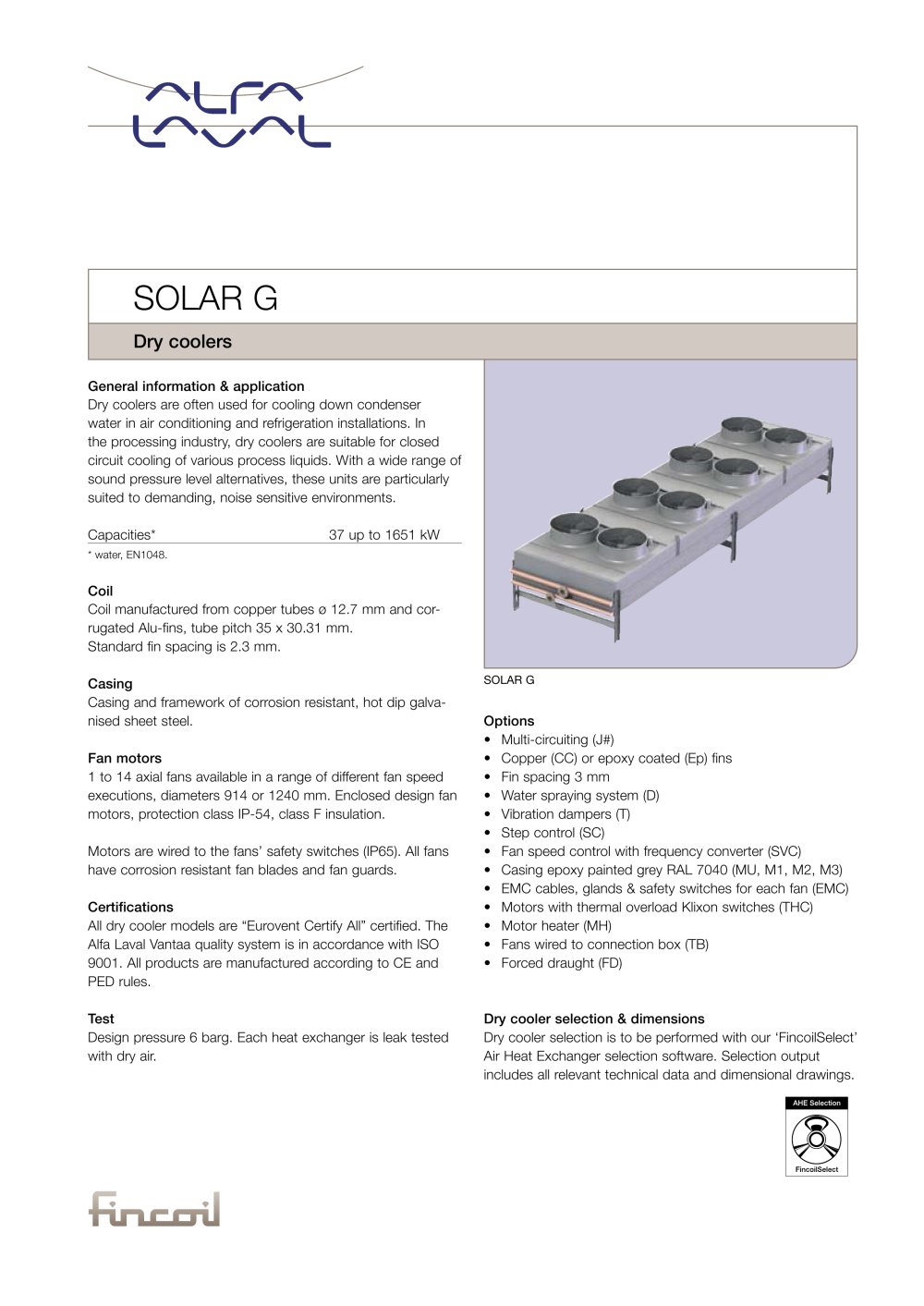

General information & application Dry coolers are often used for cooling down condenser water in air conditioning and refrigeration installations. In the processing industry, dry coolers are suitable for closed circuit cooling of various process liquids. With a wide range of sound pressure level alternatives, these units are particularly suited to demanding, noise sensitive environments. Capacities* 37 up to 1651 kW * water, EN1048. Coil Coil manufactured from copper tubes ø 12.7 mm and corrugated Alu-fins, tube pitch 35 x 30.31 mm. Standard fin spacing is 2.3 mm. Casing Casing and framework of corrosion resistant, hot dip galvanised sheet steel. Fan motors 1 to 14 axial fans available in a range of different fan speed executions, diameters 914 or 1240 mm. Enclosed design fan motors, protection class IP-54, class F insulation. Motors are wired to the fans’ safety switches (IP65). All fans have corrosion resistant fan blades and fan guards. Certifications All dry cooler models are “Eurovent Certify All” certified. The Alfa Laval Vantaa quality system is in accordance with ISO 9001. All products are manufactured according to CE and PED rules. Test Design pressure 6 barg. Each heat exchanger is leak tested with dry air. Options • Multi-circuiting (J#) • Copper (CC) or epoxy coated (Ep) fins • Fin spacing 3 mm • Water spraying system (D) • Vibration dampers (T) • Step control (SC) • Fan speed control with frequency converter (SVC) • Casing epoxy painted grey RAL 7040 (MU, M1, M2, M3) • EMC cables, glands & safety switches for each fan (EMC) • Motors with thermal overload Klixon switches (THC) • Motor heater (MH) • Fans wired to connection box (TB) • Forced draught (FD) Dry cooler selection & dimensions Dry cooler selection is to be performed with our ‘FincoilSelect’ Air Heat Exchanger selection software. Selection output includes all relevant technical data and dimensional drawings. SOLAR G Dry coolers SOLAR G
