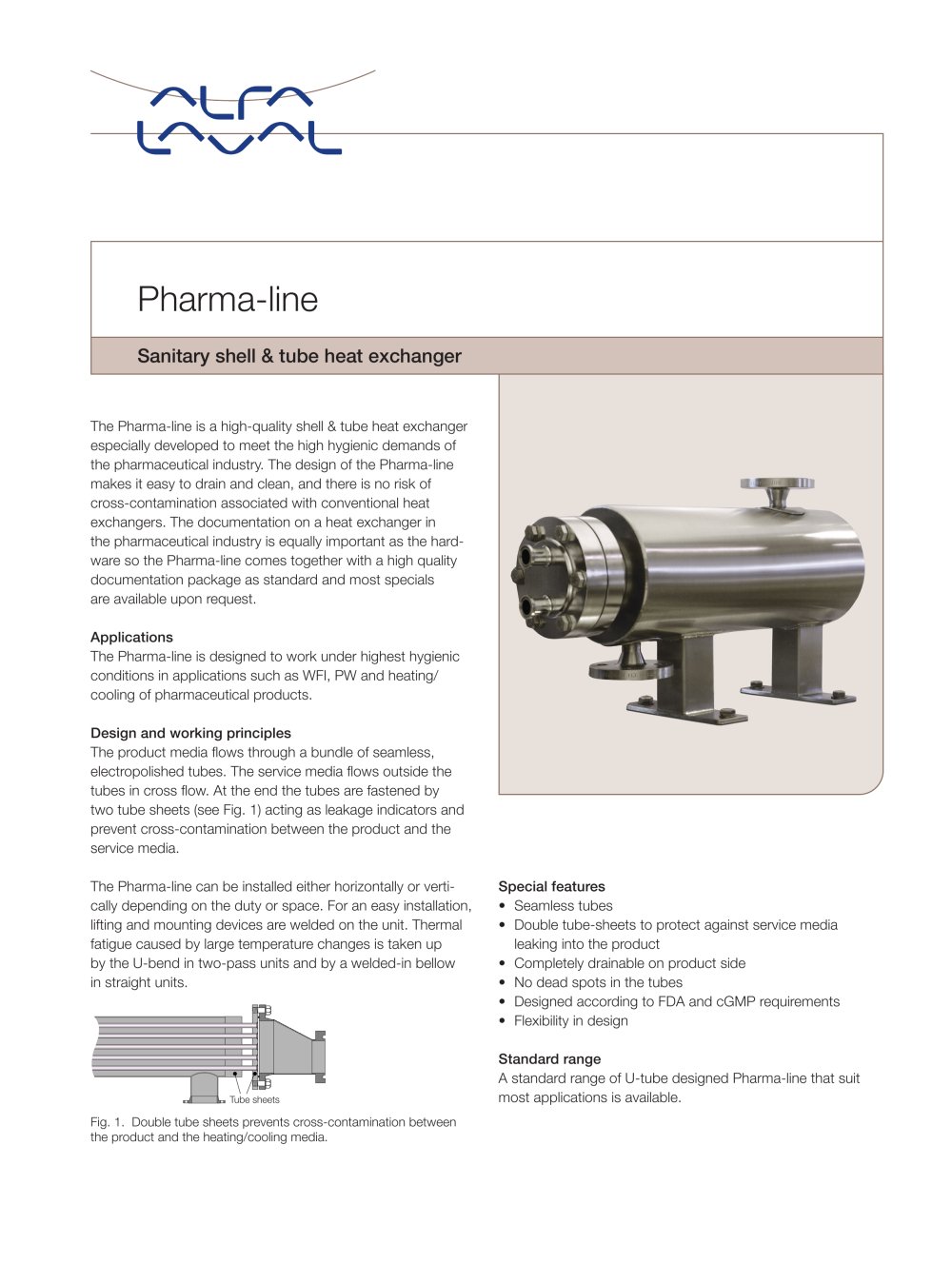

The Pharma-line is a high-quality shell & tube heat exchanger especially developed to meet the high hygienic demands of the pharmaceutical industry. The design of the Pharma-line makes it easy to drain and clean, and there is no risk of cross-contamination associated with conventional heat exchangers. The documentation on a heat exchanger in the pharmaceutical industry is equally important as the hardware so the Pharma-line comes together with a high quality documentation package as standard and most specials are available upon request. Applications The Pharma-line is designed to work under highest hygienic conditions in applications such as WFI, PW and heating/ cooling of pharmaceutical products. Design and working principles The product media flows through a bundle of seamless, electropolished tubes. The service media flows outside the tubes in cross flow. At the end the tubes are fastened by two tube sheets (see Fig. 1) acting as leakage indicators and prevent cross-contamination between the product and the service media. The Pharma-line can be installed either horizontally or vertically depending on the duty or space. For an easy installation, lifting and mounting devices are welded on the unit. Thermal fatigue caused by large temperature changes is taken up by the U-bend in two-pass units and by a welded-in bellow in straight units. Special features • Seamless tubes • Double tube-sheets to protect against service media leaking into the product • Completely drainable on product side • No dead spots in the tubes • Designed according to FDA and cGMP requirements • Flexibility in design Standard range A standard range of U-tube designed Pharma-line that suit most applications is available. Pharma-line Sanitary shell & tube heat exchanger Fig. 1. Double tube sheets prevents cross-contamination between the product and the heating/cooling media. Tube sheets
Open the catalog to page 1How to contact Alfa Laval Contact details for all countries are continually updated on our website. Please visit www.alfalaval.com to access the information direct. PLS00060EN 0710 Type No of Tube OD Shell OD A B C D U-tubes (mm) (mm) (mm) (mm) (mm) (mm) 8-7-1 7 8 88,9 800 1200 190 860 8-7-2 7 8 88,9 1800 2200 190 1860 8-7-3 7 8 88,9 2800 3200 190 2860 8-11-1 11 8 101,6 800 1200 190 860 8-11-2 11 8 101,6 1800 2200 190 1860 8-11-3 11 8 101,6 2800 3200 190 2860 8-19-1 19 8 114,3 800 1200 200 860 8-19-2 19 8 114,3 1800 2200 200 1860 8-19-3 19 8 114,3 2800 3200 200 2860 10-11-1 11 10 114,3 800...
