MX25 - Plate heat exchanger
1 /2Pages
MX25 - Plate heat exchanger
1 /2Pages
Catalog excerpts

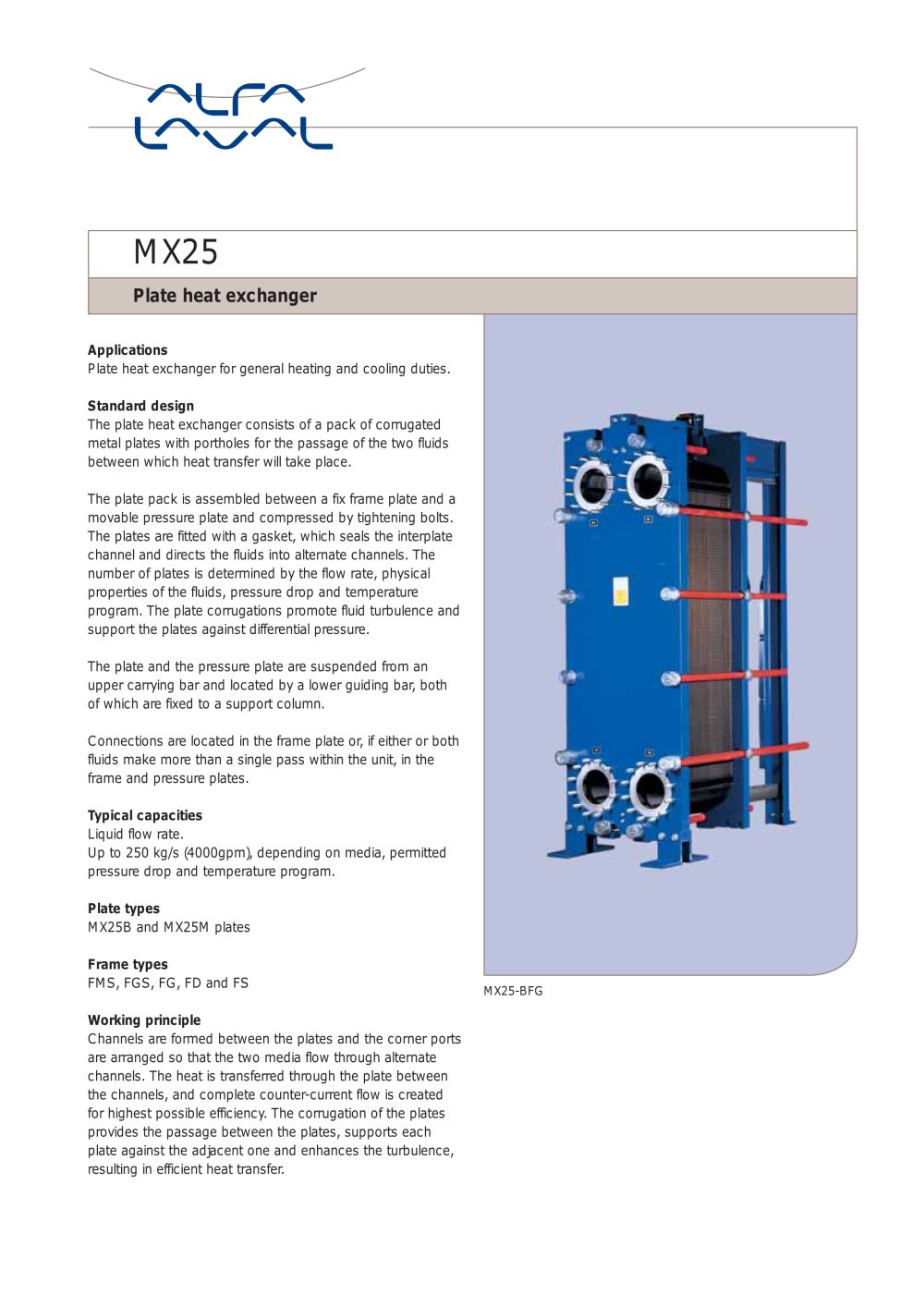

Applications Plate heat exchanger for general heating and cooling duties. Standard design The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket, which seals the interplate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates. Typical capacities Liquid flow rate. Up to 250 kg/s (4000gpm), depending on media, permitted pressure drop and temperature program. Plate types MX25B and MX25M plates Frame types FMS, FGS, FG, FD and FS Working principle Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer. MX25-BFG Plate heat exchanger MX25
Open the catalog to page 1
How to contact Alfa Laval Contact details for all countries are continually updated on our website. Please visit www.alfalaval.com to access the information direct. PCT00038EN 0701 STANDARD MATERIALS Frame plate Mild steel, Epoxy painted Nozzles Carbon steel Metal lined: Stainless steel, Titanium Rubber lined: Nitrile, EPDM Plates Stainless Steel AISI 304, AISI316 or Titanium Gaskets Nitrile or EPDM TECHNICAL DATA Pressure vessel codes PED, ASME, pvcALS™ Mechanical design pressure (g) / temperature FMS PED, pvcALS™ 1.0 MPa / 180°C FGS PED, pvcALS™ 1.6 MPa / 180°C FGS ASME 150 psig / 350°F FG...
