HRC - Banana ripening cooler – Tarp system

HRC - Banana ripening cooler – Tarp system

Product catalog summary

General Information & Application
Helpman HRC banana ripening coolers are specifically designed for use in TARP system banana ripening rooms. They are optimized for air-on temperatures of 14.0 °C and air-off temperatures of 13 °C, with an evaporating temperature of 7 °C. These coolers ensure even temperature distribution, promoting uniform ripening of bananas.

Specifications

Evaporating Temperature: 7 °C (optimized)
Refrigerants: Compatible with all H(C)FC, brine, CO2
Capacities (SC2): Ranges from 12 to 29 kW
Banana Rooms: Suitable for 8 to 28 pallets

Standard Configuration

Finned Coil: Cu tubing ø 5/8”, tube pitch 50 x 50 mm square, corrugated Alu-fins
Fans: Draw-through fans with different specifications for HRC 08/12 and HRC 18/24
Corrosion Resistant Casing: Aluminium/Sendzimir, white epoxy coated (RAL 9003)
Hinged Driptray and Schrader Valve for testing
Suitable for dry expansion or pumped system
Installation: Delivered in mounting position, can be installed using a forklift

Testing

Design Pressure: 33 bar, higher pressures available on request
Leak Testing: Each heat exchanger is leak tested with dry air and supplied with a nitrogen pre-charge
Brine Coolers: Tested at 6 bar

Benefits

Application-based air cooler design
Full control over the ripening process for perfect product quality
Heavy-duty coil & casing materials for long operational life
Reliable performance, Eurovent certified
Easy installation and energy efficiency
Low total cost of ownership
Two-year product guarantee

Contact Information
For up-to-date contact details for all countries, visit Alfa Laval's website at www.alfalaval.com.

Note
Alfa Laval reserves the right to change specifications without prior notification.

Catalog excerpts

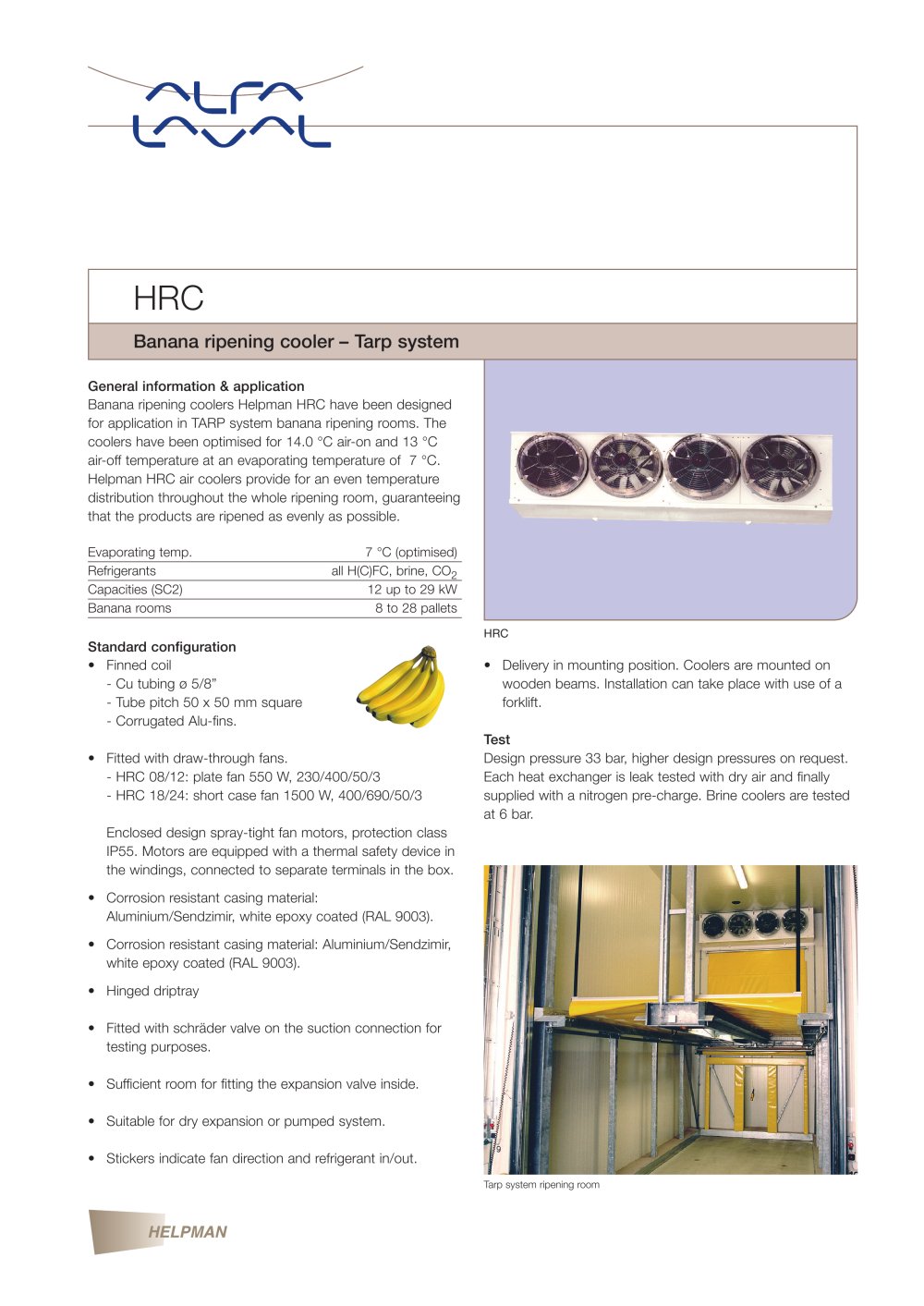

HRC - Banana ripening cooler – Tarp system -1

General information & application Banana ripening coolers Helpman HRC have been designed for application in TARP system banana ripening rooms. The coolers have been optimised for 14.0 °C air-on and 13 °C air-off temperature at an evaporating temperature of 7 °C. Helpman HRC air coolers provide for an even temperature distribution throughout the whole ripening room, guaranteeing that the products are ripened as evenly as possible. Evaporating temp. 7 °C (optimised) Refrigerants all H(C)FC, brine, CO2 Capacities (SC2) 12 up to 29 kW Banana rooms 8 to 28 pallets Standard configuration • Finned coil - Cu tubing ø 5/8” - Tube pitch 50 x 50 mm square - Corrugated Alu-fins. • Fitted with draw-through fans. - HRC 08/12: plate fan 550 W, 230/400/50/3 - HRC 18/24: short case fan 1500 W, 400/690/50/3 Enclosed design spray-tight fan motors, protection class IP55. Motors are equipped with a thermal safety device in the windings, connected to separate terminals in the box. • Corrosion resistant casing material: Aluminium/Sendzimir, white epoxy coated (RAL 9003). • Corrosion resistant casing material: Aluminium/Sendzimir, white epoxy coated (RAL 9003). • Hinged driptray • Fitted with schräder valve on the suction connection for testing purposes. • Sufficient room for fitting the expansion valve inside. • Suitable for dry expansion or pumped system. • Stickers indicate fan direction and refrigerant in/out. • Delivery in mounting position. Coolers are mounted on wooden beams. Installation can take place with use of a forklift. Test Design pressure 33 bar, higher design pressures on request. Each heat exchanger is leak tested with dry air and finally supplied with a nitrogen pre-charge. Brine coolers are tested at 6 bar. HRC Banana ripening cooler – Tarp system HRC Tarp system ripening room

Open the catalog to page 1

HRC - Banana ripening cooler – Tarp system -2

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00169EN 0802 Alfa Laval reserves the right to change specification without prior notification. Benefits • Application based air cooler design • Full control over the ripening process resulting in perfect product quality. • Heavy duty coil & casing materials, resulting in a long operational product life. • Reliable performance, Eurovent certified. • Easy-install. • Energy efficient. • Low total cost of ownership. • Two-year product guarantee. * Adjustment...

Open the catalog to page 2
