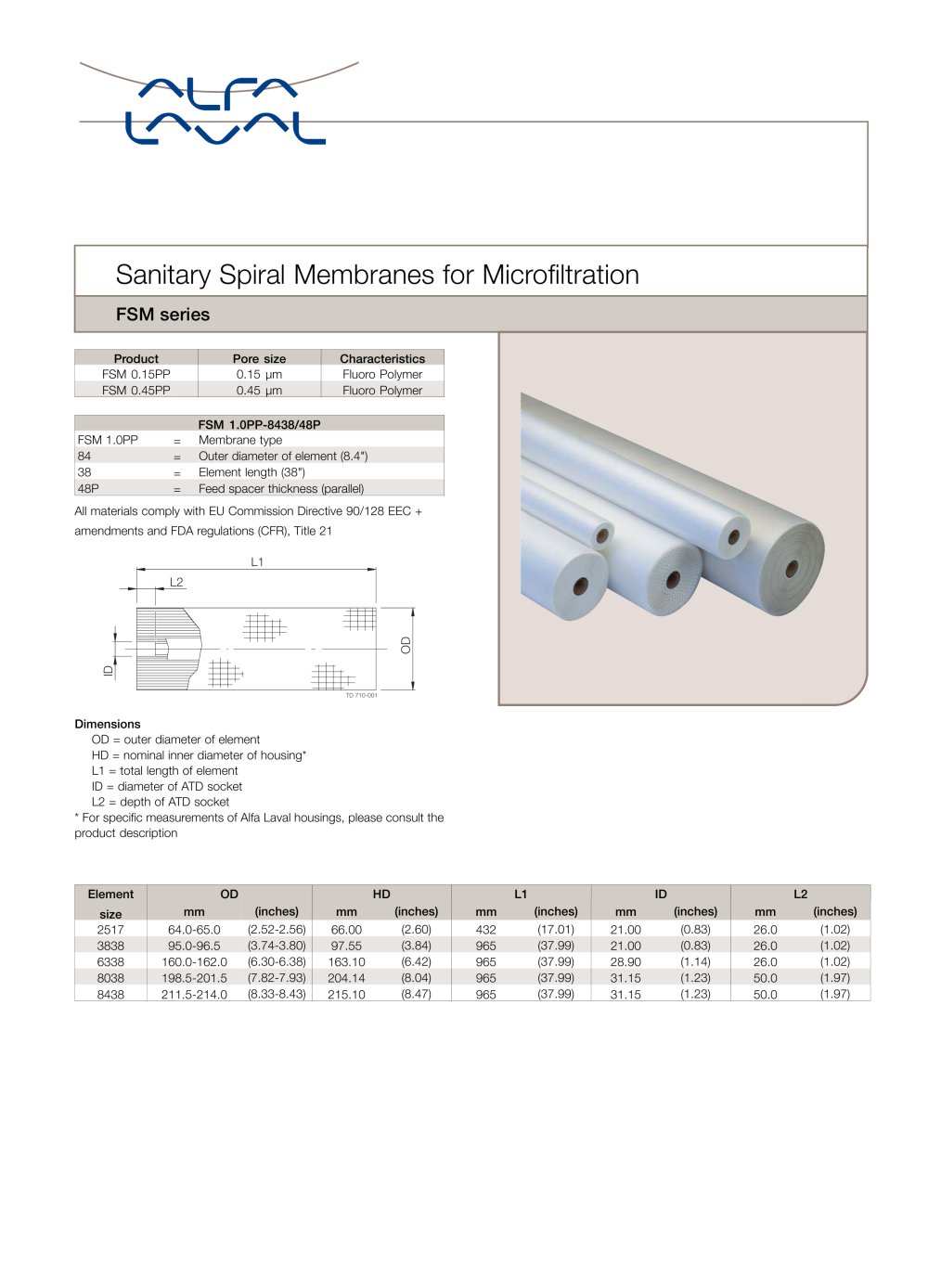

. kySanitary Spiral Membranes for Microfiltration ky FSM series . Product Pore size Characteristics FSM 0.15PP 0.15 ìm Fluoro Polymer FSM 0.45PP 0.45 ìm Fluoro Polymer FSM 1.0PP-8438/48P FSM 1.0PP = Membrane type 84 = Outer diameter of element (8.4") 38 = Element length (38") 48P = Feed spacer thickness (parallel) All materials comply with EU Commission Directive 90/128 EEC + amendments and FDA regulations (CFR), Title 21 L1 L2 ID OD TD 710-001 Dimensions OD = outer diameter of element HD = nominal inner diameter of housing* L1 = total length of element ID = diameter of ATD socket L2 = depth of ATD socket * For specific measurements of Alfa Laval housings, please consult the product description . Element OD HD L1 ID L2 size mm (inches) mm (inches) mm (inches) mm (inches) mm (inches) 2517 64.0-65.0 (2.52-2.56) 66.00 (2.60) 432 (17.01) 21.00 (0.83) 26.0 (1.02) 3838 95.0-96.5 (3.74-3.80) 97.55 (3.84) 965 (37.99) 21.00 (0.83) 26.0 (1.02) 6338 160.0-162.0 (6.30-6.38) 163.10 (6.42) 965 (37.99) 28.90 (1.14) 26.0 (1.02) 8038 198.5-201.5 (7.82-7.93) 204.14 (8.04) 965 (37.99) 31.15 (1.23) 50.0 (1.97) 8438 211.5-214.0 (8.33-8.43) 215.10 (8.47) 965 (37.99) 31.15 (1.23) 50.0 (1.97)
Open the catalog to page 1
Element configuration Outer diameter 2.5" 3.8" 3.9" 8.0" 8.4" Length 17" 38" 38" 38" 38" Spacer size (mil) 48 48 48 48 48 - 80 80 80 80 Typical cross-flow m3/h* (gpm)* and max. pressure drop bar (psi) at cP 1 Outer diameter 2.5" 3.8" **6.3" Spacer size m3/h bar (gpm) (psi) m3/h bar (gpm) (psi) m3/h bar (gpm) (psi) 48 mil 1-2 1.0 (4.4-9.0) (15) 5-10 1.0 (22.02-44.03) (15) 10-15 0.5 (44.03-66.1) (7) 80 mil - - - - 10-15 1.0 (44.03-66.1) (15) 15-20 0.5 (66.1-88.1) (7) Outer diameter **8.0" **8.4" Spacer size m3/h bar (gpm) (psi) m3/h bar (gpm) (psi) 48 mil 15-20 0.5 (66.1-88.1) (7) 15-25 0.5 (66.1-110.0)...
Open the catalog to page 2
. ESE00632EN 0801 The information contained herein is correct at the time of issue, but may be subject to change without prior notice. How to contact Alfa Laval Contact details for all countries are continually updated on our website. Please visit www.alfalaval.com to access the information direct.
