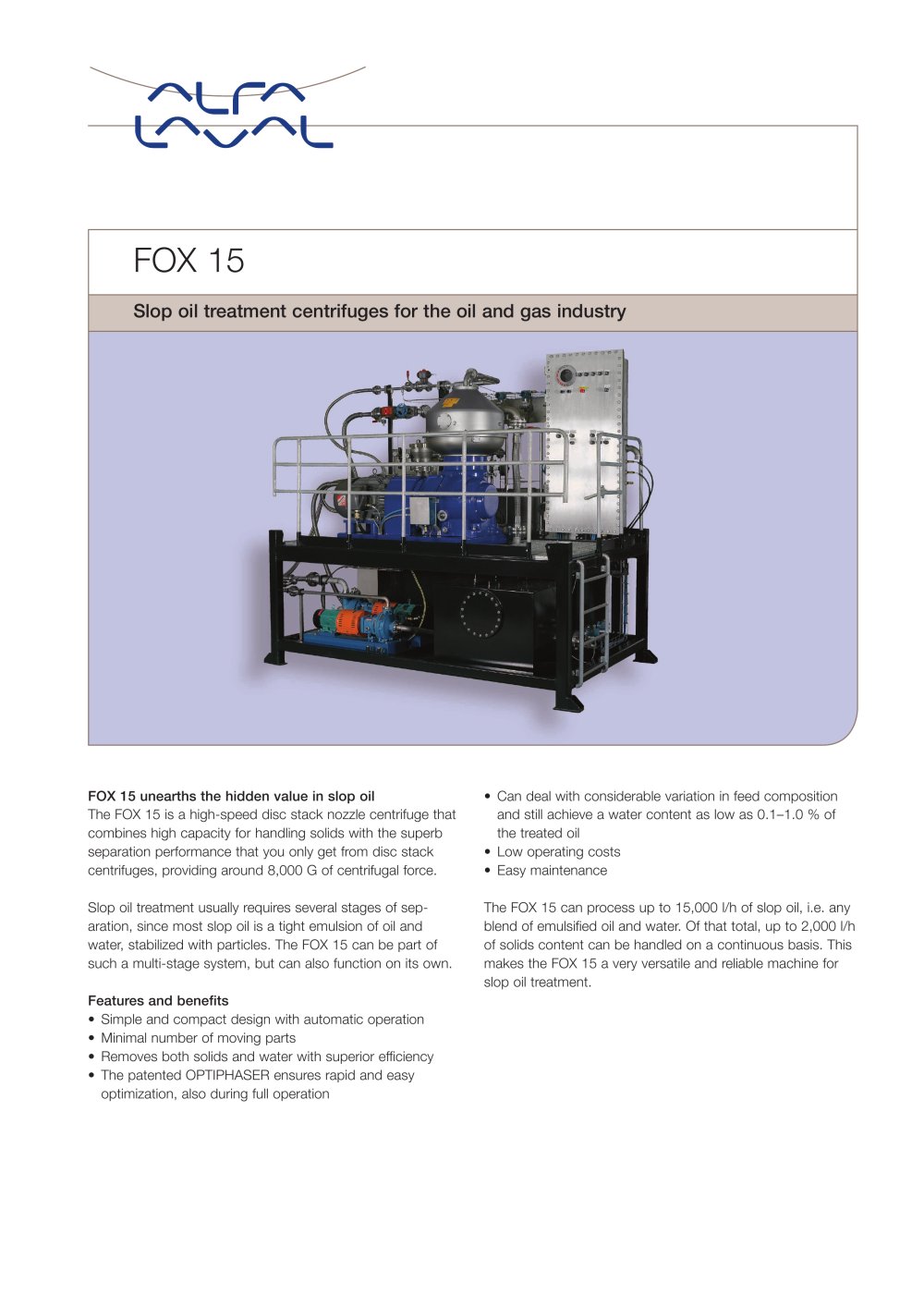

FOX 15 unearths the hidden value in slop oil The FOX 15 is a high-speed disc stack nozzle centrifuge that combines high capacity for handling solids with the superb separation performance that you only get from disc stack centrifuges, providing around 8,000 G of centrifugal force. Slop oil treatment usually requires several stages of separation, since most slop oil is a tight emulsion of oil and water, stabilized with particles. The FOX 15 can be part of such a multi-stage system, but can also function on its own. Features and benefits • Simple and compact design with automatic operation • Minimal number of moving parts • Removes both solids and water with superior efficiency • The patented OPTIPHASER ensures rapid and easy optimization, also during full operation FOX 15 • Can deal with considerable variation in feed composition and still achieve a water content as low as 0.1–1.0 % of the treated oil • Low operating costs • Easy maintenance The FOX 15 can process up to 15,000 l/h of slop oil, i.e. any blend of emulsified oil and water. Of that total, up to 2,000 l/h of solids content can be handled on a continuous basis. This makes the FOX 15 a very versatile and reliable machine for slop oil treatment. Slop oil treatment centrifuges for the oil and gas industry
Open the catalog to page 1Technical specifications Module length mm/inch 3310/130.3 Module width mm/inch 2000/78.7 Module height mm/inch 3127/123,1 Dry weight kg/lbs 4600/10143 Operating weight kg/lbs 5800/12789 Sound pressure level dB 77 Utilities Motor power kW 30/35 Instrument air l/h <60 Back-up water (during start/stop only) Litres 100/1000 Nitrogen (with inert gas blanketing option) l/h 150–800 How to contact Alfa Laval Contact details for all countries are continually updated on our website. Please visit www.alfalaval.com to access the information direct. PEE00021EN 0302 Alfa Laval reserves the right to...
