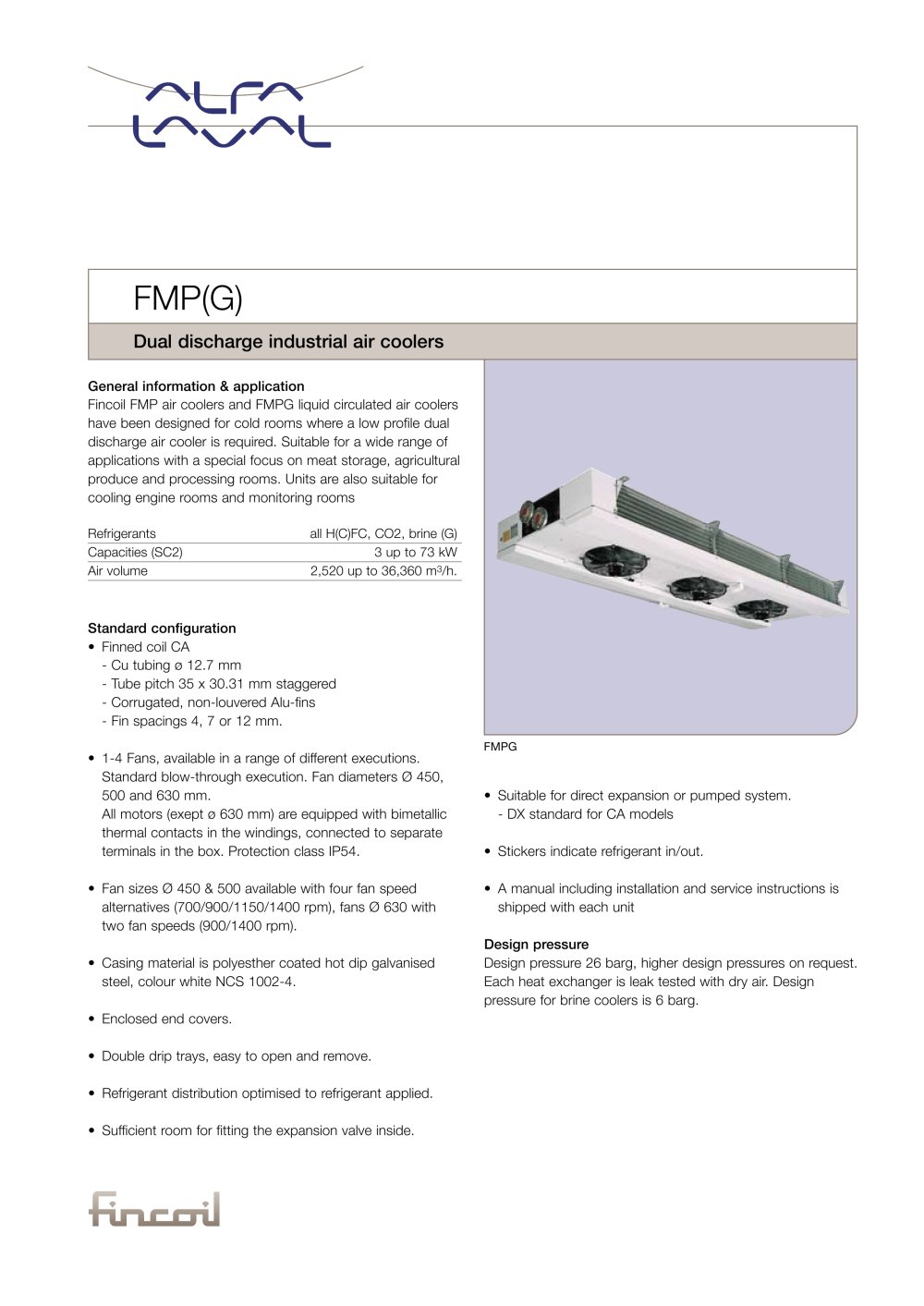

General information & application Fincoil FMP air coolers and FMPG liquid circulated air coolers have been designed for cold rooms where a low profile dual discharge air cooler is required. Suitable for a wide range of applications with a special focus on meat storage, agricultural produce and processing rooms. Units are also suitable for cooling engine rooms and monitoring rooms Refrigerants all H(C)FC, CO2, brine (G) Capacities (SC2) 3 up to 73 kW Air volume 2,520 up to 36,360 m3/h. Standard configuration • Finned coil CA - Cu tubing ø 12.7 mm - Tube pitch 35 x 30.31 mm staggered - Corrugated, non-louvered Alu-fins - Fin spacings 4, 7 or 12 mm. • 1-4 Fans, available in a range of different executions. Standard blow-through execution. Fan diameters Ø 450, 500 and 630 mm. All motors (exept ø 630 mm) are equipped with bimetallic thermal contacts in the windings, connected to separate terminals in the box. Protection class IP54. • Fan sizes Ø 450 & 500 available with four fan speed alternatives (700/900/1150/1400 rpm), fans Ø 630 with two fan speeds (900/1400 rpm). • Casing material is polyesther coated hot dip galvanised steel, colour white NCS 1002-4. • Enclosed end covers. • Double drip trays, easy to open and remove. • Refrigerant distribution optimised to refrigerant applied. • Sufficient room for fitting the expansion valve inside. • Suitable for direct expansion or pumped system. - DX standard for CA models • Stickers indicate refrigerant in/out. • A manual including installation and service instructions is shipped with each unit Design pressure Design pressure 26 barg, higher design pressures on request. Each heat exchanger is leak tested with dry air. Design pressure for brine coolers is 6 barg. FMP(G) Dual discharge industrial air coolers FMPG
Open the catalog to page 1How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00141EN 0811 Benefits • Low air velocities for use in processing rooms. • Heavy duty coil & casing materials, resulting in a long operational product life. • Reliable performance, Eurovent certified. • Easy-install. • Energy efficient. Low total cost of ownership. • Hygienic construction, easily cleanable • A manual including installation and service instructions is shipped with each unit • Advanced product selection software available. • One full...
