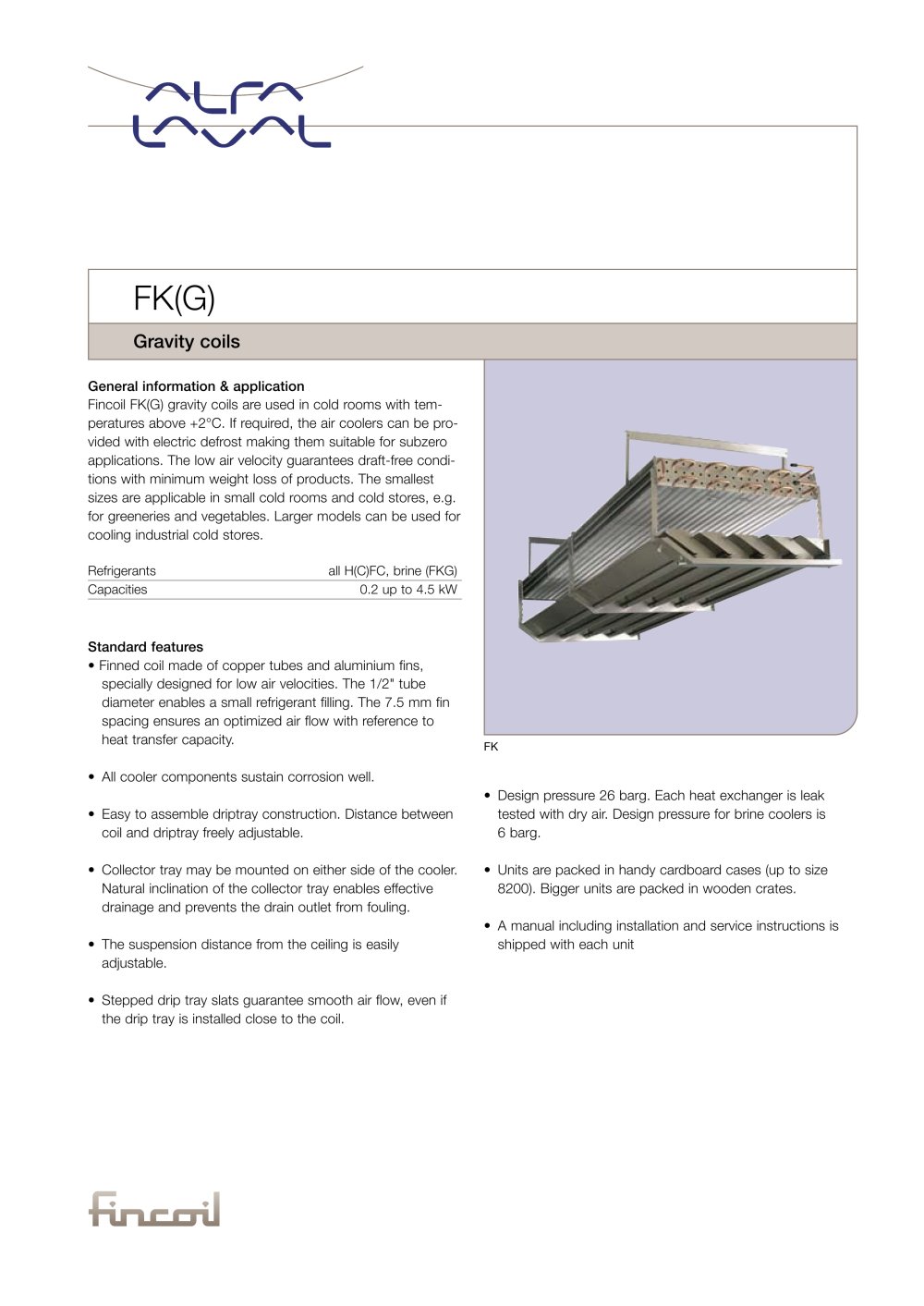

General information & application Fincoil FK(G) gravity coils are used in cold rooms with temperatures above +2°C. If required, the air coolers can be provided with electric defrost making them suitable for subzero applications. The low air velocity guarantees draft-free conditions with minimum weight loss of products. The smallest sizes are applicable in small cold rooms and cold stores, e.g. for greeneries and vegetables. Larger models can be used for cooling industrial cold stores. Refrigerants all H(C)FC, brine (FKG) Capacities 0.2 up to 4.5 kW Standard features • Finned coil made of copper tubes and aluminium fins, specially designed for low air velocities. The 1/2" tube diameter enables a small refrigerant filling. The 7.5 mm fin spacing ensures an optimized air flow with reference to heat transfer capacity. • All cooler components sustain corrosion well. • Easy to assemble driptray construction. Distance between coil and driptray freely adjustable. • Collector tray may be mounted on either side of the cooler. Natural inclination of the collector tray enables effective drainage and prevents the drain outlet from fouling. • The suspension distance from the ceiling is easily adjustable. • Stepped drip tray slats guarantee smooth air flow, even if the drip tray is installed close to the coil. • Design pressure 26 barg. Each heat exchanger is leak tested with dry air. Design pressure for brine coolers is 6 barg. • Units are packed in handy cardboard cases (up to size 8200). Bigger units are packed in wooden crates. • A manual including installation and service instructions is shipped with each unit FK(G) Gravity coils FK
