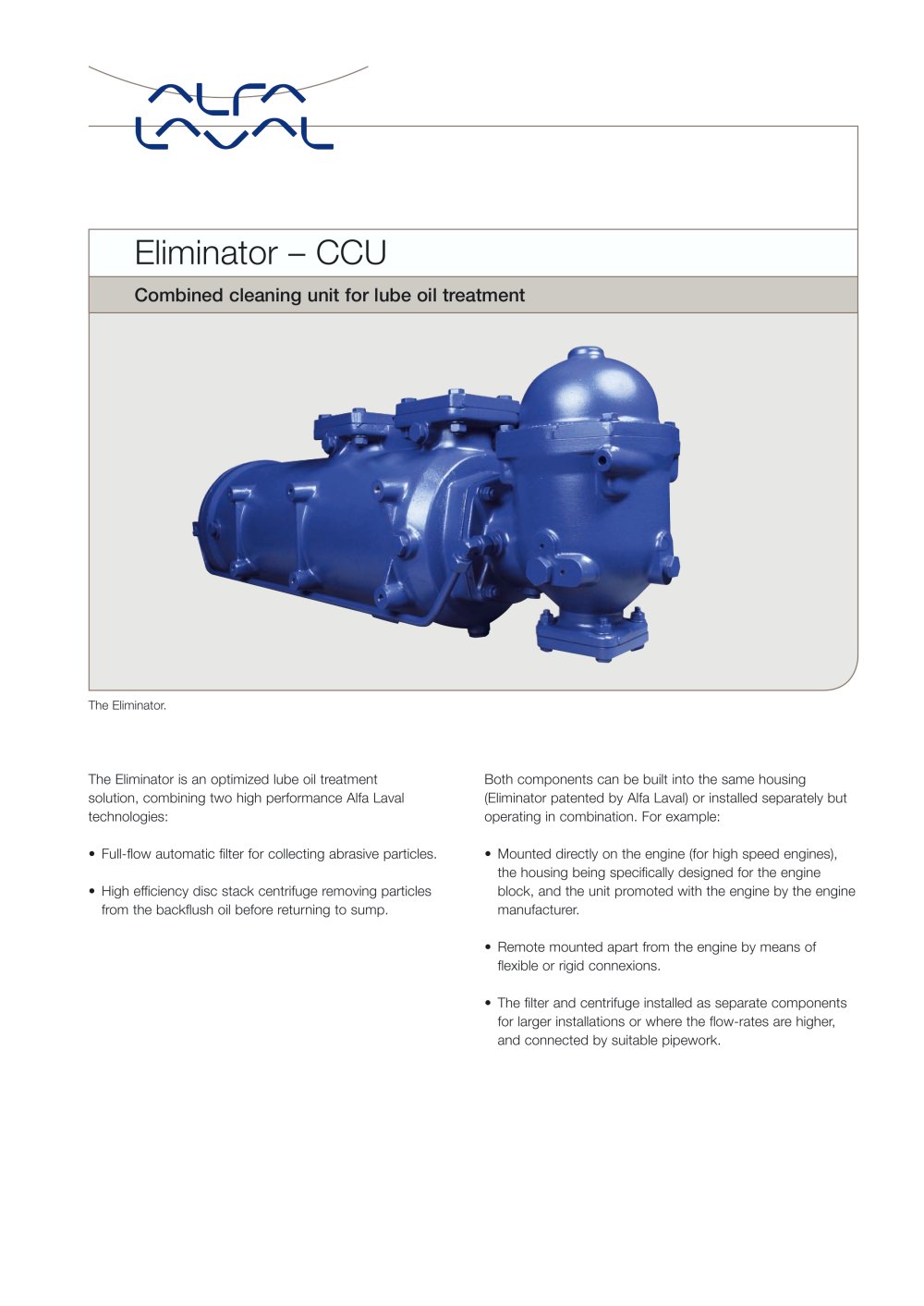

The Eliminator is an optimized lube oil treatment solution, combining two high performance Alfa Laval technologies: • Full-flow automatic filter for collecting abrasive particles. • High efficiency disc stack centrifuge removing particles from the backflush oil before returning to sump. Both components can be built into the same housing (Eliminator patented by Alfa Laval) or installed separately but operating in combination. For example: • Mounted directly on the engine (for high speed engines), the housing being specifically designed for the engine block, and the unit promoted with the engine by the engine manufacturer. • Remote mounted apart from the engine by means of flexible or rigid connexions. • The filter and centrifuge installed as separate components for larger installations or where the flow-rates are higher, and connected by suitable pipework. The Eliminator. Eliminator – CCU Combined cleaning unit for lube oil treatment

Advantages and benefits • Eliminates full-flow and bypass cartridge filters, and all the costs associated with the cartridge filters: purchasing, transport, handling, stocking, administration, oil losses, disposal of used cartridges. • Increased engine availibility – no engine stop for filter cartridge change. • No filter bypass – the engine has 100% protection. In case of failure of one engine component, the remaining engine parts are protected from any resulting contamination returning through the LO system, by the full flow filter. • Sealed lube oil circuit – the lube oil circuit remains sealed:...

Full-flow automatic filter (A) The automatic filter is made up of a number of filter disc elements, each element composed of two identical halves. The number of elements required is defined to meet each application. The stainless steel filtering mesh is contained inside two supporting mesh, giving an element with a long operating life-time. This is one key part to the low life-cycle cost of the unit. The rigid frame of each element is made in die-cast aluminium. This frame has a number of radial ribs separating each element into 8 or 12 sectors depending on the element size. The oil passes through...

Product range Model Q m3/h L × W × H (mm) 180-14 to 30 884 × 252 × 393 180-20 to 35 956 × 252 × 393 240-12 to 45 904 × 340 × 422 240-18 to 65 988 × 340 × 422 240-24 to 85 1072 × 340 × 422 240-30 to 90 1156 × 340 × 422 240-36 to 90 1240 × 340 × 422 Applications Products suitable for lube oil treatment for engines burning HFO, DO, distillate or gas fuels. Suitable for retro-fit installation. Technical documentation Complete information and documentation for the main components and the installation, operation and maintenance of the filter is contained in the Instruction Book that accompanies delivery...
