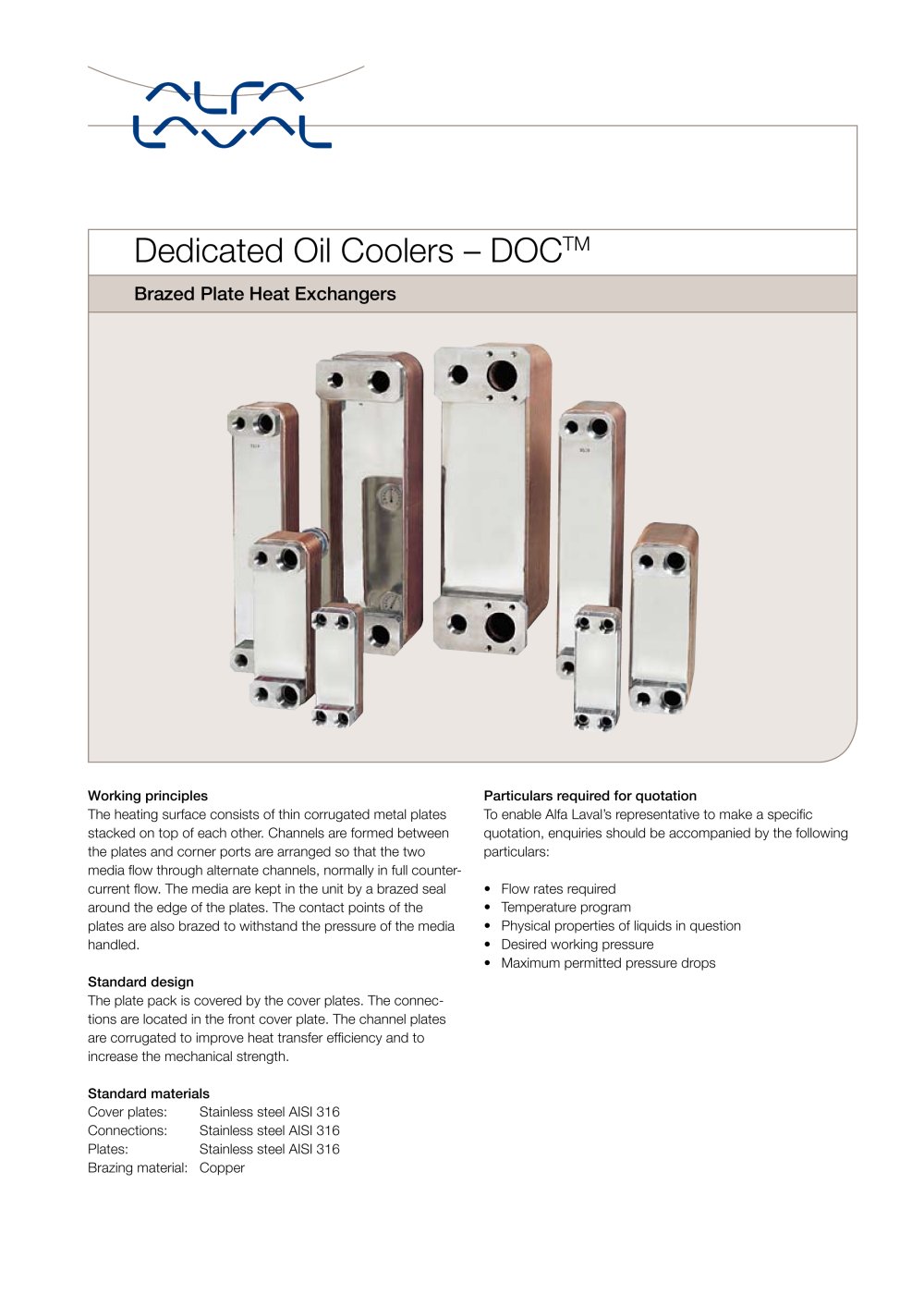

Brazed Plate Heat Exchangers Dedicated Oil Coolers – DOCTM Working principles The heating surface consists of thin corrugated metal plates stacked on top of each other. Channels are formed between the plates and corner ports are arranged so that the two media flow through alternate channels, normally in full countercurrent flow. The media are kept in the unit by a brazed seal around the edge of the plates. The contact points of the plates are also brazed to withstand the pressure of the media handled. Standard design The plate pack is covered by the cover plates. The connections are located in the front cover plate. The channel plates are corrugated to improve heat transfer efficiency and to increase the mechanical strength. Standard materials Cover plates: Stainless steel AISI 316 Connections: Stainless steel AISI 316 Plates: Stainless steel AISI 316 Brazing material: Copper Particulars required for quotation To enable Alfa Laval’s representative to make a specific quotation, enquiries should be accompanied by the following particulars: • Flow rates required • Temperature program • Physical properties of liquids in question • Desired working pressure • Maximum permitted pressure drops
