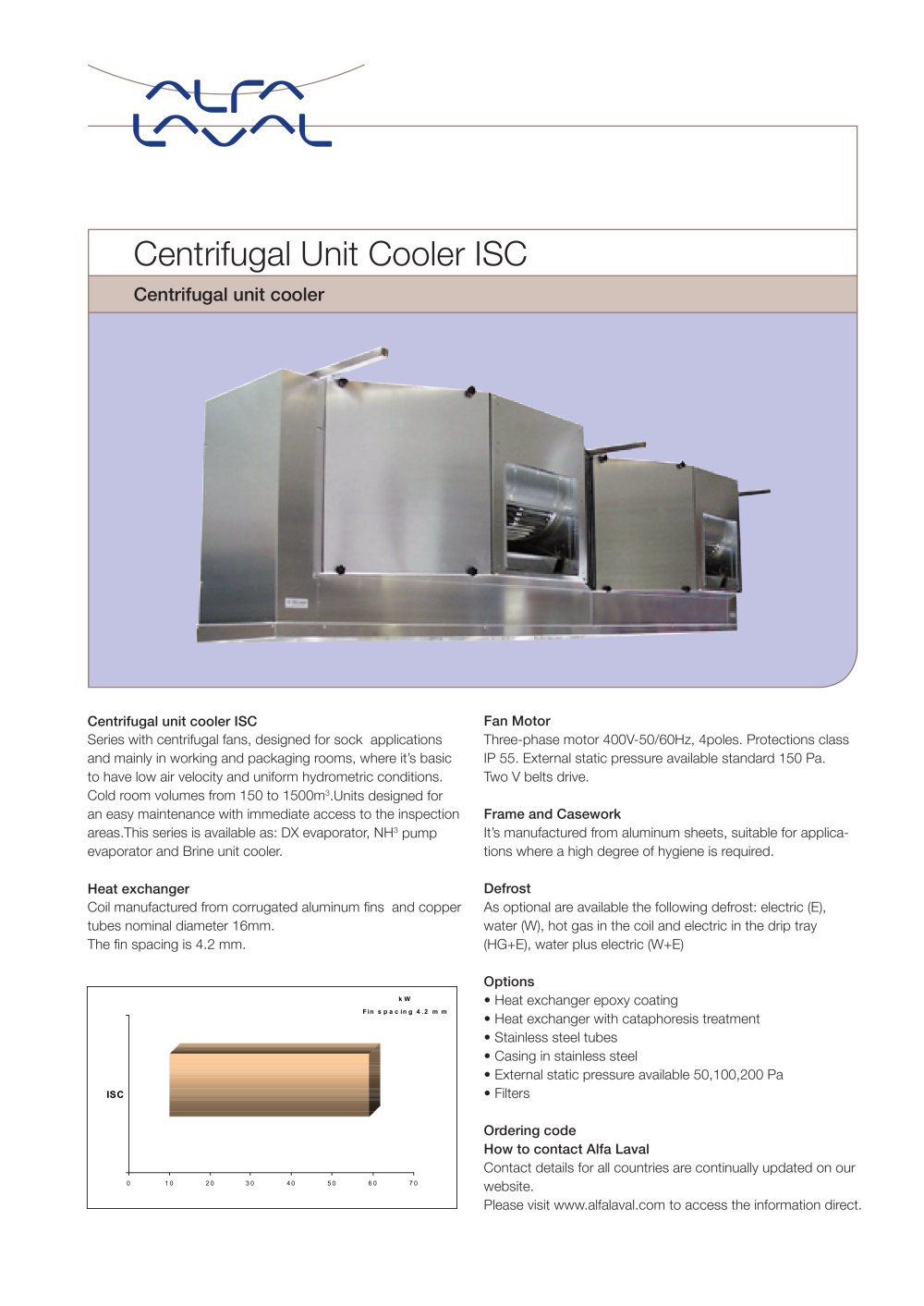

0 1 0 2 0 3 0 40 50 6 0 7 0 ISC k W Fin s p a c in g 4 .2 m m Centrifugal unit cooler Centrifugal Unit Cooler ISC Centrifugal unit cooler ISC Series with centrifugal fans, designed for sock applications and mainly in working and packaging rooms, where it’s basic to have low air velocity and uniform hydrometric conditions. Cold room volumes from 150 to 1500m3.Units designed for an easy maintenance with immediate access to the inspection areas.This series is available as: DX evaporator, NH3 pump evaporator and Brine unit cooler. Heat exchanger Coil manufactured from corrugated aluminum fins and copper tubes nominal diameter 16mm. The fin spacing is 4.2 mm. Fan Motor Three-phase motor 400V-50/60Hz, 4poles. Protections class IP 55. External static pressure available standard 150 Pa. Two V belts drive. Frame and Casework It’s manufactured from aluminum sheets, suitable for applications where a high degree of hygiene is required. Defrost As optional are available the following defrost: electric (E), water (W), hot gas in the coil and electric in the drip tray (HG+E), water plus electric (W+E) Options • Heat exchanger epoxy coating • Heat exchanger with cataphoresis treatment • Stainless steel tubes • Casing in stainless steel • External static pressure available 50,100,200 Pa • Filters Ordering code How to contact Alfa Laval Contact details for all countries are continually updated on our website. Please visit www.alfalaval.com to access the information direct.
Open the catalog to page 1ERC00219EN 0808 How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com Alfa Laval reserves the right to change specifications without prior notification. Model Dimensions (mm) A B C D E F G H P Q ISC-1412 ISC-1612 ISC-1912 2450 920 1010 750 2000 490 700 400 470 ISC-1416 ISC-1616 ISC-1916 2450 1160 1135 750 2000 585 950 480 560 ISC-2416 ISC-2616 ISC-2916 4450 1160 1135 750 4000 2000 585 950 480 560 H 18 50 D C G OUT IN P F 3" GAS 125 F A B 100 E Q H 18 50 D C G IN OUT Dx Evaporator Brine unit coolers ISC 2 6...
Open the catalog to page 2All Alfa Laval catalogs and technical brochures
-
