Alfa Laval
AlfaOliver 500

AlfaOliver 500

Product catalog summary

Overview
The Alfa Oliver 500 is an advanced olive oil extraction system designed to enhance the quality and distinctiveness of extra virgin olive oil. It integrates cutting-edge processing equipment into a compact, frame-mounted system that is easy to install and operate.

Customization and Modularity
The system is highly customizable, allowing producers to tailor the process to their specific needs. Options include different crushing systems (hammer crusher, disc crusher, or a combination with a depitting machine) and malaxing systems that can use traditional methods or inert gas to prevent oxidation. Malaxing cycle durations and temperatures can be individually set for each batch.

Technical Features
The Alfa Oliver 500 features a continuous processing line with high performance and reliability, leveraging Alfa Laval's extensive experience in olive oil extraction. The system includes a dry washer, decanter centrifuge, crusher/depitting machine, malaxer, and disk stack centrifuge.

Component Details

Washing System: A dry washer with a rotating drum removes debris without water, featuring a screw conveyor for loading olives.
Decanter Centrifuge: The Alfa Laval UVNX 904 model operates in two phases with adjustable differential speed and effective pomace evacuation.
Crusher/Depitting Machine: Enhances oil quality by preventing overheating and oxidation, with adjustable paste texture and optional kernel removal.
Malaxer: Ensures optimal oil extraction with controlled temperatures and independent sections for precise temperature and washing control.
Disk Stack Centrifuge: The Alfa Laval MMB 304 model provides efficient oil clarification with a vertical separator and auxiliary disk stack for faster cleaning.

Technical Specifications

Alfa Oliver 500 LIGHT Module: Power rating of 30.4 kW, absorbed power of 26.3 kW, and frame dimensions of 2.5 x 3 m.
Alfa Oliver 500 TOP Module: Power rating of 32.2 kW, absorbed power of 27.8 kW, and frame dimensions of 2.5 x 4 m.

Conclusion
The Alfa Oliver 500 system offers a sophisticated and efficient solution for olive oil producers seeking to innovate and differentiate their products. Its modular design and advanced technology ensure high-quality oil extraction with enhanced organoleptic properties.

Catalog excerpts

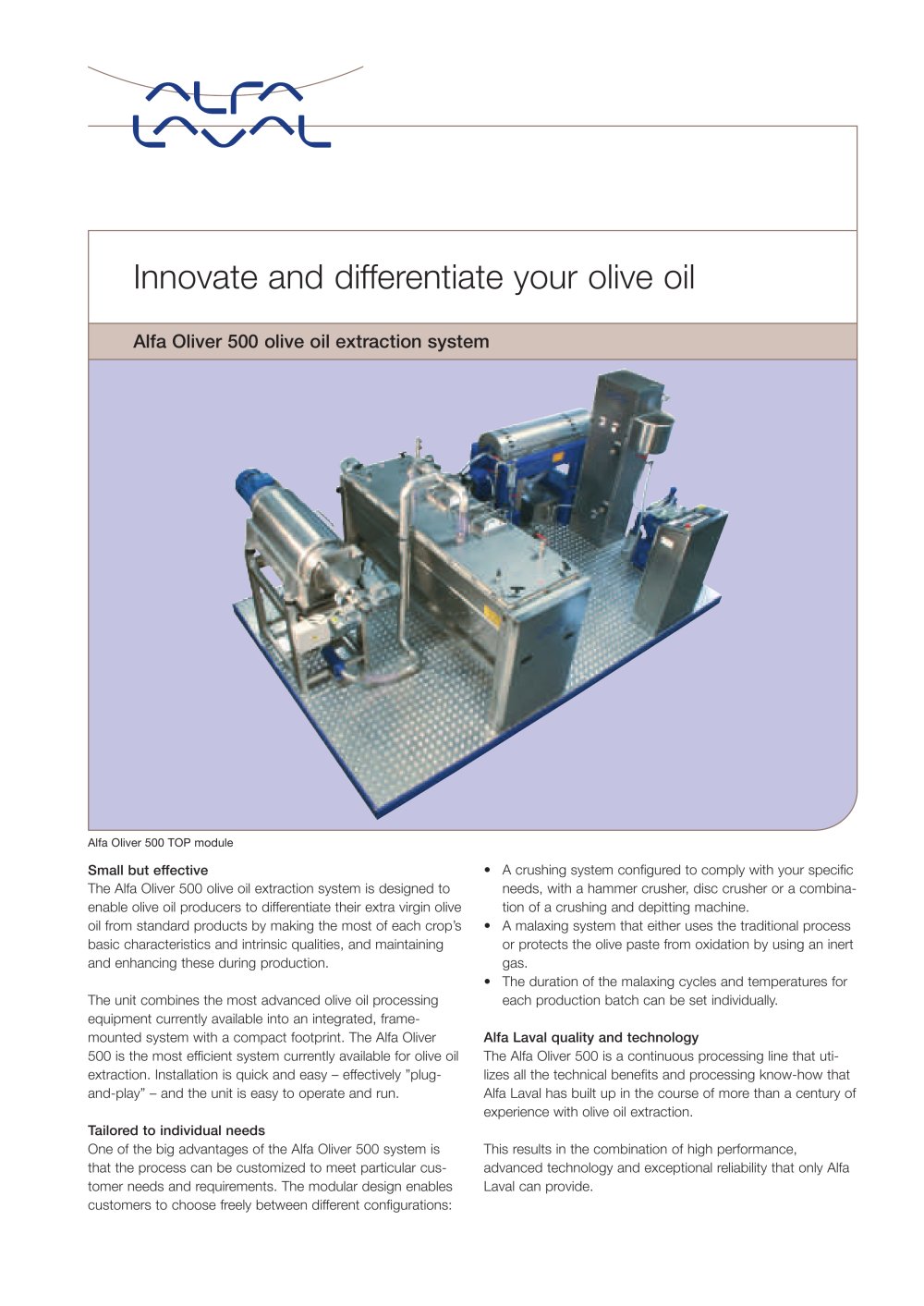

Small but effective The Alfa Oliver 500 olive oil extraction system is designed to enable olive oil producers to differentiate their extra virgin olive oil from standard products by making the most of each crop’s basic characteristics and intrinsic qualities, and maintaining and enhancing these during production. The unit combines the most advanced olive oil processing equipment currently available into an integrated, framemounted system with a compact footprint. The Alfa Oliver 500 is the most efficient system currently available for olive oil extraction. Installation is quick and easy – effectively ”plugand- play” – and the unit is easy to operate and run. Tailored to individual needs One of the big advantages of the Alfa Oliver 500 system is that the process can be customized to meet particular customer needs and requirements. The modular design enables customers to choose freely between different configurations: • A crushing system configured to comply with your specific needs, with a hammer crusher, disc crusher or a combination of a crushing and depitting machine. • A malaxing system that either uses the traditional process or protects the olive paste from oxidation by using an inert gas. • The duration of the malaxing cycles and temperatures for each production batch can be set individually. Alfa Laval quality and technology The Alfa Oliver 500 is a continuous processing line that utilizes all the technical benefits and processing know-how that Alfa Laval has built up in the course of more than a century of experience with olive oil extraction. This results in the combination of high performance, advanced technology and exceptional reliability that only Alfa Laval can provide. Innovate and differentiate your olive oil Alfa Oliver 500 olive oil extraction system Alfa Oliver 500 TOP module

Open the catalog to page 1

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com PFT00249EN 0709 Optimized design for each component The Alfa Oliver 500 is an advanced-technology extraction system that is engineered with a straightforward construction that is easy to access. This makes it easy to install virtually anywhere, and even in confined spaces. The system features the following modules: Washing system The dry washer consists of a rotating drum that removes leaves, twigs and soil from the olives, without using water. This dry washer...

Open the catalog to page 2
