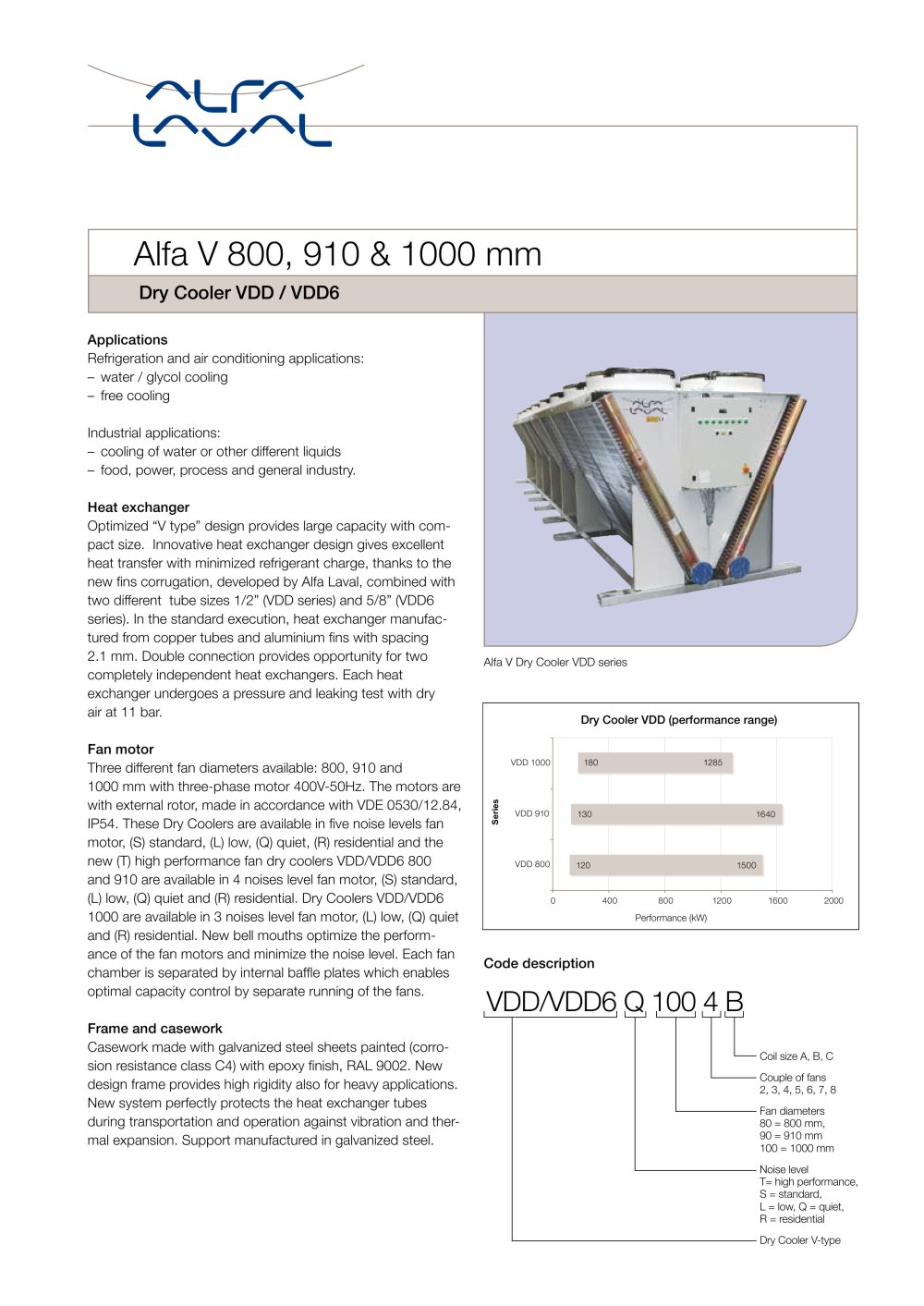

Dry Cooler VDD / VDD6 Alfa V 800, 910 & 1000 mm Applications Refrigeration and air conditioning applications: – water / glycol cooling – free cooling Industrial applications: – cooling of water or other different liquids – food, power, process and general industry. Heat exchanger Optimized “V type” design provides large capacity with compact size. Innovative heat exchanger design gives excellent heat transfer with minimized refrigerant charge, thanks to the new fins corrugation, developed by Alfa Laval, combined with two different tube sizes 1/2” (VDD series) and 5/8” (VDD6 series). In the standard execution, heat exchanger manufactured from copper tubes and aluminium fins with spacing 2.1 mm. Double connection provides opportunity for two completely independent heat exchangers. Each heat exchanger undergoes a pressure and leaking test with dry air at 11 bar. Fan motor Three different fan diameters available: 800, 910 and 1000 mm with three-phase motor 400V-50Hz. The motors are with external rotor, made in accordance with VDE 0530/12.84, IP54. These Dry Coolers are available in five noise levels fan motor, (S) standard, (L) low, (Q) quiet, (R) residential and the new (T) high performance fan dry coolers VDD/VDD6 800 and 910 are available in 4 noises level fan motor, (S) standard, (L) low, (Q) quiet and (R) residential. Dry Coolers VDD/VDD6 1000 are available in 3 noises level fan motor, (L) low, (Q) quiet and (R) residential. New bell mouths optimize the performance of the fan motors and minimize the noise level. Each fan chamber is separated by internal baffle plates which enables optimal capacity control by separate running of the fans. Frame and casework Casework made with galvanized steel sheets painted (corrosion resistance class C4) with epoxy finish, RAL 9002. New design frame provides high rigidity also for heavy applications. New system perfectly protects the heat exchanger tubes during transportation and operation against vibration and thermal expansion. Support manufactured in galvanized steel. Alfa V Dry Cooler VDD series Code description VDD/VDD6 Q 100 4 B Coil size A, B, C Couple of fans 2, 3, 4, 5, 6, 7, 8 Fan diameters 80 = 800 mm, 90 = 910 mm 100 = 1000 mm Noise level T= high performance, S = standard, L = low, Q = quiet, R = residential Dry Cooler V-type 120 180 130 1285 1640 1500 0 400 800 1200 1600 2000 VDD 800 VDD 910 VDD 1000 Series Dry Cooler VDD (performance range) Performance (kW)
Open the catalog to page 1L H W PCT00067EN 0703 All rights reserved for changes in specifications How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com Model Dimensions (mm) ...02 ...03 ...04 ...05 ...06 ...07 ...08 VDD/VDD6 800/910/1000 H 2280 2280 2280 2280 2280 2280 2280 L 2940 4250 5560 6870 8180 9490 10800 W 2230 2230 2230 2230 2230 2230 2230 Dimensions OPTIONS Non standard fin spacing – For heavy dusty environments Coil treatment – Corrosion resistance – Useful for aggressive environments Spray water device – Possibility to...
