Alfa Laval LabUnit M10

Alfa Laval LabUnit M10

Product catalog summary

Overview: The Alfa Laval LabUnit M10 is a compact cross-flow membrane filtration module with a membrane area of 336 cm². It is designed for ultrafiltration and microfiltration using Alfa Laval's flat sheet membranes. This unit is ideal for training, research and development, quality assurance, pilot plant process optimization, and scale-up.

Advantages:

Rapid and easy membrane exchange.
Transparent plate for cross-flow observation.
Simultaneous testing of two different membrane types.
Operates at high temperatures up to 80˚C.
Requires a small volume of test media.
Flow pattern mimics larger modules.
FDA-compliant components suitable for food and pharmaceutical applications.

Technical Specifications:

Dimensions: 500 x 380 x 435 mm
Weight: 30 kg
Dead volume: 500 ml
Feed inlet and retentate outlet: ID 14 mm hose or 19.2 x 1.7 mm pipe
Permeate outlets: ID 4 mm/OD 7.4 mm hoses
Cooling/heating water in/out: ID 6 mm hose or 1⁄4" nipple
Electric power: 3 x 400 V, 50/60 Hz, PE, 3 m cable

Components:

Module: DSS LabStak® M10
Cross-flow pump: ECO, 4-7 l/min., 7 bar, 0.37 kW, with built-in Hz-inverter (rpm control)
Heat exchanger: Alfa Laval
Valve: Gemü
Pressure gauges: Tempress, 2 pieces/0-7 bar

Contact Information: For up-to-date contact details for all countries, visit the Alfa Laval website at www.alfalaval.com.

Catalog excerpts

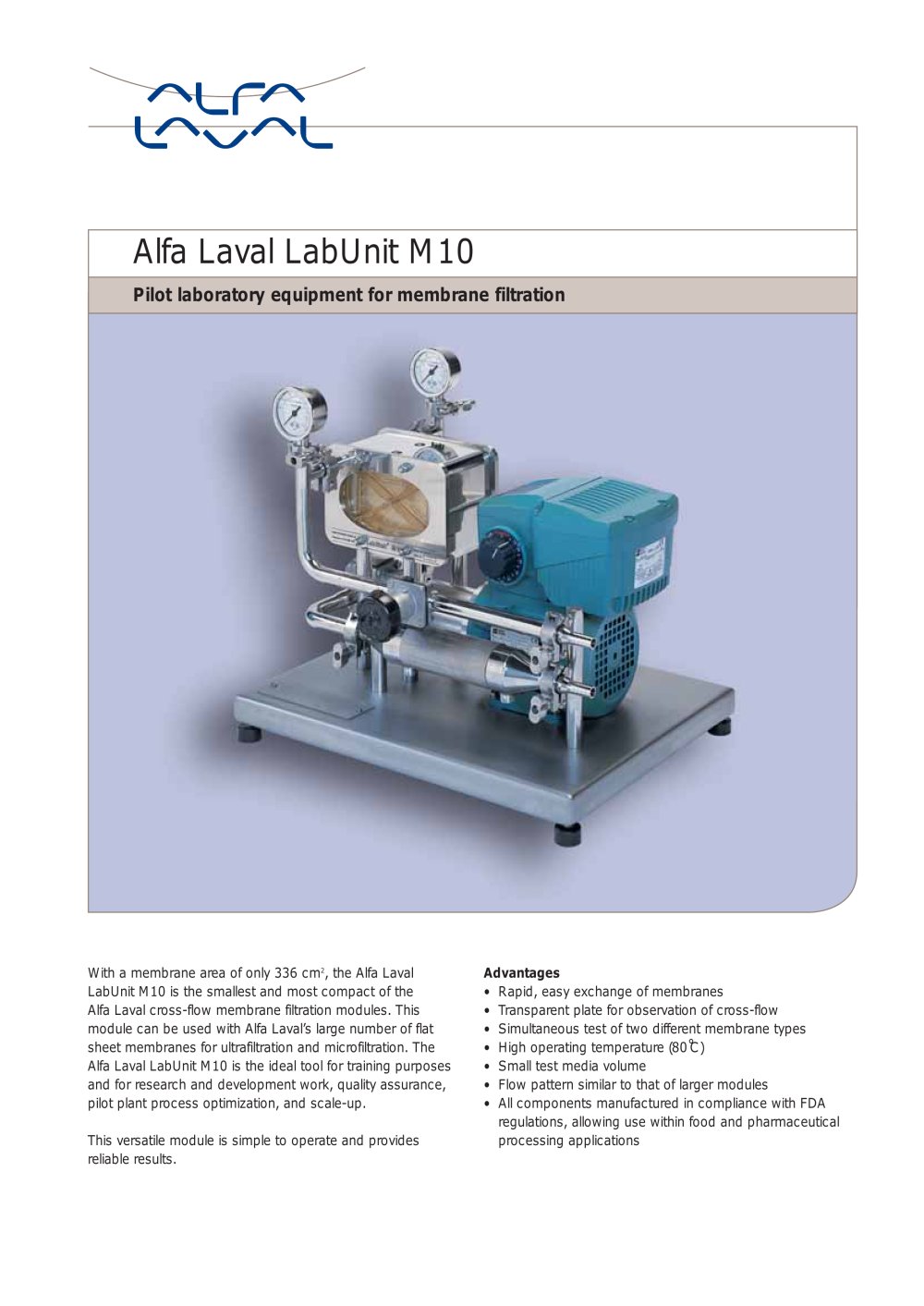

With a membrane area of only 336 cm2, the Alfa Laval LabUnit M10 is the smallest and most compact of the Alfa Laval cross-flow membrane filtration modules. This module can be used with Alfa Laval’s large number of flat sheet membranes for ultrafiltration and microfiltration. The Alfa Laval LabUnit M10 is the ideal tool for training purposes and for research and development work, quality assurance, pilot plant process optimization, and scale-up. This versatile module is simple to operate and provides reliable results. Pilot laboratory equipment for membrane filtration Alfa Laval LabUnit M10 Advantages • Rapid, easy exchange of membranes • Transparent plate for observation of cross-flow • Simultaneous test of two different membrane types • High operating temperature (80°C) • Small test media volume • Flow pattern similar to that of larger modules • All components manufactured in compliance with FDA regulations, allowing use within food and pharmaceutical processing applications

Open the catalog to page 1

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com PCM00035EN 0606 Alfa Laval reserves the right to change specifications without prior notification. Flow diagram of Alfa Laval LabUnit M10: Alfa Laval LabUnit M10 data Dimensions, l x w x h 500 x 380 x 435 mm Weight 30 kg Dead volume 500 ml Alfa Laval LabUnit M10 connections Feed inlet ID 14 mm hose or 19.2 x 1.7 mm pipe Retentate outlet ID 14 mm hose or 19.2 x 1.7 mm pipe Permeate outlets ID 4 mm/OD 7.4 mm hoses Cooling/heating water in/out ID 6 mm hose or...

Open the catalog to page 2
