ALDRUM Sludge Thickening System - Flocculation Reactor
1 /2Pages

Catalog excerpts

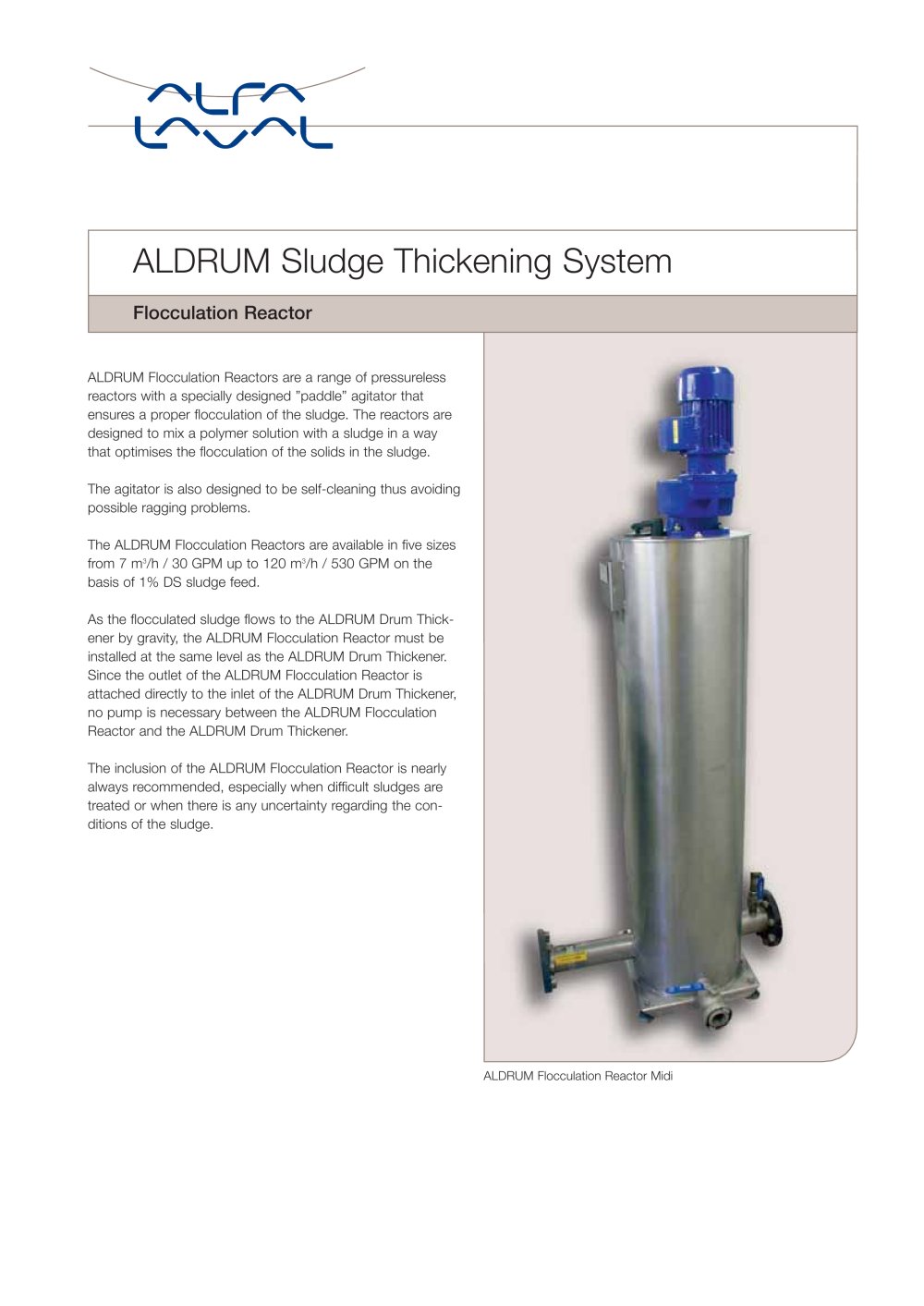

ALDRUM Sludge Thickening System Flocculation Reactor ALDRUM Flocculation Reactors are a range of pressureless reactors with a specially designed ”paddle” agitator that ensures a proper flocculation of the sludge. The reactors are designed to mix a polymer solution with a sludge in a way that optimises the flocculation of the solids in the sludge. The agitator is also designed to be self-cleaning thus avoiding possible ragging problems. The ALDRUM Flocculation Reactors are available in five sizes from 7 m3/h / 30 GPM up to 120 m3/h / 530 GPM on the basis of 1% DS sludge feed. As the flocculated sludge flows to the ALDRUM Drum Thickener by gravity, the ALDRUM Flocculation Reactor must be installed at the same level as the ALDRUM Drum Thickener. Since the outlet of the ALDRUM Flocculation Reactor is attached directly to the inlet of the ALDRUM Drum Thickener, no pump is necessary between the ALDRUM Flocculation Reactor and the ALDRUM Drum Thickener. The inclusion of the ALDRUM Flocculation Reactor is nearly always recommended, especially when difficult sludges are treated or when there is any uncertainty regarding the conditions of the sludge. ALDRUM Flocculation Reactor Midi

Open the catalog to page 1

ALDRUM Sludge Thickening System - Flocculation Reactor-2

How to contact Alfa Laval Contact details for all countries are continually updated on our website. Please visit www.alfalaval.com to access the information direct. PEE00084EN 0511 Materials Cover (AISI) 304* Tank (AISI) 304* Agitator (AISI) 304* Pipes (AISI) 304* Flanges (Symalit) Polypropylene *316 optional Mini Midi Maxi Mega Mega Duo Height 49"/1240 mm 72"/1820 mm 88"/2220 mm 110"/2775 mm 10"/2775 mm Width 29"/725 mm 32"/825 mm 43"/1100 mm 47"/1200 mm 55"/1400 mm Tank diameter 14"/350 mm 16"/400 mm 20"/500 mm 24"/600 mm 38"/975 mm Weight (dry) 132 lb./100 kg 187 lb./125 kg 242 lb./180 kg...
