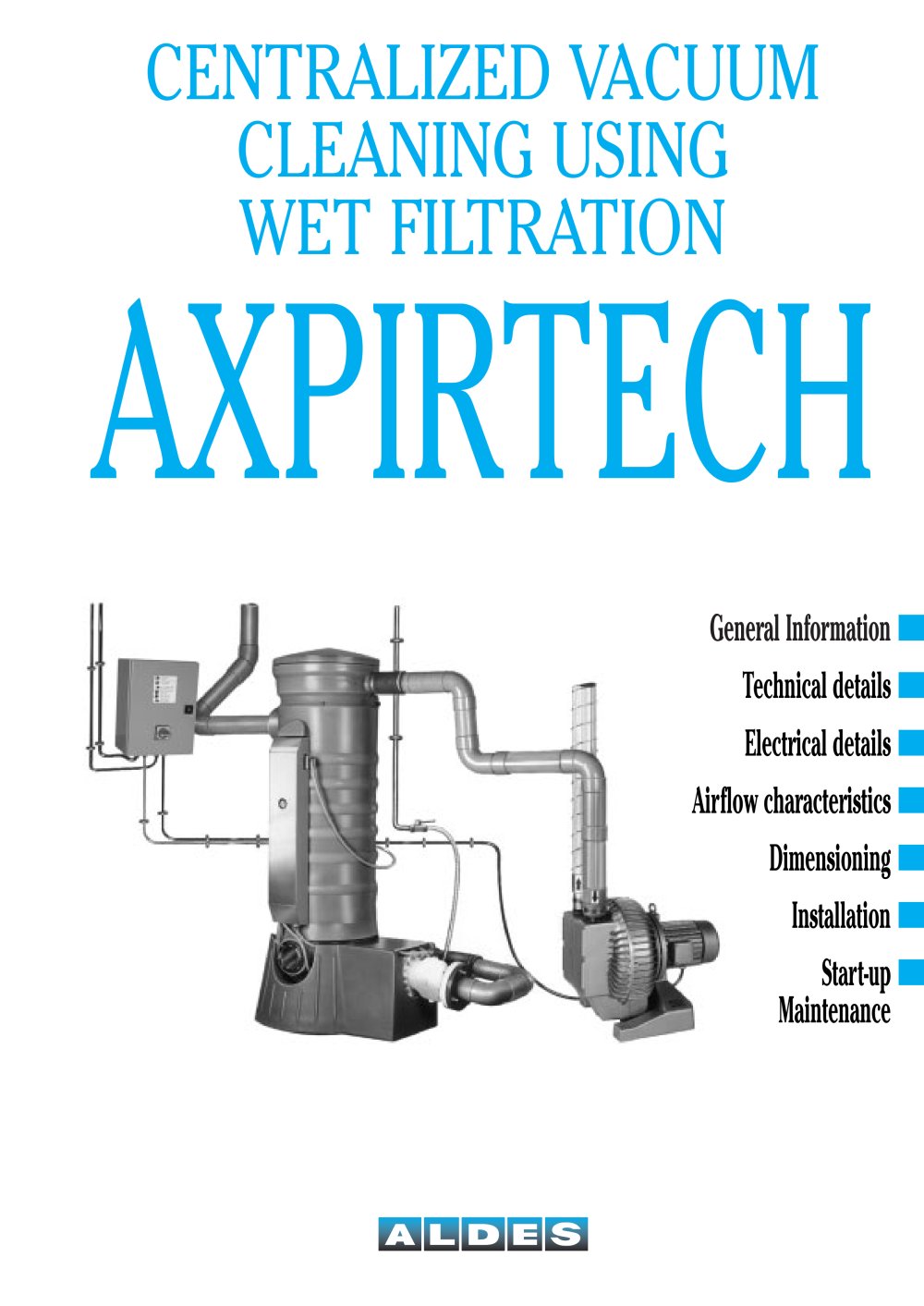

ENIrvAI jI/jEI J VACUU1V1 CLEANING USING WET FILTRATION XPIRTECH General Information ■ Technical dtails ■ Electrical dtails ■ Airflow characteristics ■ Dimensioning ■ Installation ■ Start-up Maintenance

General Information ■ PRINCIPLE Centralized vacuum cleaning in commercial and public sector pre-mises can appear to be similar to vacuum cleaning in a residential environment by the non-specific nature of the dust removed (household dust). Nevertheless, several particularities of the commercial and public sector environment lead us to think again about traditional solutions such as cylinder vacuum cleaners. Thus, the size of the premises concerned justifies the use of multiple vacuum cleaners, their accessories and associated storage areas; cleaning carried out by outside firms does not necessarily...

■ ADVANTAGES Adaptable to your needs : an Axpirtech installation can be dimensioned to comply with your working organization. Օ Adaptable to your environment : being modular, an Axpirtech installation integrates itself into the architecture of your pre-mises in order to ensure optimal functioning. Low noise level : the turbine, main source of noise in a vacuum cleaner, is located in a specific technical area and concentrates the noise there, far from the areas where the user is vacuu-ming. Օ Compatible with your activity : reduced handling of the clea-ning accessories (brushes, flexible hoses),...

General Information cuation phases by a hydrostatic valve fixed to the tank's body by a flange. A removable inspection window is integrated into the bottom of the tank in order to observe the washing zone. A whole series of sensors and solenoid valves fixed to the control plate along the length of the body of the tank and pro-tected by a protection cover, commands and ensures the safety of the various operating cycles. The water inlet connector © is also fixed to this plate. The water inlet pipe (14-12 mm 0) is connected to the water supply (20-27 mm or 3/4" connector). The turbine agitates the...

Wall connection range MOSACϙ (outer design inspired by the Mosac electrical socket range by Legrand) Wall vacuum inlet (code 110 70.307). Mounting bracket for straight or elbow bend connection (code 110 70.308). CEILVAC Range (ceiling mounted vacuum inlet - max. height from ground: 3 m) Օ CEILVAC white ABS plastic ceiling vacuum inlet with a 44mm 0 connection (code 110 70.319). CEILVAC vacuum inlet suspended ceiling fixing clamp (code 110 70.320). Օ CEILVAC vacuum inlet connector kit (code 110 70.321). FLOORVAC Range (floor mounted vacuum inlet - recommended for designed floor assemblies or...

Technical dtails SPACE REQUIREMENT FH 50-3 AND FH 50-5 Separator S5 Turbine A5 (x2) Turbine A7 CONTROL CABINET FH 34-1M, FH 34-1, FH 34-2 Central units FH 50-3, FH 50-5 Central units 300 )' 1 -m ■n 10 i ■ 1 * WEIGHT SEPARATORS TURBINES ELECTRICAL CABINET S3 S5 A1 A3 A4 A5 A7 FH 34 FH 50 60 kg 95 kg 25 kg 31 kg 50 kg 100 kg 62 kg 15 kg 17 kg 6

Airflow characteristics ■ AERAULICS CURVES FOR TURBINES 2500 2000 O LU E E a. 1500 1000 500 250 A1 A3 A4 A7 A5 (x2) 0 0 100 200 300 400 500 600 Airflow (m3/h) 700 800 900 1000 1100 Dimensioning Dimensioning is carried out in two stages: - To dtermine the number of simultaneous users and to select the central unit, - To plot the pipe network and dimension the conduit pipe sectors. ■ DETERMINATION OF THE NUMBER OF SIMULTANEOUS USERS Organization of the work is unique to each trade and each application. Nevertheless, in general we distinguish hotels from office buil魭dings because of the partitioning...

However, one must be realistic about the simultaneous use of the installation, taking a multiplication coefficient of 2. In our example, 200 rooms in all justifies 4 simultaneous users. This figure could nevertheless be adjusted depending on work habits and the number of floors over which all of the rooms are distributed. In this case, one operator per floor may be justified for reasons of efficiency, as well as for the number of simulta-neous users. Finally, the presence of reception rooms, conference rooms, restaurants and bars, that can be treated as office floors, enables us to complete the...

Installation Following the dimensioning of the installation, seal or fix the mourv ting brackets at the places defined on the installation drawing. Follow the plot of the installation in order to carry out the main pipe network of PVC tubes (not supplied) to the diameters taken from the dimensioning figures. CAUTION: 1. Any change in direction in the main network absolutely must be carried out using 45" elbow bends. 2. The connections of the various components for the main net* work will necessarily be sealed airtlght as well as the connections to the mounting brackets. The adjustment valve Is...

lentralized vacuum cleaning using wet filtration AXPIRTECH PRINCIPLE An Axpirtech installation is a centralized vacuum cleaning installation that can be dimensioned depending on the size of the premises to be cleaned, permits several operators to be working simultaneously, reduces handling to just the accessories, concentrates the noise of the operation as well as the dust in a common area, and regularly evacuates it automatically. An Axpirtech installation ensures four functions: 1 - dust capture, 2 - removal of the dust particles, 3 - separation/filtration of the particles by a wet filtration...
