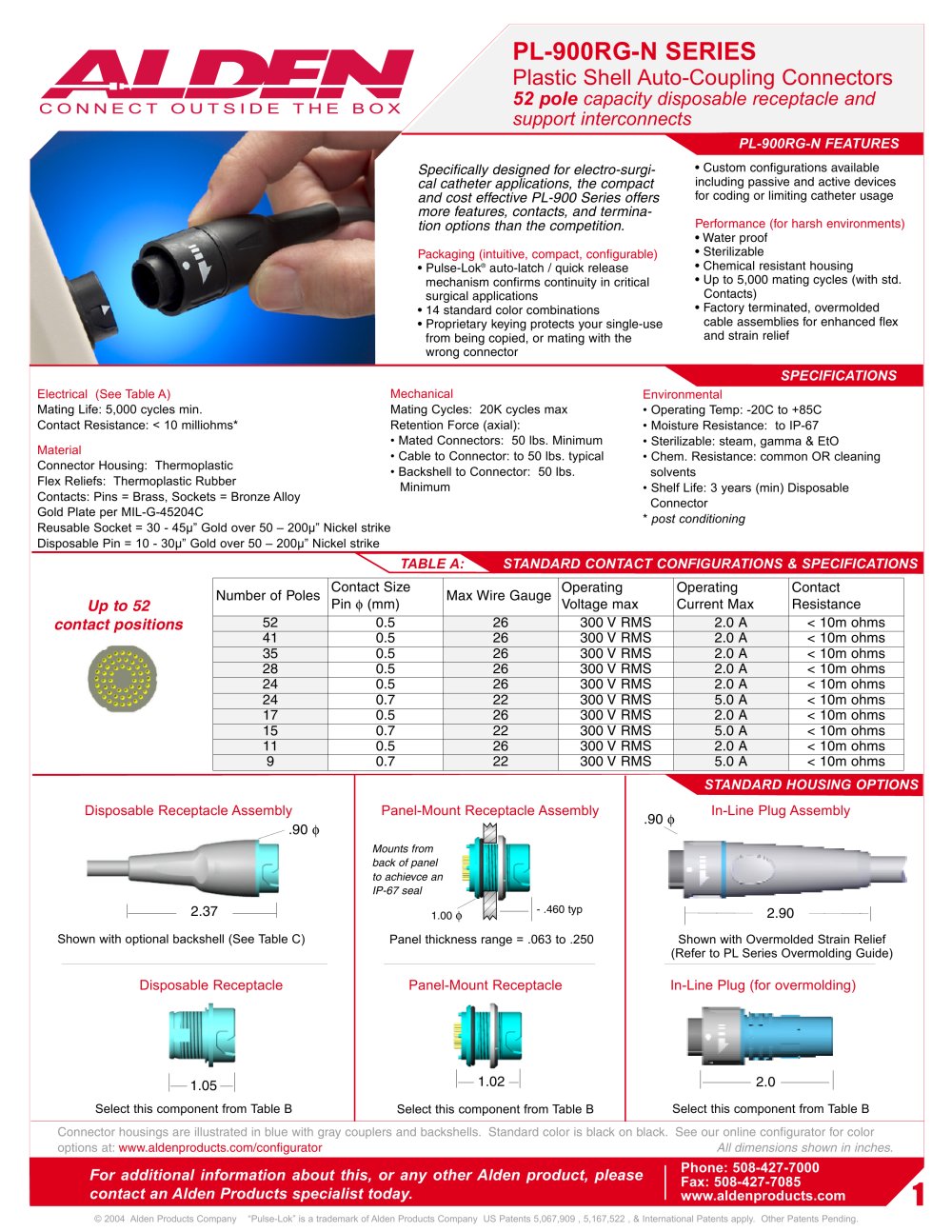

PL-900RG-N SERIES Medical Disposable Auto-Coupling Connectors

Product catalog summary

Overview: The PL-900RG-N Series is a line of plastic shell auto-coupling connectors designed for electro-surgical catheter applications. These connectors are compact, cost-effective, and offer a variety of features and configurations.

Key Features:

Pulse-Lok® auto-latch/quick release mechanism ensures continuity in critical surgical applications.
Available in 14 standard color combinations with proprietary keying to prevent incorrect mating.
Custom configurations available, including passive and active devices for coding or limiting catheter usage.

Performance Specifications:

Waterproof, sterilizable, and chemical-resistant housing.
Supports up to 5,000 mating cycles with standard contacts.
Factory terminated, overmolded cable assemblies for enhanced flex and strain relief.

Environmental Specifications:

Operating temperature range: -20°C to +85°C.
Moisture resistance: IP-67 rated.
Sterilizable by steam, gamma, and EtO methods.
Resistant to common OR cleaning solvents.
Shelf life of at least 3 years for disposable connectors.

Electrical Specifications:

Operating voltage: 300 V RMS.
Operating current: Up to 5.0 A depending on contact size.
Contact resistance: Less than 10 milliohms.

Mechanical Specifications:

Mating cycles: Up to 20,000 cycles max.
Retention force: 50 lbs minimum for mated connectors and cable to connector.

Material Specifications:

Connector housing made of thermoplastic.
Flex reliefs made of thermoplastic rubber.
Contacts: Pins are brass, sockets are bronze alloy, with gold plating per MIL-G-45204C.
