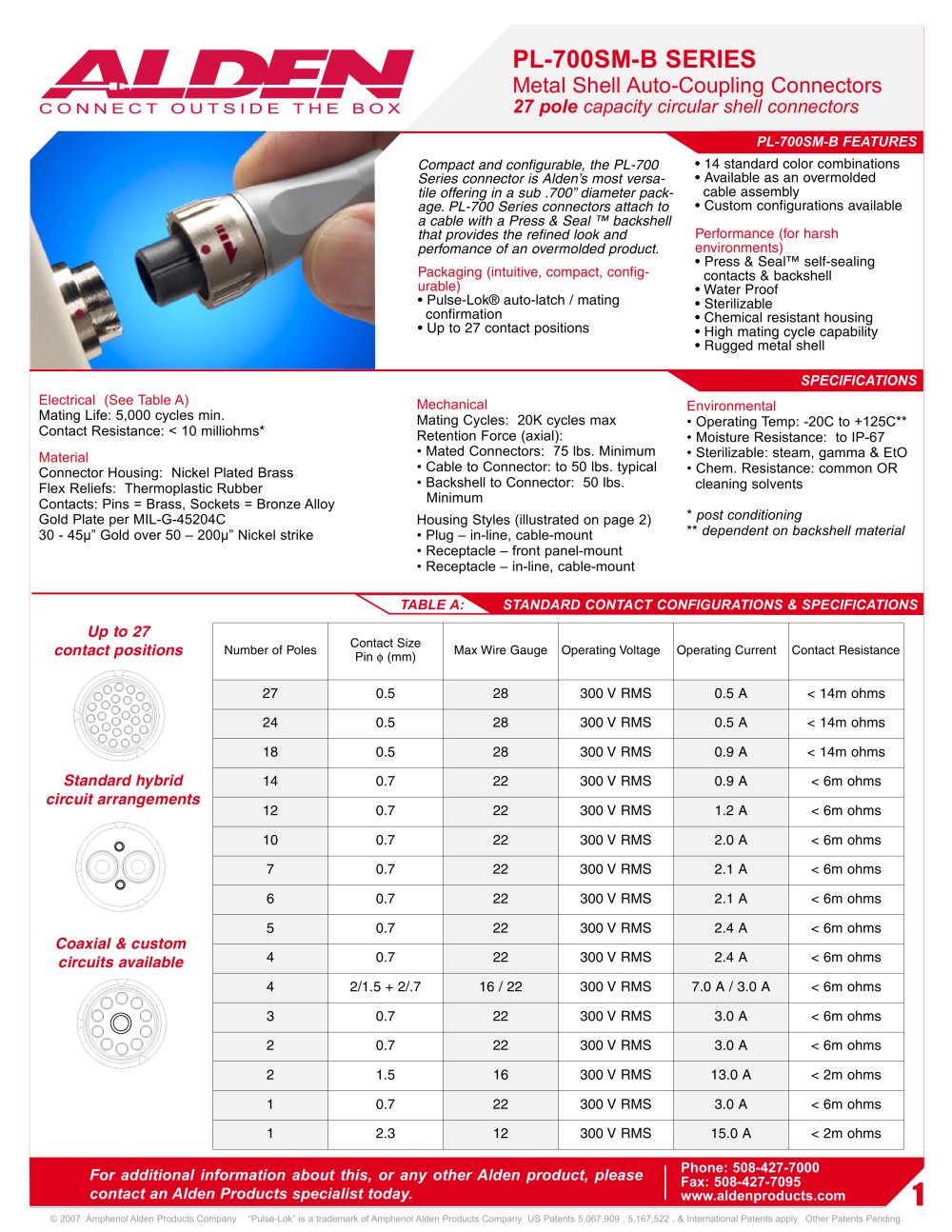

Packaging (intuitive, compact, config-urable) Pulse-Lokծauto-latch / mating confirmation Up to 27 contact positions PL-700SM-B FEATURES Compact and configurable, the PL-700Series connector is AldenՒs most versa- tile offering in a sub .700diameter pack- age.PL-700 Series connectors attach to a cable with a Press & Seal ԙbackshell that provides the refined look and perfomance of an overmolded product. 14 standard color combinations Օ Available as an overmolded cable assembly Custom configurations availablePerformance (for harsh environments) Օ Press & Sealself-sealing contacts & backshellٕ Water Proof Sterilizable Օ Chemical resistant housing High mating cycle capability Օ Rugged metal shell Electrical (See Table A)Mating Life: 5,000 cycles min. Contact Resistance: < 10 milliohms*MaterialConnector Housing: Nickel Plated Brass Flex Reliefs: Thermoplastic Rubber Contacts: Pins = Brass, Sockets = Bronze AlloyGold Plate per MIL-G-45204C30 - 45Ք Gold over 50 200ֵ Nickel strikeMechanicalMating Cycles: 20K cycles max Retention Force (axial): ԕ Mated Connectors: 75 lbs. Minimum Cable to Connector: to 50 lbs. typical Օ Backshell to Connector: 50 lbs. MinimumHousing Styles (illustrated on page 2) Plug Ֆ in-line, cable-mount Receptacle Ֆ front panel-mount Receptacle Ֆ in-line, cable-mount SPECIFICATIONS Environmental Operating Temp: -20C to +125C** Օ Moisture Resistance: to IP-67 Sterilizable: steam, gamma & EtO Օ Chem. Resistance: common OR cleaning solvents * post conditioning** dependent on backshell material TABLEA: STANDARD CONTACT CONFIGURATIONS & SPECIFICATIONS > Number of Poles Contact SizePin φ (mm) Max Wire Gauge Operating Voltage Operating Current Contact Resistance 27 0.5 28 300 V RMS 0.5 A < 14m ohms 24 0.5 28 300 V RMS 0.5 A < 14m ohms 18 0.5 28 300 V RMS 0.9 A < 14m ohms > Phone: 508-427-7000Fax: 508-427-7095 www.aldenproducts.com > 2007 Amphenol Alden Products Company ɓPulse-Lok is a trademark of Amphenol Alden Products Company US Patents 5,067,909 , 5,167,522 , & International Patents apply. Other Patents Pending.

4 holes Տ .268 B.C. Hole dia..034 +/- .01 > 15 holes Ə .244 B.C. > 10 holes Ə .062 B.C. > 3 holes Ə .580 B.C. > 33 holes Request Sales Drawing SD-106486 Request Sales Drawing SD-106487 > Ə .625 Ə .70 Ə .75 forRPM spanner nut) Mounting Flange Footprint ( > Standard color is black. Gray is optional. In-Line Backshell -The PL-700 plug housing is designed to accept Aldenƒs one piece, Press & SealPVC Backshell.This unique backshell simply snaps into place providing an IP-67 rated seal to the plug housing and cable exit without hardware result- ing in a clean overmolded look.For optimum sealing we...
