Blade Runner™

Product catalog summary

Introduction
ALD Vacuum Technologies GmbH introduces the Blade Runner™, a new turbine blade coating system utilizing Electron Beam Physical Vapor Deposition (EB/PVD). This system is designed for applying thermal barrier coatings (TBCs) on aircraft turbine blades and vanes.

Key Features

Based on 25 years of experience in EB/PVD equipment for the aviation industry.
Offers best cost performance and flexibility for parts.
Requires low capital investment and features a single-level layout, eliminating the need for a pit.
Ensures easy operation and service with quality control of parts.
Supports the application of new coating technologies.
Technology is approved on 15 delivered EB/PVD systems for the aviation industry.

Specifications

Throughput: 10,000 blades per year (CF6 or equivalent) per shift.
Number of parts per cycle: 3.
Cycle time: Less than 30 minutes.
Manpower requirement: 1 person.
Dimensions: Height ~ 4 m, Length ~ 11 m, Width ~ 9 m.

Conclusion
The Blade Runner™ is positioned as a cost-effective and efficient solution for OEMs and Repair & Overhaul Shops worldwide, meeting the demands of globalization in the aviation industry.

Catalog excerpts

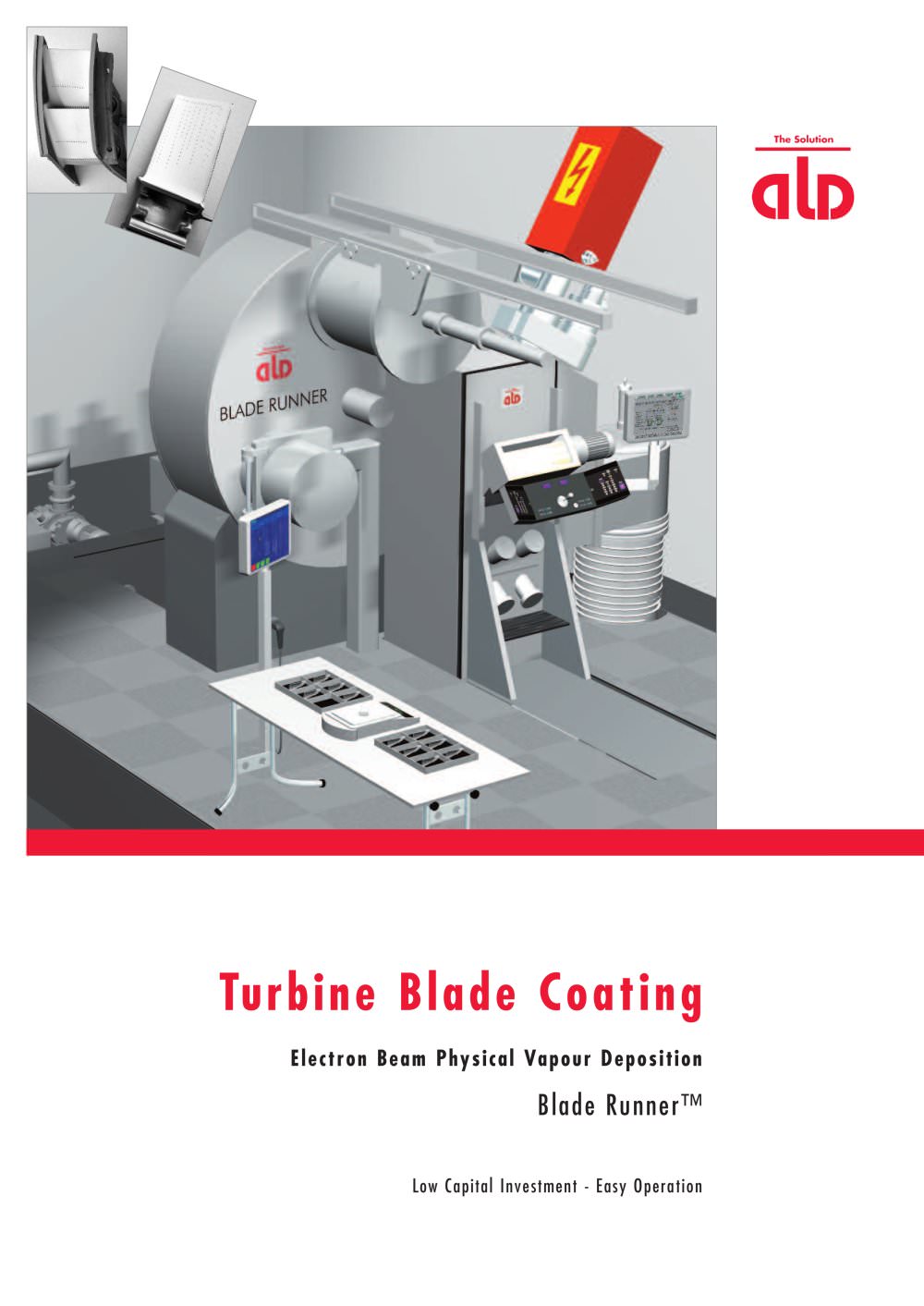

Turbine_Blade table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Impact", sans-serif; } .font1 { font:11.00pt "Impact", sans-serif; } .font2 { font:11.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:24.00pt "Lucida Sans Unicode", sans-serif; } urbineBladeCoating ElectronBeamPhysicalVapourDposition Blade Runner Low Capital Investment - Easy Op险ration

Open the catalog to page 1

Turbine_Blade table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:12.00pt "Arial", sans-serif; } .font7 { font:23.00pt "Arial", sans-serif; } .font8 { font:7.00pt "Georgia", serif; } .font9 { font:51.00pt "Impact", sans-serif; } The Next Step in Turbine Coating Evolution ALD, the world market leader for EB/PVD...

Open the catalog to page 2
