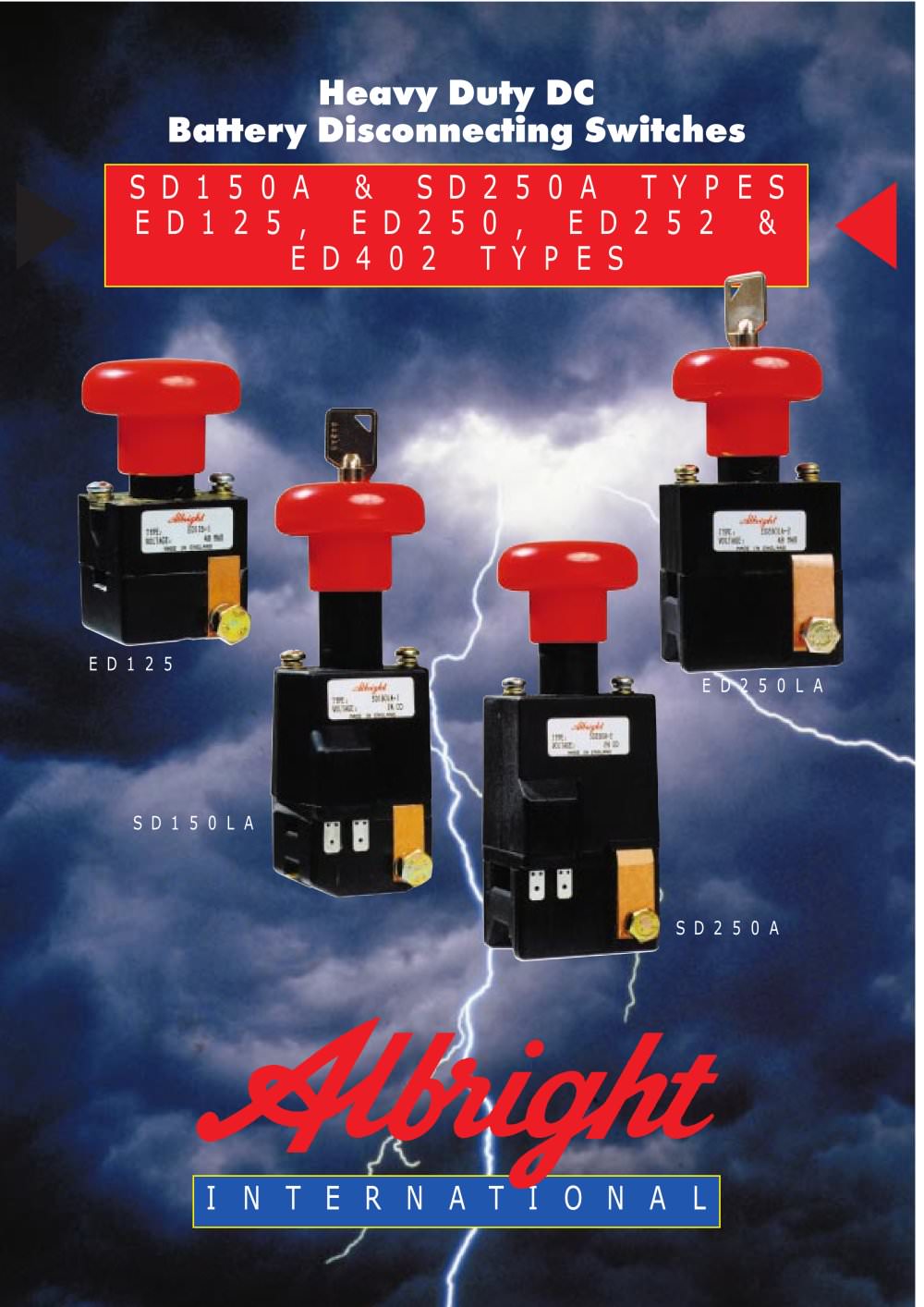

Heavy Duty DC Battery Disconnecting Switches. ED125, ED250, ED252 & ED402 Types. SD150A & SD250A Types

Product catalog summary
Overview: The document provides detailed specifications and operational guidelines for the SD and ED series of heavy-duty DC battery disconnecting switches. These switches are designed for rapid disconnection of batteries or power supplies in case of electrical faults, primarily for battery-powered vehicles and static power systems.
Specifications: The switches are available in various models, including SD150A, SD250A, ED125, ED250, ED252, and ED402, with current ratings ranging from 125 to 400 amperes. They feature single or double pole configurations and optional lockable versions. The switches are equipped with heavy-duty contacts made of silver alloy for durability and conductivity.
Operational Modes: The SD150A and SD250A models combine manual disconnect and line contactor functions. They operate by depressing or pulling the knob to open or close the main contacts. The auxiliary contacts are integral and operate independently of the coil's energization status.
Applications in Electric Vehicles: The switches provide a means of emergency battery disconnection, which is often a legal requirement. They can be used manually or in conjunction with electronic controllers and keyswitches to ensure vehicle safety and maintenance.
Performance Data: The switches can handle overload currents up to 1500 amperes at specified voltages. They have a mechanical life exceeding 10,000 operations for manual switches and 3,000,000 for electrically operated ones. The auxiliary contacts have specific switching capacities based on resistive loads.
Installation and Maintenance: The switches are easy to install using two 5mm screws. They require no regular maintenance but should be inspected after emergency use. Magnetic blowouts and protective barriers are optional features for enhanced performance and safety.
Precautions: The switches should not be used as regular on-load switching devices. Proper installation is crucial to prevent damage from arcs, and the polarity must be observed for models with magnetic blowouts.
See more

Catalog excerpts

Heavy Duty DC Battery Disconnecting Switches. ED125, ED250, ED252 & ED402 Types. SD150A & SD250A Types-2

Modern battery powered electricvehicles are inherently very reliable and safe but even when sophisticated electronic controllers are used it is desirable to have ameans of disconnecting the batteryin the event of an emergency, such as a vehicle failing to stop, or an electrical short circuit.Indeed in many countries it ismandatory to fit one or moredevices to achieve an emergencydisconnection of the battery. THERMAL TYPE CURRENT RATINGNO.(100%) SD150A Combined Manual Disconnect &125Line Contactor - Single Pole On/OffAmperes SD150AL With Lock The options are as follows: > 1) 3) Manual disconnecting...

 Open the catalog to page 2
Heavy Duty DC Battery Disconnecting Switches. ED125, ED250, ED252 & ED402 Types. SD150A & SD250A Types-3

These switches combine the dual function of a manualdisconnect and coil operated line contactor. The benefits ofthis design include compact size and reduced installationcosts combined with an electrical capacity sufficient formost small and medium size electric vehicles. Modes of Operation > The operation of the SD150A & SD250A switches is such that with theoperating knob depressed i.e. in the OffӔ position, no electrical functions can take place. However if the knob is in the OnӔ position, the option of energising the coil and thus closing the main contacts becomes available. The coil energisation...

 Open the catalog to page 3
Heavy Duty DC Battery Disconnecting Switches. ED125, ED250, ED252 & ED402 Types. SD150A & SD250A Types-4

Dimensions in mm (inches). See Page 7 for mounting details. > Dimensions in mm (inches). See Page 7 for mounting details. > 4 size="-1">

 Open the catalog to page 4
Heavy Duty DC Battery Disconnecting Switches. ED125, ED250, ED252 & ED402 Types. SD150A & SD250A Types-6

Dimensions in mm (inches). See Page 7 for mounting details. > Dimensions in mm (inches). See Page 7 for mounting details. > Electrical schematic forED252A & ED402A LOADNCNONCNO INTERNATIONAL 6 size="-1">

 Open the catalog to page 6
Heavy Duty DC Battery Disconnecting Switches. ED125, ED250, ED252 & ED402 Types. SD150A & SD250A Types-7

The switches all have double breaking main contacts with silver alloy contacttips which are weld resistant, hard wearing and have excellent conductivity. > Lockable versions of both the SDӔ & EDӔ switches are available.For these versions a key is necessary for the knob to be movedfrom the OffӔ position to the OnӔ position. Once in the OnӔposition, the key can be removed. Thereafter, the knob may bedepressed to the OffӔ position where it will automatically lock andremain locked until the key is used again to unlock it. > Lock details SD150LA The suffix LӔapplies for lockable versions > Optional...

 Open the catalog to page 7
