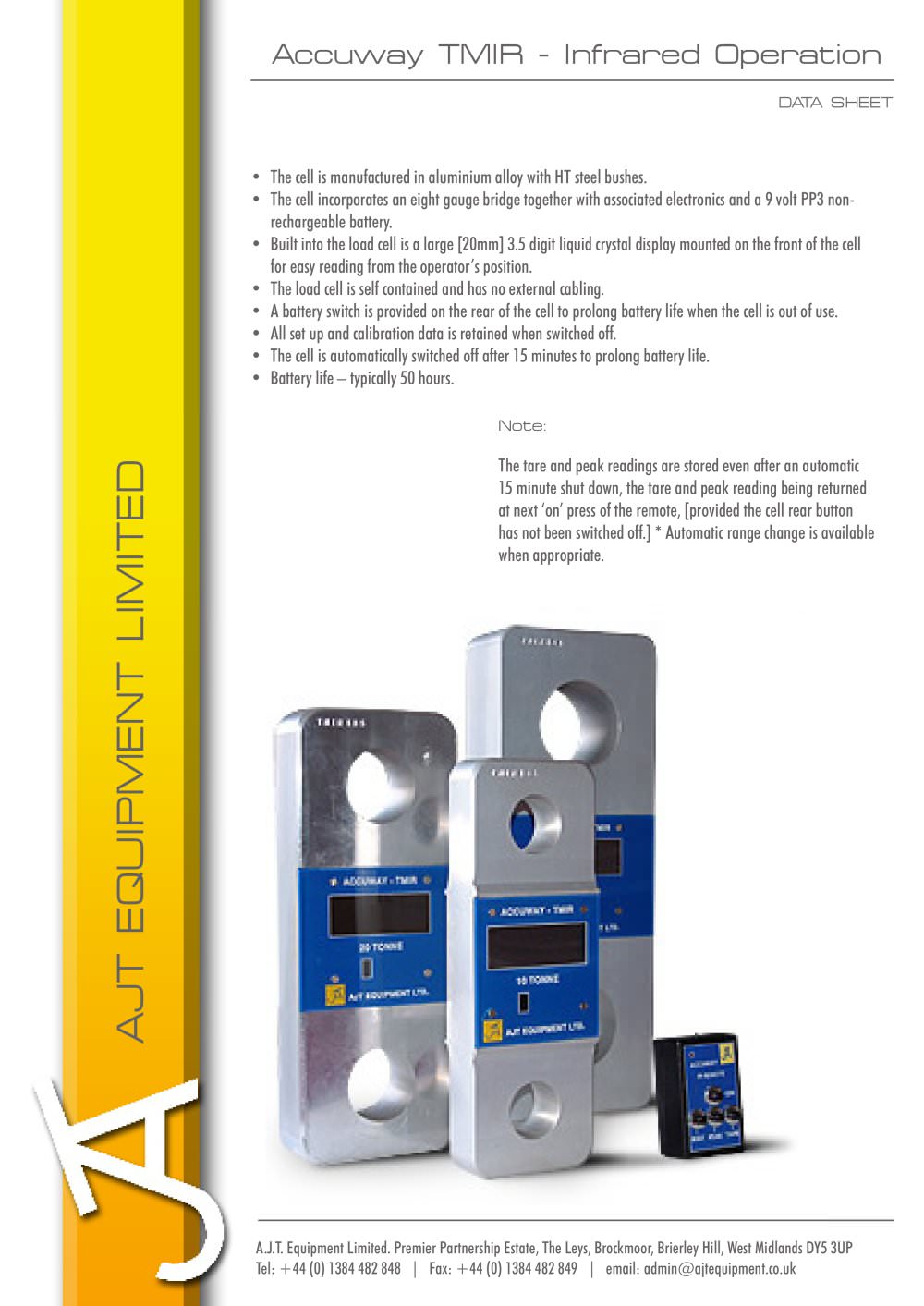

Accuway TMIR - Infrared Operation

Product catalog summary

Specifications:

The load cell is constructed from aluminum alloy with high-tensile steel bushes.
It includes an eight-gauge bridge, associated electronics, and a 9-volt PP3 non-rechargeable battery.
A 3.5-digit liquid crystal display is mounted on the front for easy reading.
The device is self-contained with no external cabling and features a battery switch to extend battery life.
Automatic shut-off occurs after 15 minutes to conserve battery, which typically lasts 50 hours.

Data Retention:

Tare and peak readings are stored even after automatic shutdown, provided the rear button is not switched off.
Automatic range change is available when appropriate.

Dimensions and Capacity:

Capacity	Length	Width	Depth	Hole Diameter	Hole Centres
5 TONNE	275mm	100mm	50mm	26mm	200mm
10 TONNE	320mm	110mm	50mm	36mm	220mm
20 TONNE	360mm	140mm	50mm	52mm	240mm
50 TONNE	442mm	160mm	75mm	72mm	272mm

Controller Specifications:

Handheld controller dimensions: 95 x 60 x 40 mm.
Powered by a PP3 non-rechargeable battery with extensive battery life.
Features four momentary action push buttons for On/Off, Zero/Tare, Peak, and Reset functions.
Operates in bright ambient light but not directly facing the sun.
Minimum operational range is 5 meters, typically 7 meters.
