Series XG cylinder

Series XG cylinder

Product catalog summary

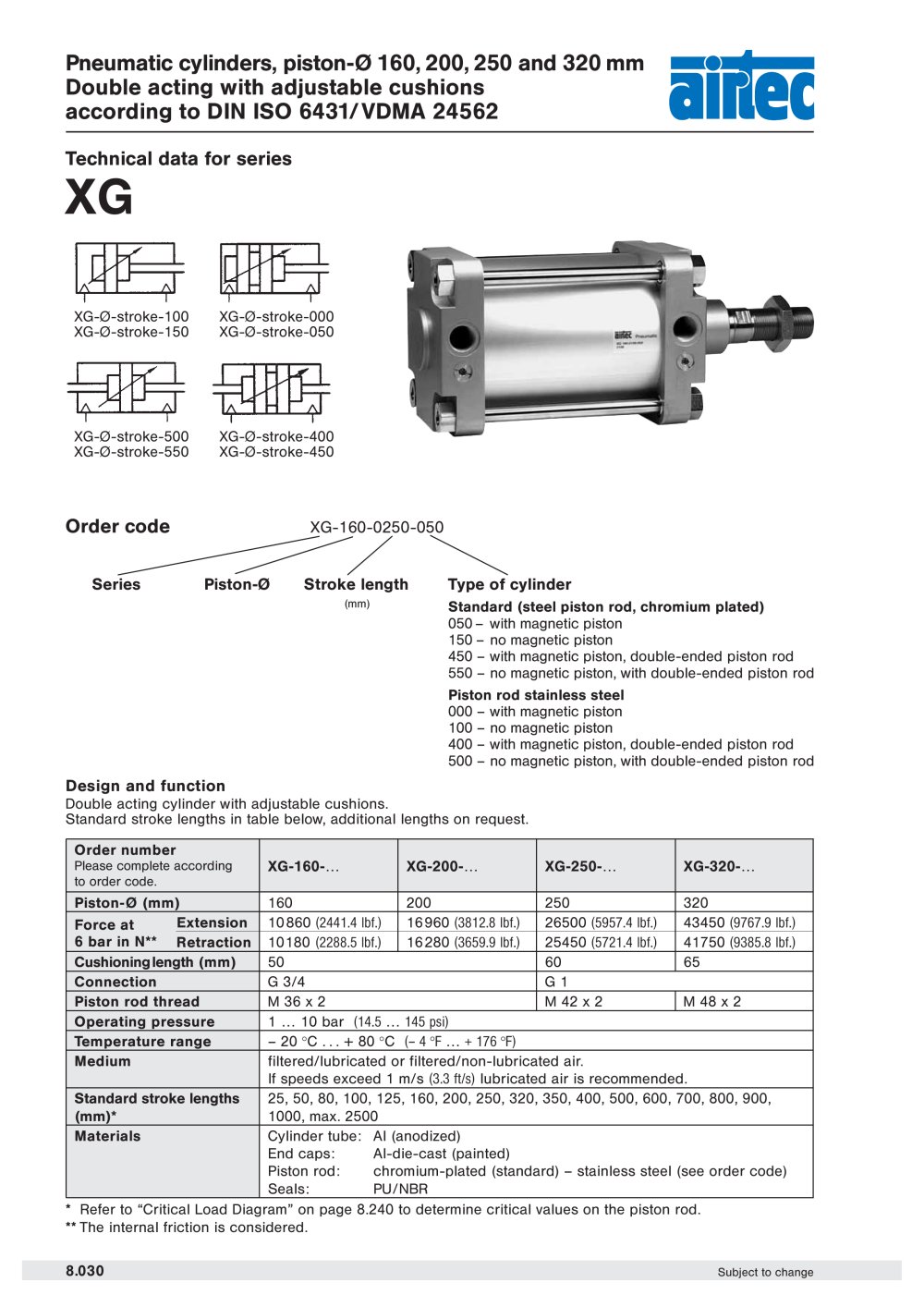

Overview: This document provides technical specifications and details for pneumatic cylinders of series XG with piston diameters of 160, 200, 250, and 320 mm. These cylinders are double-acting with adjustable cushions and conform to DIN ISO 6431/VDMA 24562 standards.

Specifications:

Piston Diameters: 160, 200, 250, 320 mm
Operating Pressure: 1 to 10 bar (14.5 to 145 psi)
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Medium: Filtered/lubricated or filtered/non-lubricated air
Standard Stroke Lengths: Ranges from 25 mm to 1000 mm, with a maximum of 2500 mm
Materials: Cylinder tube is anodized aluminum, end caps are aluminum die-cast, and the piston rod is chromium-plated or stainless steel

Performance:

Force at Extension (6 bar): Varies from 10,860 N to 43,450 N depending on piston diameter
Force at Retraction (6 bar): Varies from 10,180 N to 41,750 N depending on piston diameter
Cushioning Length: 50 to 65 mm

Design and Function: The cylinders are designed for double-acting operations with adjustable cushions. They are suitable for applications requiring precise control of piston movement.

Dimensions and Weight: Detailed dimensions are provided for each piston diameter, including weight at 0 mm stroke and weight per 100 mm stroke.

Accessories: Various mounting and piston rod accessories are available, including foot mounts, flange mounts, clevis mounts, swivel mounts, and proximity sensors. Accessories for larger piston diameters (250 and 320 mm) are available upon request.

Proximity Sensors: The document details several sensor models, including their design, cable specifications, and operational parameters. These sensors are used for piston position detection in pneumatic cylinders.

Technical Charts: Includes a critical load diagram for piston rods and air consumption data for different piston diameters and air pressures.

Catalog excerpts

page 8.202 FE-200 page 8.202Piston rod nut FD-200 page 8.203Rod clevis with pin FO-200 > Accessories for piston-ؘ 250 and 320 mm are available on request. Cover for sensor groove 250 and 320 mm > page 8.036 Sensors h VLB-ؘ-06 page 8.037Swivel mount 90 page 8.035Swivel mount VLB--12 VLB-ؘ-04 page 8.035Clevis mount with bushing VLB--03 page 8.034Clevis mount VLB-ؘ-02 Foot mount page 8.034Flange mount VLB--01 page 8.035Trunnion flange mount VLB-ؘ-05 page 8.036 Swivel mount with spherical bearing VLB-200-08 page 8.036Clevis pin VLB-200-09 page 8.221 Rod eye page 8.037Bearing block NT-1216 8 page...

Open the catalog to page 4

Accessories for piston- 250 and 320 mmare available on request. >

Open the catalog to page 5

Accessories for piston- 250 and 320 mmare available on request. >

Open the catalog to page 6

VLB-200-08 VLB-200-09 Material: steel (zinc-plated)Snap rings are included. Weight: 0.978 kg (2.176 lbs.) > Order number = 1 pair Material: steel (zinc-plated), bronze Weight: 1.7 kg ( 3.75 lbs.) (pair) Accessories for piston-֘ 250 and 320 mmare available on request. 8.036 > Subject to change size="-2">

Open the catalog to page 7

Accessories for piston- 250 and 320 mmare available on request. > Material: Al OrdernumberABCDFGHIKLMNOPWeightVLB-160-12 14043281802618720M 16 x 3010556545352.72 kg (6.00 lbs.) VLB-200-12 17543282202618725M 16 x 3011607548354.14 kg (9.13 lbs.) > 0.2і0.1max.H13H130.5JS15H11max.H7 Subject to change 8.037 >

Open the catalog to page 8

Cable: PUR, black, 3 x 0,25 mm > 2 , l 3.9, high flexibleOperating voltage 0 ؅ 48 V AC/DC Material: PA, steel zinc plated Order numberLength of cableConnectionKA-30 3 m8 mm sensor snap-in, straight KA-50 5 m8 mm sensor snap-in, straight KA-51 5 m8 mm sensor snap-in, 90 KA-100 10 m8 mm sensor snap-in, straight > BU 34 BK1 BN KA-101 10 m8 mm sensor snap-in, 90а > Order numberZS-6300ZS-6301ZS-7300ZS-7301Design electronic, magnet-induktive sensor,normally open PNP output Cable l 3, LifYY-11Y, PUR Cable cross section 3 x 0.14 mm > 2 Cable lengths 3 m0.3 m3 m0.3 m 8 Cable plug M8֖M8 Overtravel speed...

Open the catalog to page 12

Piston rod-ؘ > Stroke of cylinder Critical load for the piston rod Fk (N) is calculated with a safety factor of 5-times. Elastic cases of buckling according to Eulerē F > k = permitted critical force (N) E > = elasticity module (N/mm 2 ) First elasticcase of buckling l > = moment of inertia (mm 4 ) Second elasticcase of buckling L > k = effective length of critical load open end at Bfixed restraint at A Lk = 2 x L joint at Bjoint at A Lk = L S > = security 8.240 > Subject to change size="-2">

Open the catalog to page 13

Series XG cylinder

Series XG cylinder
