AIRTEC Pneumatic
Electronic vacuum switch/Pressure switch

Electronic vacuum switch/Pressure switch

Product catalog summary

Overview: This document provides technical specifications and details for a series of electronic vacuum and pressure switches, including models 18-HVS-PE-500-02, 18-HVS-PE-501, 18-HVS-PE-503, 18-HVS-PE-504, and 18-HVS-PE-505. It also includes information on accessories and connection cables.

Specifications:

18-HVS-PE-500-02: Vacuum switch with a nominal pressure range of 0 to -1 bar, featuring one switchable output and one analogue output. It is pre-set with a switch-on point of -500 mbar and a switch-off point of -460 mbar. The device operates within a temperature range of -20°C to +70°C and has a degree of protection of IP 54.
18-HVS-PE-501: Vacuum switch with a nominal pressure range of 0 to -1 bar and overpressure safety up to 5 bar. It includes two programmable switch outputs and operates within a temperature range of 0°C to +50°C. The device is protected to IP 65 standards.
18-HVS-PE-503: Similar to the 501 model, this vacuum switch also features two programmable switch outputs and operates within the same temperature range. It is designed for high accuracy and user-friendly reconfiguration.
18-HVS-PE-504: This model includes both digital and analogue outputs, with a nominal pressure range of 0 to -1 bar. It is protected to IP 65 standards and features adjustable switching points and hysteresis.
18-HVS-PE-505: Pressure switch with a nominal pressure range of 0 to 10 bar and overpressure safety up to 16 bar. It features two digital switch outputs and operates within a temperature range of 0°C to +50°C.

Accessories:

Adapters for vacuum switches of the HV-SA/P and HV-SAVP/PV ejector series.
Connection cables available in various lengths and configurations, including straight and angled 4-pin sockets.

Key Features:

All models are equipped with reverse polarity protection and are designed for use with dry, oil-free air and non-aggressive gases.
Switching points and hysteresis are adjustable, providing flexibility for various applications.
LED indicators provide status and error codes for easy monitoring and troubleshooting.

Catalog excerpts

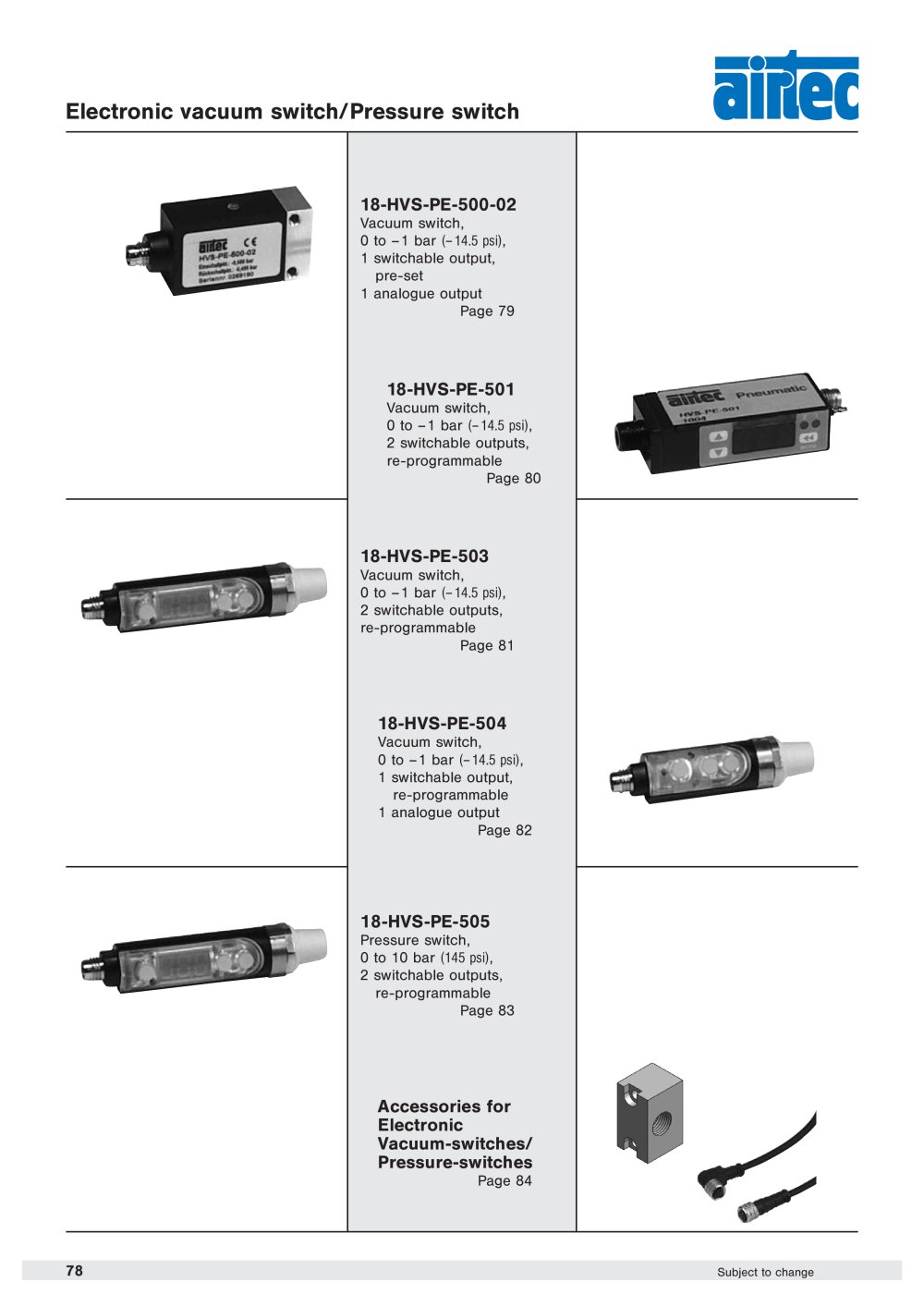

Electronic vacuum switch/Pressure switch-1

Vacuum switch, 0 to 1 bar (֖14.5 psi) ,1 switchable output,pre-set1 analogue outputPage 79 > Vacuum switch,0 to 1 bar (֖14.5 psi) ,2 switchable outputs,re-programmablePage 80 > Vacuum switch,0 to 1 bar (֖14.5 psi) ,2 switchable outputs, re-programmablePage 81 > Vacuum switch,0 to 1 bar (֖14.5 psi) ,1 switchable output,re-programmable1 analogue outputPage 82 > Pressure switch,0 to 10 bar (145 psi) ,2 switchable outputs,re-programmablePage 83 > Page 84 78 > Subject to change size="-1">

Open the catalog to page 1

Electronic vacuum switch/Pressure switch-2

Dimensions Connection allocation Connection circuit diagram Connections PIN connection Supply + 1 Supply 3 Switchable output 4 Analogue output 2 Earth Cable screening Connection cable; see accessories page 84. > The vacuum switch is pre-set in the factory to a switch-on point of ֖500 mbar and a switch-off point of 460 mbar.A digitally switchable output is ready to be processed.The ֓switchable output function is indicated with a green LED.The analogue output produces a signal of 1 to 5 VDC. Order number18-HVS-PE-500-02Nominal pressure 0 to Ԗ1 bar (0 to 14.5 psi) Switch-on point ֖ 500 mbar ( 7.250...

Open the catalog to page 2

Electronic vacuum switch/Pressure switch-3

Dimensions Connection allocation Connection circuit diagram Connections PIN connection Supply + 1 Supply 3 Switchable output 1 4 Switchable output 2 2 For connection cables, see accessories, page 84. > These calibrated and temperature-compensated sensors deliver extremely accurate measurements. There aretwo programmable switchpoints ready to be processed.The switching points and the hystereses are adjustable.The ֓adjustable output functions are distinguished by a red and a green LED. The sensors are user friendly and can be easily re-configured for special applications. Order number18-HVS-PE-501Nominal...

Open the catalog to page 3

Electronic vacuum switch/Pressure switch-4

Open the catalog to page 4

Electronic vacuum switch/Pressure switch-5

Dimensions Connection allocationConnection circuit diagram Connections PIN connection Supply + 1 Supply 3 Switchable output 4 Analogue output 2 For connection cables, see accessories, page 84. > These calibrated and temperature compensated sensors deliver extremely accurate measurements.The adjustable digital and analog outputs are ready to be processed.The switching points and the hystereses are adjustable.The ֓switch output function has a red LED and the status indicator has a green LED.The sensors are user friendly and can be easily re-configured for special applications. Order number18-HVS-PE-504Nominal...

Open the catalog to page 5

Electronic vacuum switch/Pressure switch-6

Open the catalog to page 6

Electronic vacuum switch/Pressure switch-7

Order number28-HV-102 Cable length 2 m, cable socket M 8x1, straight 4-pin 28-HV-105 Cable length 5 m, cable socket M 8x1, straight 4-pin 1 = brown2 = white 3 = blue 4 = black 28-HV-112 Cable length 2 m, cable socket M 8x1, angled 4-pin 28-HV-115 Cable length 5 m, cable socket M 8x1, angled 4-pin Adapter for the vacuum switch of the HV-SA/P ejector series > Adapter for the vacuum switch of the HV-SAVP/PV ejector series 84 > Subject to change size="-1">

Open the catalog to page 7
