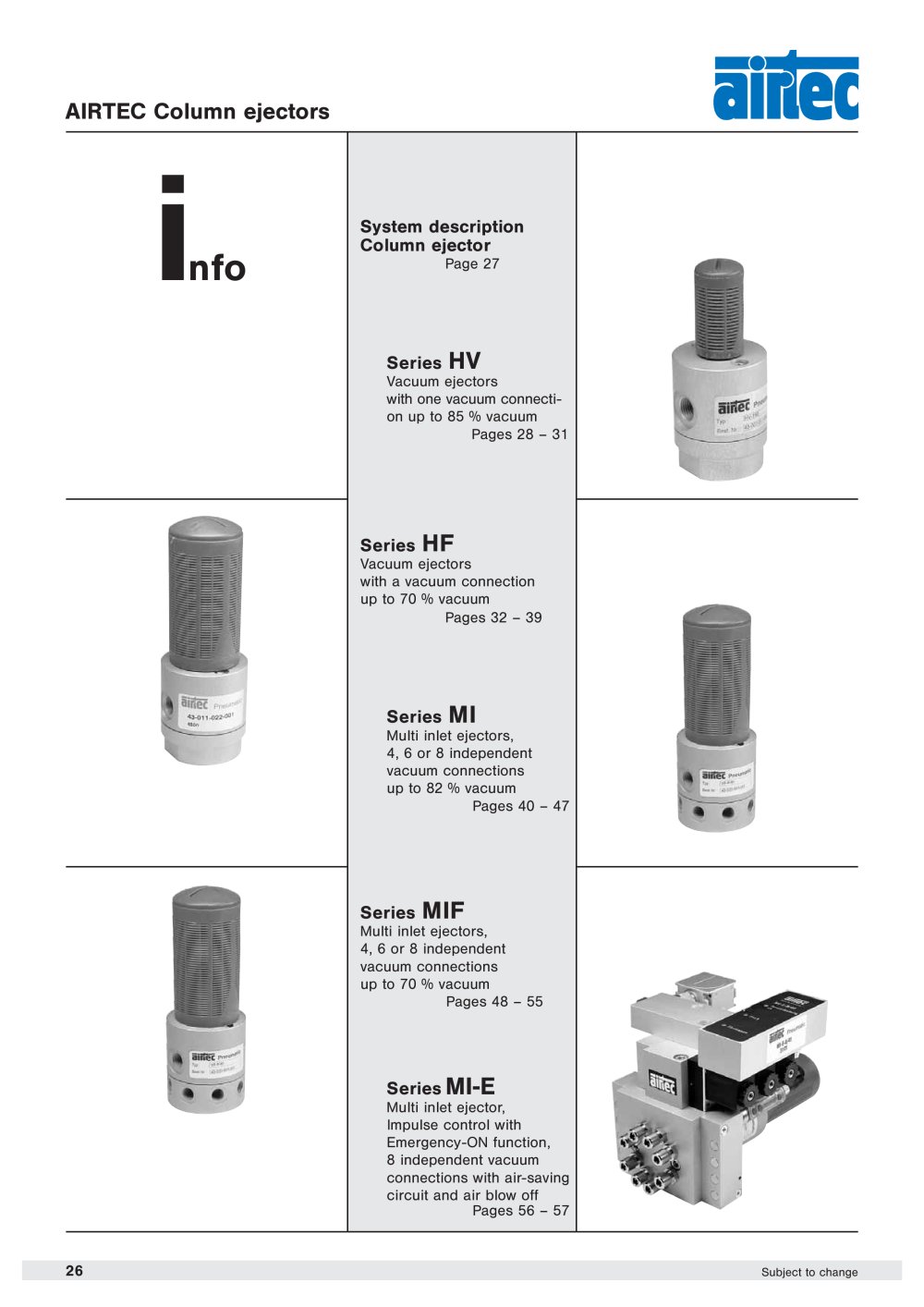

AIRTEC Column ejectors
32Pages

Vacuum ejectorswith one vacuum connecti-onup to 85 % vacuumPages 28 31 > Vacuum ejectors with a vacuum connection up to 70 % vacuumPages 32 ֖ 39 > Multi inlet ejectors,4, 6 or 8 independent vacuum connections up to 82 % vacuum Pages 40 47 > Multi inlet ejectors,4, 6 or 8 independentvacuum connections up to 70 % vacuumPages 48 ֖ 55 > Multi inlet ejector, Impulse control withEmergency-ON function,8 independent vacuumconnections with air-saving circuit and air blow offPages 56 57 >

Vacuum generator according to the Venturi principle with a vacuum connection: as a result of its structure thiscolumn ejector enables a high vacuum stream with a low use of compressed air.The HV production series is optimized for a vacuum level of up to 85 % and is ideally suited in systems withlow leakage.A silencer with a self-cleaning granular filling is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free. Accessories see pages 86 to 89. Order numberHV-80HV-150Max....

Vacuum ejector HV-80 Vacuum ejector HV-150 ֖ ֖ ֖ > Subject to change 29 >

Vacuum generator according to the Venturi principle with a vacuum connection: as a result of its structure thiscolumn ejector enables a high vacuum stream with low energy use.The HV production series is optimized for a vacuum level of up to 85 % and is ideally suited in systems withlow leakage.A silencer with a self-cleaning granular filling is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free. Accessories see pages 86 to 89. Order numberHV-300HV-600Max. vacuum-level 85...

Vacuum ejector HV-300 Vacuum ejector HV-600 ֖ ֖ ֖ > Subject to change 31 >

Vacuum generator according to the Venturi principle with a vacuum connection: as a result of its structure thiscolumn ejector enables a high vacuum stream with low energy use.The HF production series is optimized for a high air flow with a vacuum level of up to 70 % and is ideally suitedin systems with greater leakage.A silencer with a self-cleaning granular filling is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free. Accessories see pages 86 to 89. Order...

Vacuum ejector HF-100 > Subject to change 33 >

Vacuum generator according to the Venturi principle with a vacuum connection: as a result of its structure thiscolumn ejector enables a high vacuum stream with low energy use.The HF production series is optimized for a high air flow with a vacuum level of up to 70 % and is ideally suitedin systems with greater leakage.A silencer with a self-cleaning granular filling is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free. Accessories see pages 86 to 89. Order...

Vacuum ejector HF-200 Vacuum ejector HF-300 ֖ ֖ ֖ > Subject to change 35 >

Vacuum generator according to the Venturi principle with a vacuum connection: as a result of its structure thiscolumn ejector enables a high vacuum stream with low energy use.The HF production series is optimized for a high air flow with a vacuum level of up to 70 % and is ideally suitedin systems with greater leakage.A silencer with a self-cleaning granular filling is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free. Accessories see pages 86 to 89. Order...

Vacuum ejector HF-450 Vacuum ejector HF-600 ֖ ֖ ֖ > Subject to change 37 >

Vacuum generator according to the Venturi principle with a vacuum connection: as a result of its structure thiscolumn ejector enables a high vacuum stream with low energy use.The HF production series is optimized for a high air flow with a vacuum level of up to 70 % and is ideally suit-ed in systems with greater leakage.A sintered silencer is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free. Accessories see pages 86 to 89. Order numberHF-1150HF-1500Max. vacuum-level 80...

Vacuum ejector HF-1150 Vacuum ejector HF-1500 ֖ ֖ ֖ > Subject to change 39 >

Vacuum generator according to the Venturi principle with 4 independent vacuum connections: the individual con-nections are independent of one another. A leakage at one of the connections only has a marginal effect on the other connections.The MI production series is optimized for a vacuum level of up to 82 % and should preferably be used in sys-tems with few leakages.A silencer with a self-cleaning granular filling is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free....

The ratings refer to the individual vacuum connection. Vacuum ejector MI-4/20 Vacuum ejector MI-4-40 ֖ ֖ ֖ ֖ > Subject to change 41 >

Vacuum generator according to the Venturi principle with 6 independent vacuum connections: the individual con-nections are independent of one another. A leakage at one of the connections only has a marginal effect on the other connections.The MI production series is optimized for a vacuum level of up to 82 % and should preferably be used in sys-tems with few leakages.A silencer with a self-cleaning granular filling is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free....

The ratings refer to the individual vacuum connection. Vacuum ejector MI-6/30 > Subject to change 43 >

Vacuum generator according to the Venturi principle with 6 independent vacuum connections: the individualconnections are independent of one another. A leakage at one of the connections only has a marginal effect on the other connections.The MI production series is optimized for a vacuum level of up to 82 % and should preferably be used in sys-tems with few leakages.A silencer with a self-cleaning granular filling is included in the scope of the delivery. Additional option: By installing protective filters in combination with an ejector pulse, the ejector is practicallymaintenance-free....
