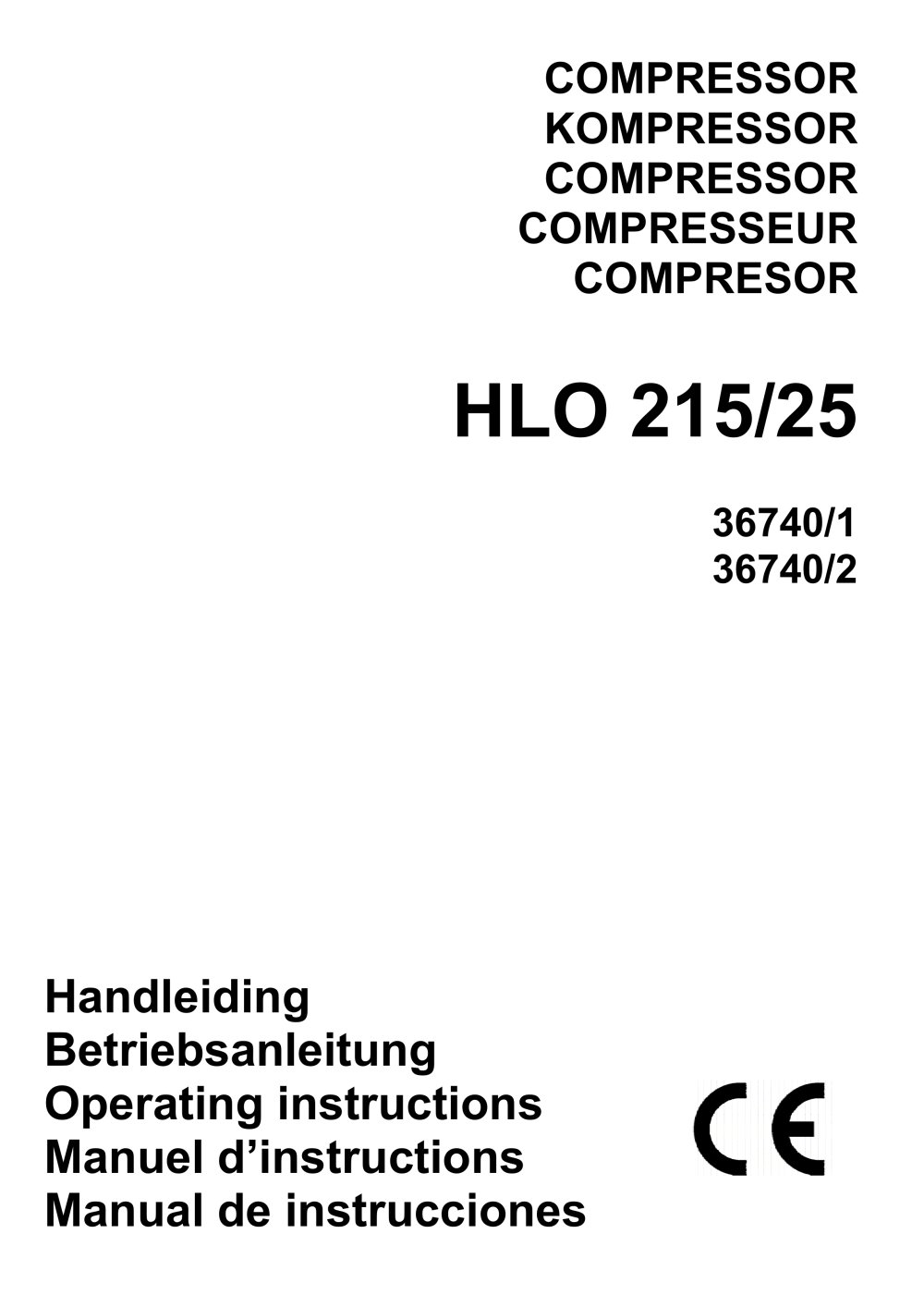

Introduction: This document provides comprehensive instructions and safety guidelines for the use and maintenance of a specific compressor model. It emphasizes the importance of using the compressor only for its intended purpose and includes a disclaimer regarding liability for misuse or negligence.

Safety Instructions: Users must read the manual thoroughly before operation. Key safety measures include keeping unauthorized persons away, avoiding the use of compressed air on people or animals, and ensuring proper attire. The compressor should not be exposed to rain or used in wet conditions, and it must be placed on a stable surface. Exceeding maximum pressure and temperature limits should be avoided.

Placing and Installation: The compressor should be installed in a cool, dust-free environment with adequate ventilation, away from paint spray zones. Adequate space should be maintained for ventilation and maintenance. It should be placed in a stable, horizontal position.

Electric and Air Connection: The compressor is pre-wired and should be connected to a grounded electrical outlet. Extension cables are discouraged, but if used, they must be fully unrolled and of adequate capacity. A flexible hose is recommended for connecting to an air circuit to minimize vibrations.

First Use and Operation: Before first use, ensure all instructions are followed, including installing the air filter. The compressor operates automatically, stopping at 8 bar and restarting at 6 bar. A reducing valve allows for pressure adjustments.

Maintenance: Regular maintenance is crucial for optimal performance. This includes draining condensation water and replacing or cleaning the air filter. A maintenance schedule recommends weekly and monthly tasks. Maintenance enhances the compressor's durability and reliability.

Troubleshooting: Common issues include non-responsive compressors, thermal shutdowns, continuous air discharge, insufficient capacity, and leaking safety valves. Solutions involve checking fuses, cables, pressure switches, and replacing faulty components.

Technical Details: The compressor has a motor power of 1.1 kW, operates at 230 V/50 Hz, and has a 25-liter air tank. It is designed for intermittent use, with a noise level of 78 dB(A) and a weight of 23 kg. Dimensions and other specifications are provided.

Safety Labels: Safety labels on the compressor are crucial and should not be removed or damaged.

Disposal and Recycling: Electrical waste should be recycled appropriately, and users are advised to consult local authorities for disposal guidance.

Warranty: The compressor comes with a 12-month warranty, valid only with a completed certificate and purchase invoice.
