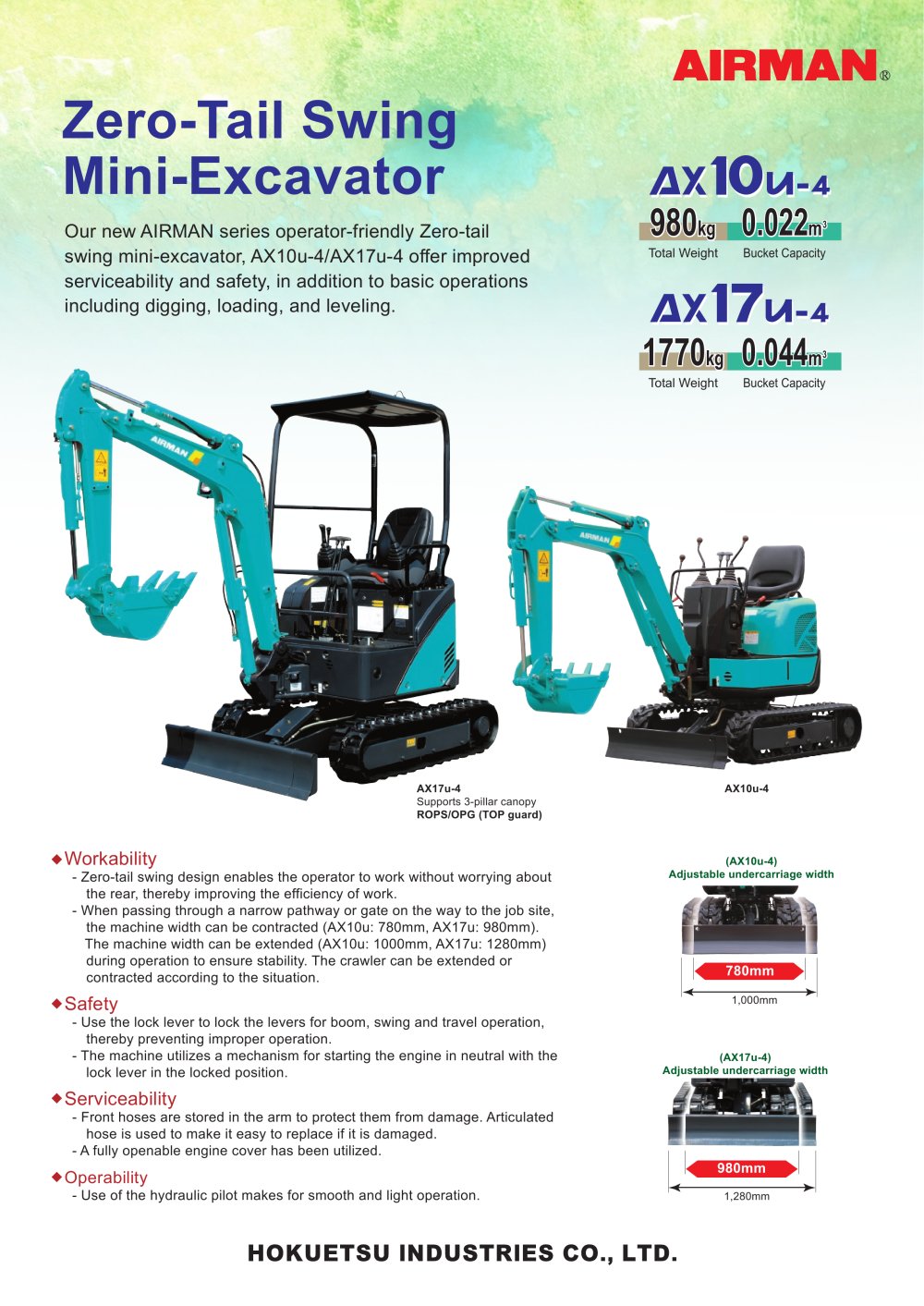

Workability
The zero-tail swing design of the mini-excavator allows operators to work efficiently without concern for the rear of the machine. The machine's width can be adjusted to pass through narrow pathways (AX10u: 780mm, AX17u: 980mm) and extended during operation for stability (AX10u: 1000mm, AX17u: 1280mm). The crawler can be adjusted according to the situation.

Safety
Safety features include a lock lever to secure the boom, swing, and travel operations, preventing improper use. The engine can only start in neutral with the lock lever engaged.

Serviceability
Front hoses are stored within the arm to prevent damage, and articulated hoses are used for easy replacement. The engine cover is fully openable for maintenance access.

Operability
The hydraulic pilot system ensures smooth and light operation. The AIRMAN series mini-excavators, AX10u-4/AX17u-4, offer enhanced serviceability and safety, alongside basic functions like digging, loading, and leveling.

Specifications

• Adjustable undercarriage width: AX10u-4: 780mm to 1000mm, AX17u-4: 980mm to 1280mm
• Supports 3-pillar canopy ROPS/OPG (TOP guard)
• Total Weight and Bucket Capacity: AX17u-4: 1770kg, 0.044m3; AX10u-4: 980kg, 0.022m3
• Engine: Yanmar 3TNV70, water-cooled, 4-cycle, 3-cylinder swirl chamber type

Hydraulic System
The hydraulic system includes a variable displacement axial piston type pump and gear type motors for operation. The main relief setting pressure is 17.7 MPa for AX10u-4 and 20.6 MPa for AX17u-4.

Performance

• Maximum digging force: Bucket - 6.0 kN (AX10u-4), 10.3 kN (AX17u-4)
• Drive speed: High/Low - 4.0/2.0 min-1
• Gradable angle: 30 degrees

Undercarriage
The crawler width and ground pressure are adjustable, with a grease cushioning spring type adjustment method.

Additional Information
The document emphasizes the importance of reading the operation manual for safe usage and notes that specifications and appearance are subject to change without notice. It also provides contact information for Hokuetsu Industries in Japan and Europe.
