Product catalog summary
Overview: The AIRMAN AX08-3 mini-excavator is designed for enhanced workability, safety, and serviceability. It is suitable for operations such as digging, loading, and leveling.
Workability: The mini-excavator features an adjustable width, allowing it to contract to 740mm for narrow pathways and extend to 910mm for stability during operation. The crawler can be adjusted based on the situation.
Safety: Safety is ensured through a lock lever that prevents improper operation by locking the levers for front, swing, and travel operations. The engine can only start in neutral with the lock lever engaged.
Serviceability: The machine's front hoses are stored within the arm to prevent damage, and articulated hoses are used for easy replacement. The engine cover is fully openable for maintenance access.
Specifications:
  • Operating weight: 1,100 kg
  • Bucket capacity: 0.022 m3
  • Engine: Yanmar 3TNV70, water-cooled, 4-cycle, 3-cylinder
  • Piston displacement: 0.854 L
  • Rated output: 9.5 kW at 2,100 rpm
  • Hydraulic system: Main pumps with max oil flow of 10.6 L/min each
  • Max digging force: Bucket - 10.3 kN, Arm - 6.1 kN
  • Travel speed: High - 4.0 km/h, Low - 2.0 km/h
  • Ground pressure: 26 kPa
Dimensions & Working Ranges:
  • Overall transport length: 2,970 mm
  • Overall width: 740 mm
  • Overall height: 2,150 mm
  • Max digging depth: 1,600 mm
  • Max dumping height: 2,050 mm
Compliance: The machine complies with ISO9001 and ISO14001 standards, ensuring quality and environmental management.
Contact Information: For further inquiries, contact Hokuetsu Industries in Japan or their European branch in the Netherlands.
See more

Catalog excerpts

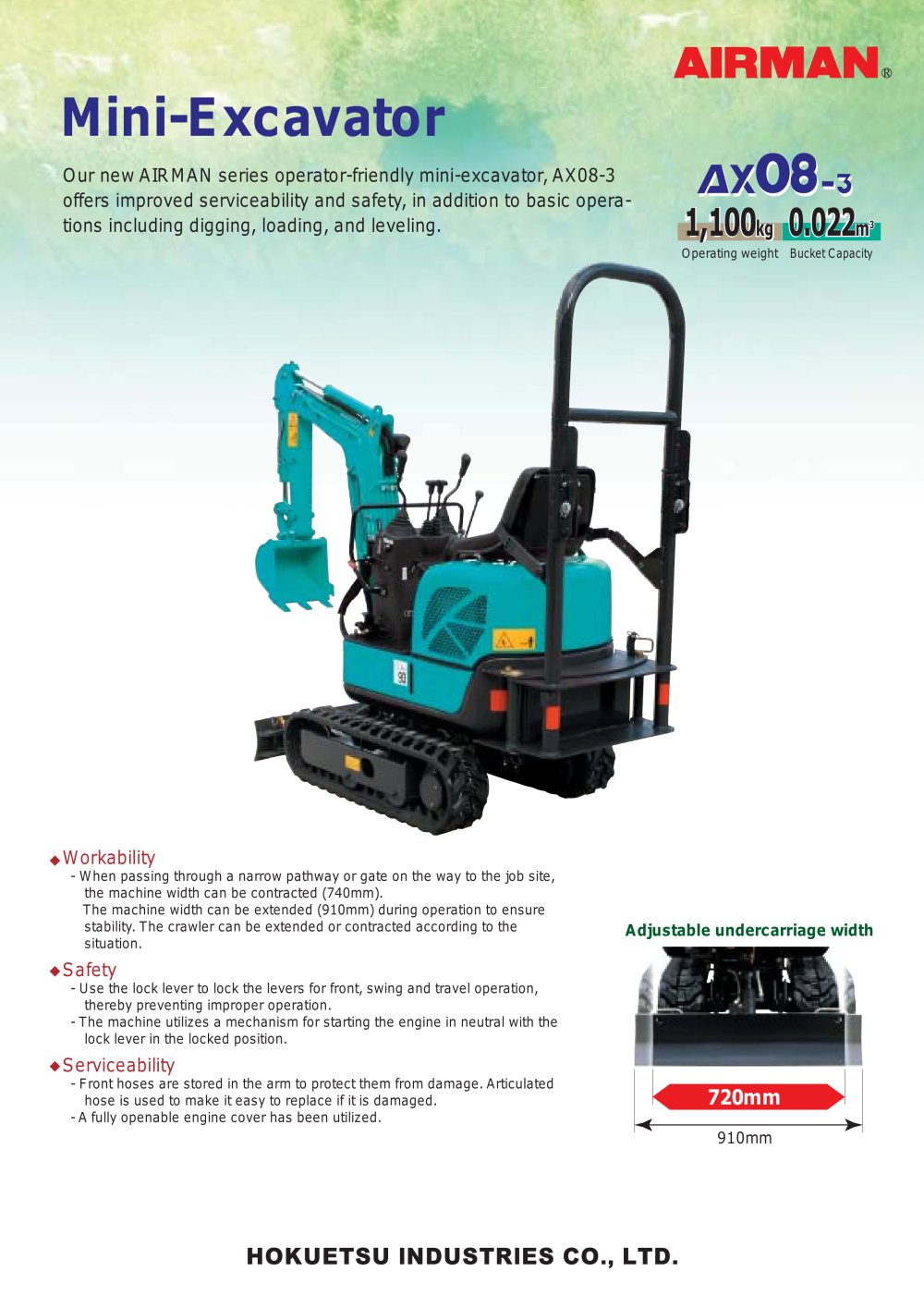

Mini Excavator AX08-1

Our new AIRMAN series operator-friendly mini-excavator, AX08-3 offers improved serviceability and safety, in addition to basic opera- tions including digging, loading, and leveling. > Bucket Capacity Workability > - When passing through a narrow pathway or gate on the way to the job site, the machine width can be contracted (740mm). The machine width can be extended (910mm) during operation to ensure stability. The crawler can be extended or contracted according to the situation. Adjustable undercarriage width Safety > - Use the lock lever to lock the levers for front, swing and travel operation, thereby preventing improper operation.- The machine utilizes a mechanism for starting the engine in neutral with the lock lever in the locked position. Serviceability > - Front hoses are stored in the arm to protect them from damage. Articulated hose is used to make it easy to replace if it is damaged.- A fully openable engine cover has been utilized.

 Open the catalog to page 1
