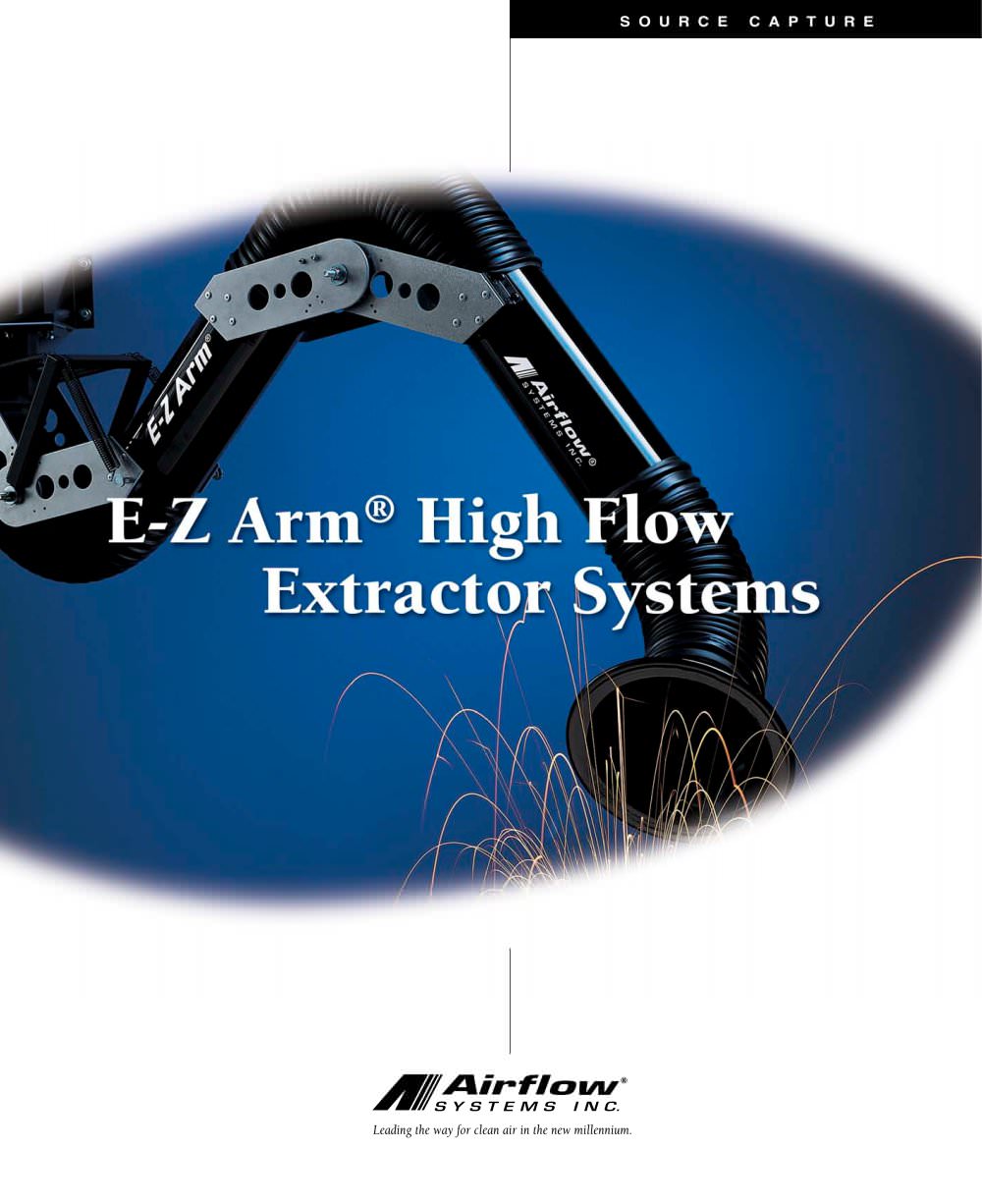

E-Z Arm high Flow Extractor Systems
12Pages

14 foot E-Z Arm® Extractor Arm 10 foot E-Z Arm® Extractor Arm Dual, 10 foot E-Z Arm® Extractor Arms Distributed by: Leading the way for clean air in the new millennium. www.airflowsystems.com 11370 Pagemill Road • Phone: 214-503-8008 • Leading the way for clean air in the new millennium. Litho in USA. • © Copyright 2000 Airflow Systems, Inc.® • 5/01, 10M-FGI-0087 Airflow Systems, Inc. is a proud member of: Leading the way for clean air in the new millennium.

Market Driven Product Solutions Driven by technological innovations and responsive customer service, Airflow Systems, Inc.® is one of the leading air filtration companies in the United States. Recognized by Inc. magazine as one of the fastest growing companies in the U.S., Airflow Systems has helped a diverse range of customers save millions of dollars as facilities managers, shop foremen, and others responsible for worker productivity and safety, seek answers to indoor air quality challenges. A Network of Service and Support Your job is maintaining plant efficiency, not worrying about...

Source Capture Collection Systems Power, Performance & Precision There is increasing pressure in manufacturing, processing and lab facilities to boost productivity while reducing costs. A significant increase in productivity can usually be realized by collecting dust, smoke, fumes, and other airborne contaminants before they migrate throughout your facility. The Airflow Systems line of E-Z Arm® Extractors captures contaminants at the source E-Z Arm® High Flow Extractor Airflow Systems E-Z Arm® High Flow Extractors provide powerful source collection in the toughest environments. A large,...

E-Z Arm® High Flow Extractor Arm The E-Z Arm® High Flow Extractor Arm is ideal for operations such as welding, grinding, and machining that generate heavy concentrations of dust, smoke, and other airborne contaminants. The E-Z Arm® makes light work of contaminant collection at the source with an externally supported arm that is easy to position and provides consistent air flow. The E-Z Arm® Extractor comes in arm lengths of 7, 10, and 14 feet, with air flow rates from 600 to 1500 CFM. HDPE Base Joint Low-friction material doubles as a base seal without need for collars or fittings. Counter...

E-Z Arm® II High Flow Extractor The E-Z Arm® II provides superior collection performance and exceptional flexibility for optimum performance in tight spaces, such as finishing and assembly operations. A 4 inch diameter arm in 5 and 8 foot lengths, and a 360˚ pivoting base provides for unlimited positioning and adjustment. The E-Z Arm® II delivers air flow rates from 200 to 600 CFM. Locking Damper (option) Multi-stage locking damper mechanism permits precise control of air flow while eliminating damper drift. 360˚ Range of Movement Eases positioning and adjustment at the workspace with 360˚...

E-Z Arm® 2.5 Extractor Arm The E-Z Arm® 2.5 Extractor Arm provides precise positioning and high-volume contaminant extraction for applications such as laboratories, electronics assembly operations, and other light industrial settings where contaminants concentrate in close work areas. The E-Z Arm® 2.5 Extractor provides up to 250 CFM air flow and can be wall- or bench-mounted to optimize work space. A tough, white epoxy powder coat finish provides corrosion resistance and allows for easy wash down in processcritical applications. Full 360˚ Range of Movement Three joint sections provide...

Stainless Steel Extractor Arms These highly efficient source capture units are specifically designed for process-critical applications such as food, chemical, and pharmaceutical processing. The stainless steel finish eliminates the problems of chipping and corrosion associated with coated surfaces. The E-Z Arm® diameter is 6.75 inches with arm lengths of 7 or 10 feet. And, the E-Z Arm® II has a 4 inch diameter with arm lengths of 5 and 8 feet. Units also feature a UL rated, food-grade, white Hi-Flow hose that makes wash down easy. Stainless Steel Duct HDPE Base Joint Rugged, 26 gauge...

Positioner Exhaust Arms Airflow Systems Positioner exhaust arms provide the perfect economic exhaust solution for workbench applications – ideal for schools, training areas, and small parts welding. A single center joint provides complete, 180˚ positioning. A 10.5 inch diameter inlet hood optimizes collection efficiency. Positioners are designed to connect to existing ductwork or connect directly to Airflow Systems collection and filtration units. Single center joint design allows for complete 180° reach and access. Wall mounts with motor/blower offer generous reach and positioning. Model...

E-Z Arm® Options & Performance Data Optional Equipment Halogen Light Kit E-Z Arm® High Flow Extractor E-Z Arm® II High Flow Extractor E-Z Arm® Stainless Steel E-Z Arm® II Stainless Steel Improves worker visibility and productivity Hood-mounted Controls Individually controls light and/or blower on each unit Wall Brackets* Silencer Reduces noise for quieter operation Boom Extensions** Complete kit, including one transition to 8 inch diameter Adjustable-Height Floor Stand Maximum height of 120 inches Filtration Units HEPA, cartridge, and odor control modules, based on application Multiple...

E-Z Arm® Extractor Arm Specifications Model Name Air Flow Construction Level E-Z Arm® High Flow Extractor Blower Packages Epoxy coated aluminum tube connected 7, 10, and with spiral wire reinforced Hi-Flow hose. 14 feet Heavy-duty external aluminum joints with patented, friction-release system at middle joint. Spring-balanced base joint; universal joint at powder coated aluminum flanged inlet hood. 7 feet, 36 lbs. 10 feet, 40 lbs. 14 feet, 45 lbs. Epoxy coated aluminum tube connected 5 feet, and with spiral wire reinforced Hi-Flow hose. 8 feet Heavy-duty external aluminum joints. External...

Market Driven Product Solutions Driven by technological innovations and responsive customer service, Airflow Systems, Inc.® is one of the leading air filtration companies in the United States. Recognized by Inc. magazine as one of the fastest growing companies in the U.S., Airflow Systems has helped a diverse range of customers save millions of dollars as facilities managers, shop foremen, and others responsible for worker productivity and safety, seek answers to indoor air quality challenges. A Network of Service and Support Your job is maintaining plant efficiency, not worrying about...
