AIREX° T92 - Easy Processing Structural foam

Product catalog summary

Overview:
AIREX® T92 is a closed-cell, thermoplastic, and recyclable polymer foam known for its excellent mechanical properties and cost-effectiveness. It is designed for use in lightweight sandwich structures exposed to static and dynamic loads and high temperatures during manufacturing.

Characteristics:

Easy processing with various resin and lamination processes.
High process temperature tolerance up to 150°C (302°F).
Excellent fatigue strength and chemical stability.
High compression and shear properties with low variance.
Good adhesion and thermal stability up to 100°C (212°F).
No water absorption, after expansion, or out-gassing.

Applications:

Wind Energy: Blades, nacelles.
Marine: Hulls, decks, superstructures, bulkheads, transoms, interiors.
Industrial: Covers, containers, reinforcements, x-ray tables, sporting goods.

Processing Methods:

Contact molding (hand/spray).
Vacuum infusion and resin infusion/injection (VARTM/RTM).
Adhesive bonding and prepreg processing.
Compression molding (GMT, SMC) and thermoforming.

Technical Specifications:

Density ranges from 105 to 135 kg/m³ depending on the type (T92.100, T92.110, T92.130).
Compressive strength ranges from 1.4 to 2.4 N/mm².
Tensile strength ranges from 2.3 to 3.3 N/mm².
Shear strength ranges from 0.9 to 1.3 N/mm².
Thermal conductivity at room temperature is approximately 0.034 to 0.036 W/m.K.

Dimensions:

Standard sheet width: 610 mm, length: 1220 mm, thickness: 5 to 100 mm.
Alternative dimensions available upon request.

Notes:
The data provided are approximate values for nominal density and DNV minimum values. The information is believed to be accurate but is not warranted for accuracy or results. No recommendation is made to infringe any existing patent.

Catalog excerpts

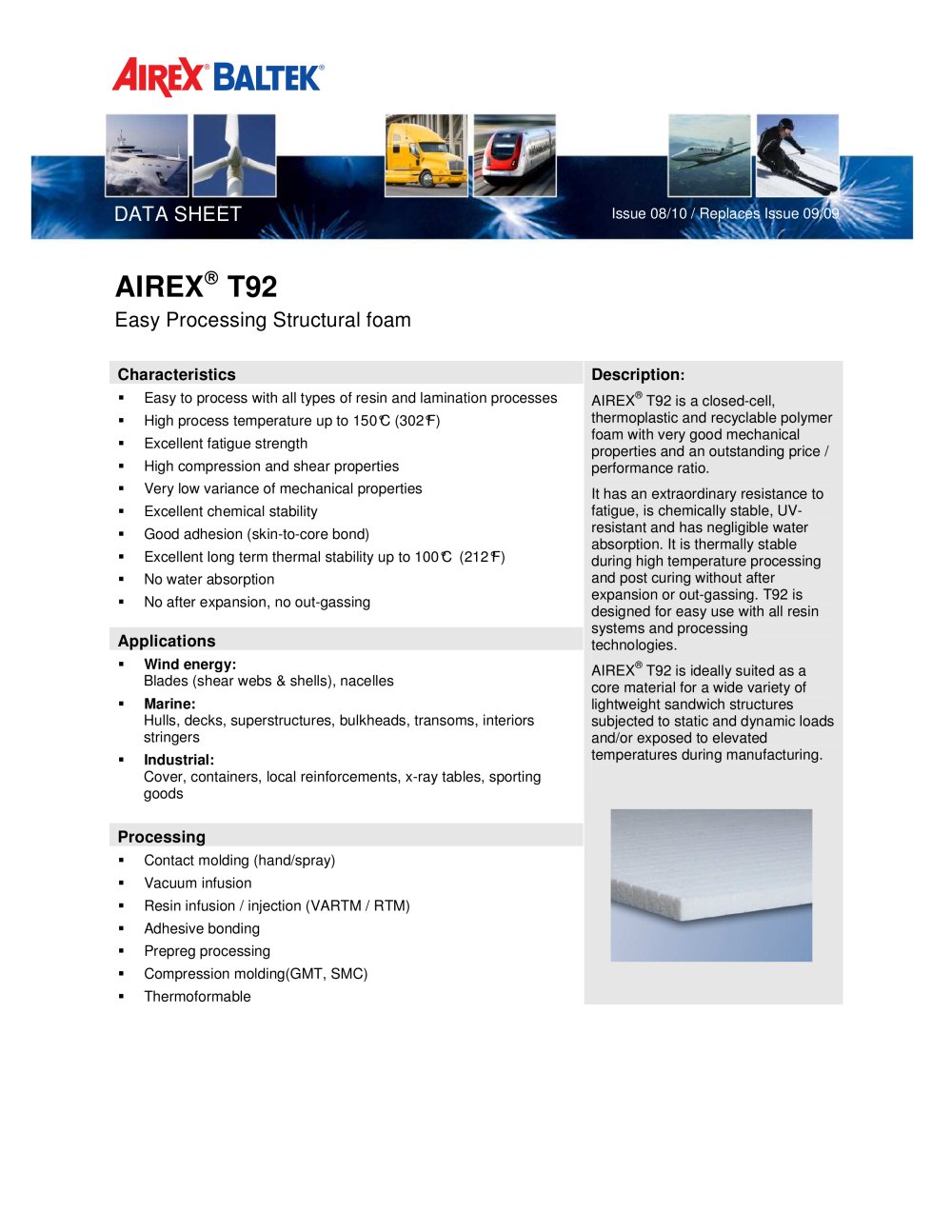

AIREX° T92 - Easy Processing Structural foam-1

DATA SHEET Issue 08/10 / Replaces Issue 09/09 AIREX T92 Easy Processing Structural foam Characteristics Easy to process with all types of resin and lamination processes High process temperature up to 150°C (302°F) Excellent fatigue strength High compression and shear properties Very low variance of mechanical properties Excellent chemical stability Good adhesion (skin-to-core bond) Excellent long term thermal stability up to 100°C (212°F) No water absorption No after expansion, no out-gassing Applications Wind energy: Blades (shear webs & shells), nacelles Marine: Hulls, decks, superstructures, bulkheads, transoms, interiors stringers Industrial: Cover, containers, local reinforcements, x-ray tables, sporting goods Processing Contact molding (hand/spray) Vacuum infusion Resin infusion / injection (VARTM / RTM) Adhesive bonding Prepreg processing Compression molding(GMT, SMC) Thermoformable Description: AIREX® T92 is a closed-cell, thermoplastic and recyclable polymer foam with very good mechanical properties and an outstanding price / performance ratio. It has an extraordinary resistance to fatigue, is chemically stable, UVresistant and has negligible water absorption. It is thermally stable during high temperature processing and post curing without after expansion or out-gassing. T92 is designed for easy use with all resin systems and processing technologies. AIREX® T92 is ideally suited as a core material for a wide variety of lightweight sandwich structures subjected to static and dynamic loads and/or exposed to elevated temperatures during manufacturing.

Open the catalog to page 1

AIREX° T92 - Easy Processing Structural foam-2

Issue 08/10 / Replaces Issue 09/09 3A COMPOSITES CORE MATERIALS www.corematerials.3AComposites.com Europe / Middle East / Africa: North America / South America: Asia / Australia / New Zealand: Airex AG Baltek Inc. 3A Composites (China) Ltd. Industrie Nord 26 108 Fairway Court Shangfeng Road 933, Building 6, Pudong 5643 Sins, Switzerland Northvale, NJ 07647, USA 201201 Shanghai, China Tel +41 41 789 66 00 Tel +1 201 767 14 00 Tel +86 21 585 86 006 Fax +41 41 789 66 60 Fax +1 201 387 66 31 Fax +86 21 338 272 98 [email protected] [email protected] [email protected]...

Open the catalog to page 2

AIREX° T92 - Easy Processing Structural foam-3

Open the catalog to page 3
