Single - pantograph flexible suction arms
2Pages

{{requestButtons}}

Catalog excerpts

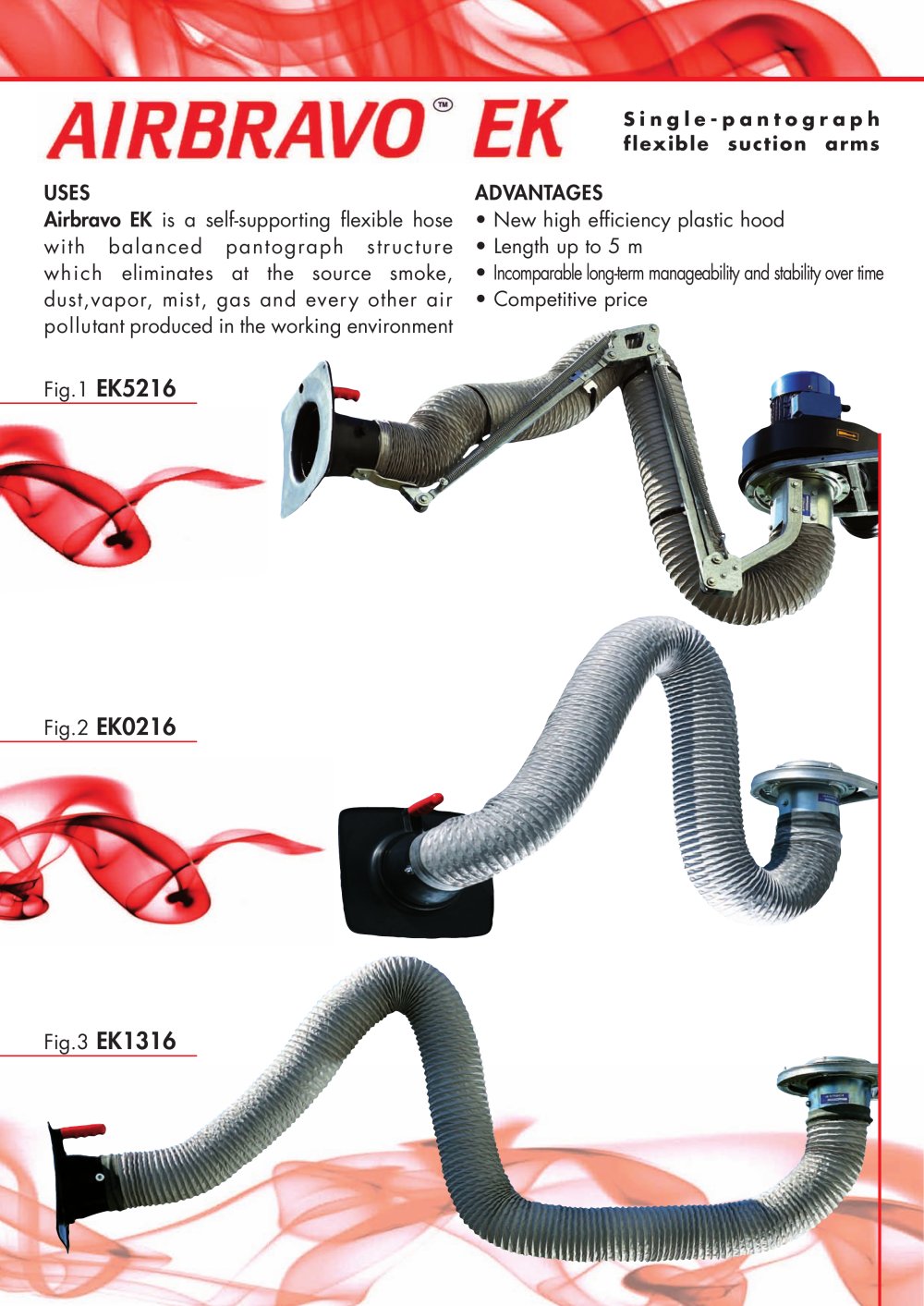

Single - pantograph flexible suction arms - 1

Fig.1 EK5216 Fig.2 EK0216 USES Airbravo EK is a self-supporting flexible hose with balanced pantograph structure which eliminates at the source smoke, dust,vapor, mist, gas and every other air pollutant produced in the working environment ADVANTAGES • New high efficiency plastic hood • Length up to 5 m • Incomparable long-term manageability and stability over time • Competitive price S i n g l e - p a n t o g r a p h flexible suction arms Fig.3 EK1316

Open the catalog to page 1
Single - pantograph flexible suction arms - 2

MODELS Available in standard models with support structure located internally or externally to the flexible hose or Special in AISI316 stainless steel or for High Temperatures. The model with the flexible tube external to the structure is also available in the ATEX II-2 Dust/Gas version FEATURES High efficiency plastic hood with screen, handle and air register incorporated. Flexible Hose 160 mm Dia. fireproof and resistant to a maximum temperature of 70°C and vacuum of 1,6 kPa (at 20°C). Pantograph support structure, balanced by springs and frictions and revolving base on low friction...

Open the catalog to page 2
