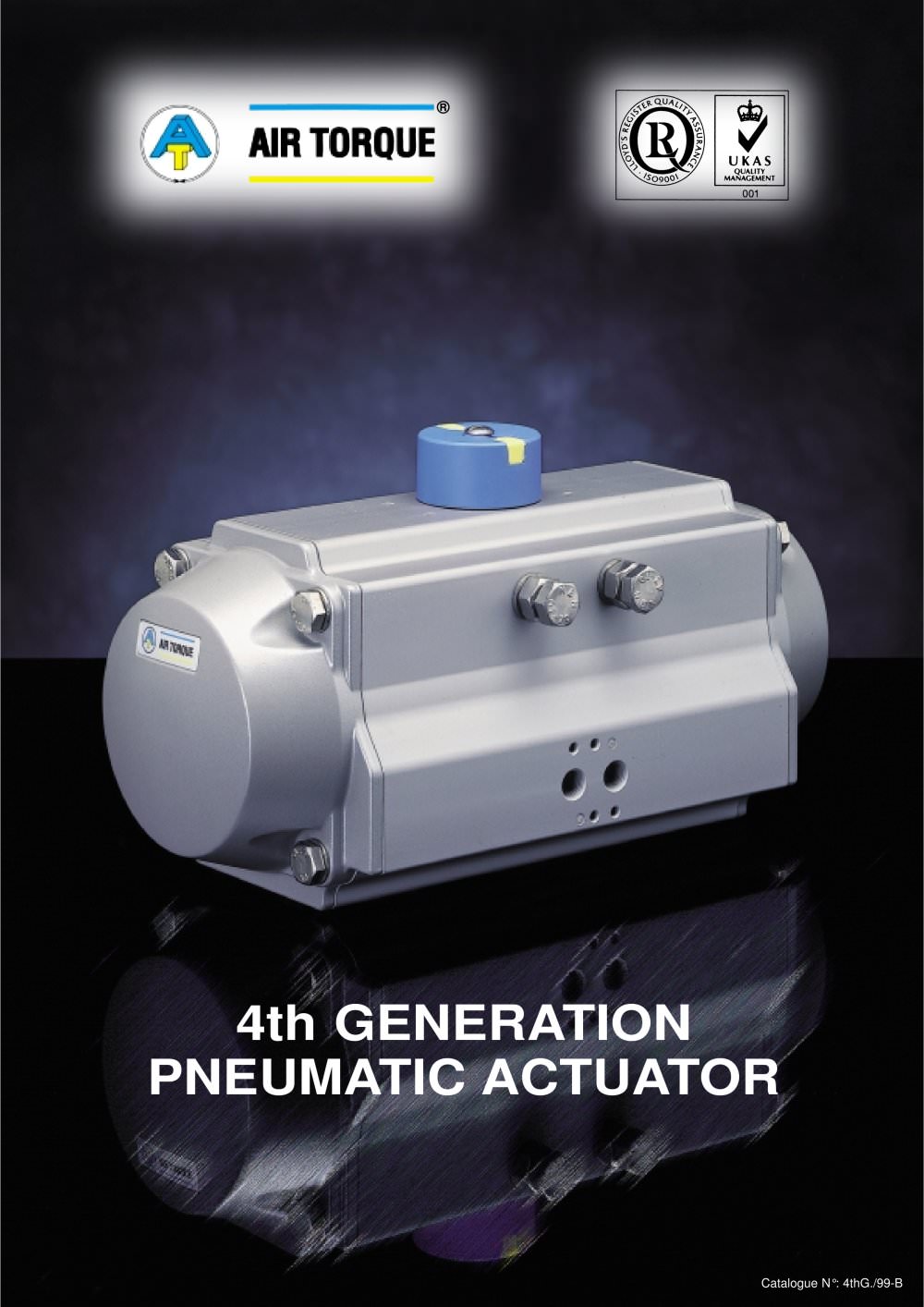

4th GENERATION PNEUMATIC ACTUATOR Catalogue N°: 4thG./99-B ®

3 ® RANGE OF OPTIONS, ACCESSORIES AND QUALITY MANUFACTURING CONSTRUCTION 7. Multiple bearings and guides on racks and pistons for precise operation, low friction, high cycle life and prevent shaft blowout. 11. Selected high quality bearings and seal for low friction, high cycle life and a wide operating temperature range. 12. Internal and external stainless steel fasteners for long term corrosion resistance. 13. Full conformance to the latest specifications: ISO 5211, DIN 3337 and VDI/VDE 3845 NAMUR for product interchangeability and easy mounting of solenoids, limit switches and other accessories....

® 4 MULTI-FUNCTION INDICATOR The multi-function indicator which is supplied as standard on 4th Generation Actuator and manufactured in composite material is suitable for: 1. Position indication Visual indication of the Actuator/Valve position is shown via a color coded insert and Namur slot. The indicator is suitable for all types of drive shaft and either direction of actuator rotation. 3. Direct mounting of sensors The indicator can be supplied with metal inserts to permit easy and economical installation of many types of sensors: P+F, IFM, TURK, etc. ANCILLARIES INSTALLATION WITHOUT MULTI-FUNCTION...

5 ® OPERATING CONDITIONS 1. Operating media: Dry or lubricated air or inert/non-corrosive gases on condition that they are compatible with internal actuator parts and lubricant. The operating media must have a dew point equal to -20°C (-40F) or at least 10°C below the ambient temperature. The maximum particle size must not exceed 30 ì. 2. Supply pressure: For Double Acting and Spring Return actuators the maximum supply pressure is: 8 Bar (116 PSI). Minimum supply pressure is 2.5 Bar (36 PSI). 3. Operating Temperature: * Standard product from -20°C (-4°F) to +80°C (+176°F ) * Low temperature LT...

7 ® ATB0 DIMENSIONS, MATERIAL AND TECHNICAL DATA Detail " X " 19 18 08a 08 13 øZ L M P Square C B A øH Detail " Y " 11a 09 12 21 04 14 11 10 03 02 16 22 01 05 39 41 BOTTOM VIEW Q W S R CH h Diagonal Square Parallel Square 45° 45° I Detail "Y" M5xD F G Detail "X" G1/8" ISO228-1 PORT '4' PORT '2' M5xE M6xO N TOP VIEW Suggested SPARE PARTS For maintenance (A) For other protection levels available see page 17 obviously on the field applications when one or more of the above parameter are different, the moving time will be different.

® 8 METRIC DIMENSIONS AND TECHNICAL DATA BOTTOM VIEW - ISO 5211 Q Q1 W1 W VDI/VDE 3845 D "Model AT700" I PORT '2' PORT '4' T - Connection M5xE M6x12 Detail " X " X B L M B C A P 4 øZ 0 R S F G N 4 C CH h Detail " X " H Detail " Y " Detail " Y " L M 45° 45° Diagonal Square Parallel Square 53 64 (A) The above indicated moving time of the actuator, are obtained in the following test conditions: (1) Room Temperature, (2) Actuator Stoke 90°, (3) Solenoid Valve with Orifice Of 4 mm and a flow capacity Qn 400 L/min., (4) Inside pipe diameter 8 mm, (5) Medium clean air, (8) Air supply pressure 5,5 bar...

9 ® IMPERIAL DIMENSIONS AND TECHNICAL DATA BOTTOM VIEW - ISO 5211 Q Q1 W1 W VDI/VDE 3845 D "Model AT700" I PORT '2' PORT '4' T - Connection M5xE M6x12 Detail " X " X B L M B C A P 4 øZ 0 R S F G N 4 C CH h Detail " X " H Detail " Y " Detail " Y " L M Diagonal Square Parallel Square 45° 45° 115 139 (A) The above indicated moving time of the actuator, are obtained in the following test conditions: (1) Room Temperature, (2) Actuator Stoke 90°, (3) Solenoid Valve with Orifice Of 4 mm and a flow capacity Qn 400 L/min., (4) Inside pipe diameter 8 mm, (5) Medium clean air, (8) Air supply pressure 5,5...

® 10 METRIC TORQUE RATINGS Out-put torque available when air supply fails

11 ® METRIC TORQUE RATINGS Out-put torque available when air supply fails Torque Torque Torque

® 12 IMPERIAL TORQUE RATINGS Out-put torque available when air supply fails

13 ® IMPERIAL TORQUE RATINGS Out-put torque available when air supply fails Torque Torque Torque 9900°° End Star

® 14 TECHNICAL DATA FOR 120° AND 180° ACTUATORS IN METRIC AND IMPERIAL DIMENSIONS 120 and 180° actuator are available only in double acting version ther actuator sizes (ex. AT 350 180°) would be evaluated on request Different Actuator strokes other than 120° and 180° (e.g. 135 Stoke) are available on request. Cautions: obviously on the field applications when one or more of the above parameter are different, the moving time will be different. (A) The above indicated moving time of the actuator, are obtained in the following test conditions: (1) Room Temperature, (2) Actuator Stoke 120° and 180°,...

15 ® 3 POSITION ACTUATOR SIZING INFORMATION AIR TORQUE 3 position pneumatic actuator provide an operation of 0°- 45°- 90° or 0°-90°-180°. The intermediate position is achieved by a mechanical stop of movement on the 2 auxiliary pistons. This intermediate stop positions adjustable e.g. 90° actuators can provide 20° 30° 50° 75° etc. In order to control the operation of AT 3 position pneumatic actuators a system of solenoid valves controlling a sequence of air supplies to the actuator is required as described below: BALL VALVE Ball valve concept of construction is based essentially on a polished...

® 16 SIZING: DOUBLE ACTING ACTUATOR With rack and pinion construction the output torque of an actuator is obtained by multiplying the piston force (given by air supply pressure) by the pitch shaft radius (lever arm) as shown in fig. 1 less the force lost for friction (efficiency). Because of this concept, the output torque is linear as shown in the diagram A in both clockwise and counterclockwise rotation. The suggested safety factor for double acting actuators in normal working conditions is 15-20%. Sizing example of Double Acting AT actuator (see also technical data): • Published butterfly...
