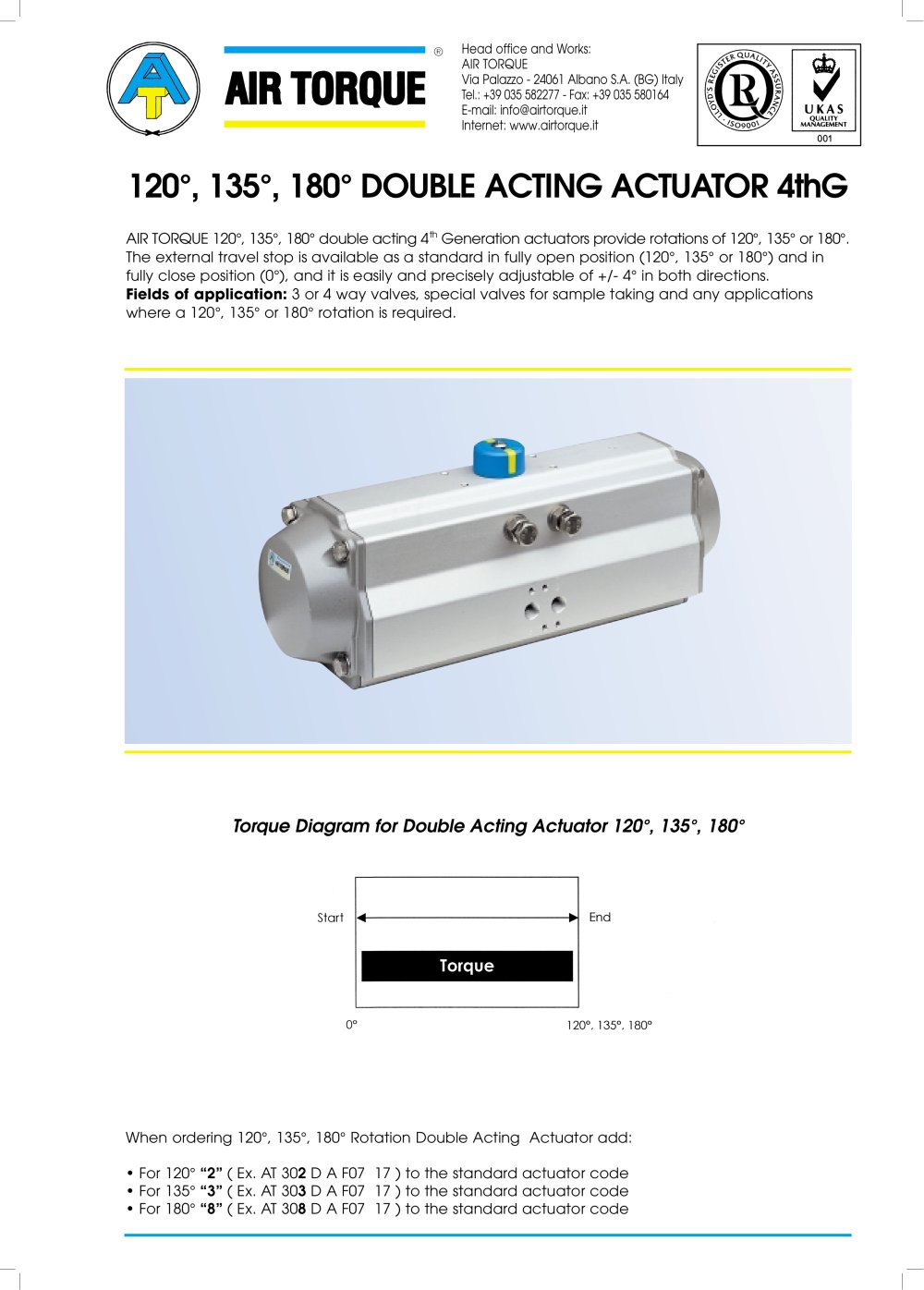

120°, 135°, 180° DOUBLE ACTING ACTUATOR 4thG AIR TORQUE 120°, 135°, 180° double acting 4th Generation actuators provide rotations of 120°, 135° or 180°. The external travel stop is available as a standard in fully open position (120°, 135° or 180°) and in fully close position (0°), and it is easily and precisely adjustable of +/- 4° in both directions. Fields of application: 3 or 4 way valves, special valves for sample taking and any applications where a 120°, 135° or 180° rotation is required. When ordering 120°, 135°, 180° Rotation Double Acting Actuator add: • For 120° “2” ( Ex. AT 302 D A F07 17 ) to the standard actuator code • For 135° “3” ( Ex. AT 303 D A F07 17 ) to the standard actuator code • For 180° “8” ( Ex. AT 308 D A F07 17 ) to the standard actuator code Torque Diagram for Double Acting Actuator 120°, 135°, 180° Head office and Works: AIR TORQUE Via Palazzo - 24061 Albano S.A. (BG) Italy Tel.: +39 035 582277 - Fax: +39 035 580164 E-mail: [email protected] Internet: www.airtorque.it
