Vertical Oil Mist Collector M330


Catalog excerpts

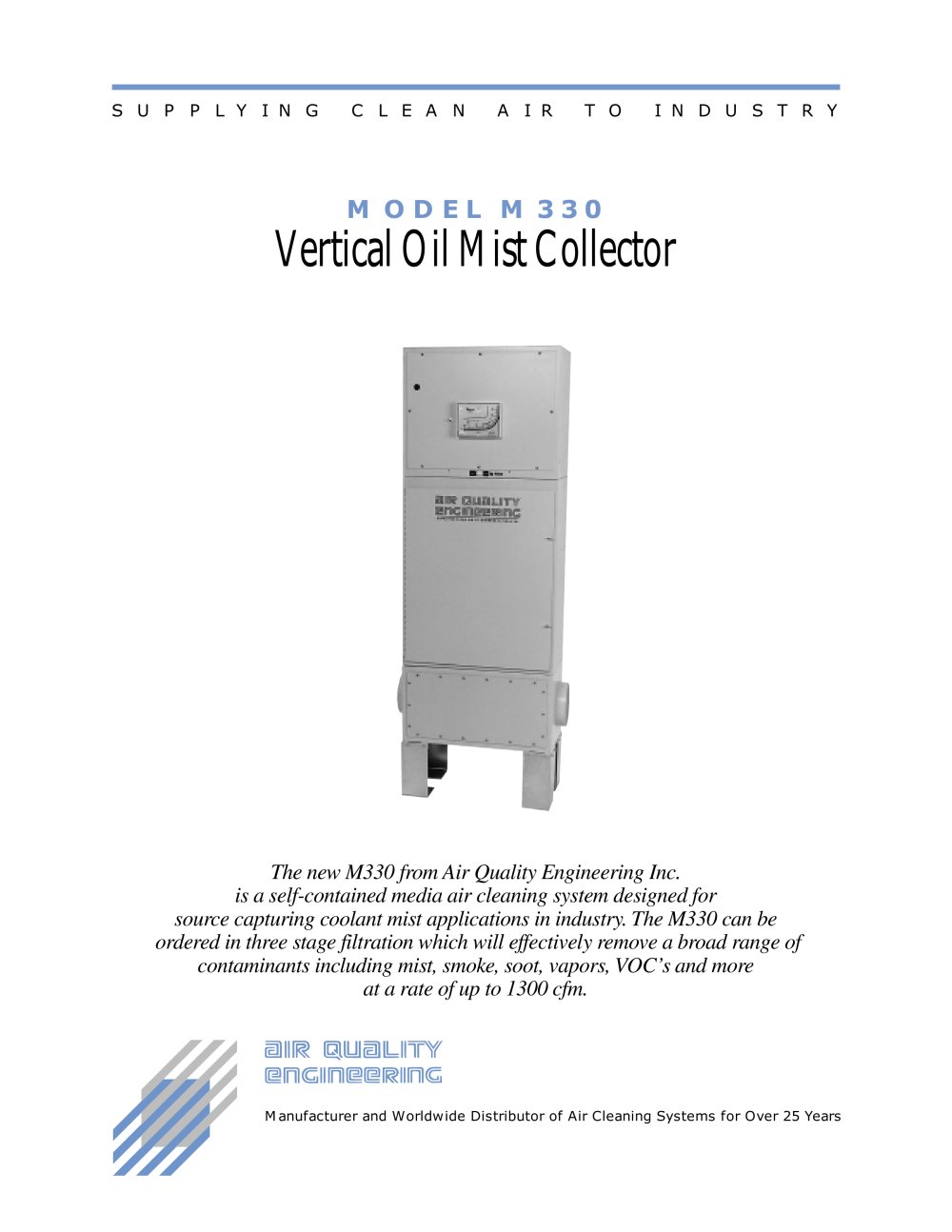

Vertical Oil Mist Collector M330 - 1

S U P P L Y I N G C L E A N A I R T O I N D U S T R Y MODEL M330 Vertical Oil Mist Collector The new M330 from Air Quality Engineering Inc. is a self-contained media air cleaning system designed for source capturing coolant mist applications in industry. The M330 can be ordered in three stage filtration which will effectively remove a broad range of contaminants including mist, smoke, soot, vapors, VOC’s and more at a rate of up to 1300 cfm. Manufacturer and Worldwide Distributor of Air Cleaning Systems for Over 25 Years

Open the catalog to page 1
Vertical Oil Mist Collector M330 - 2

PN51685 M330 FEATURES & SPECIFICATIONS How It Works: Mist laden air enters the unit from the base where it turns upward 90º before entering the two aluminum mesh impingers. The aluminum mesh impingers screen out the large droplets from the airsteam before entering the primary filter. The primary filter condenses the remaining mist allowing the clean air to discharge from the top of the unit. Condensed mist drains out of the bottom of the unit. STANDARD FEATURES: 36 months parts warranty. One HP maintenance-free motor. 10 power cord with molded plug. Sump kit. Two 8 collars for ducting....

Open the catalog to page 2
