Reverse Pulse Cleaning Cartridge Dust Collector

Product catalog summary

Overview: The AQE 8000 is a self-cleaning, reverse pulse cartridge dust collector designed for continuous duty applications, offering high efficiency and extended filter life. Manufactured by Air Quality Engineering Inc., a company with 30 years of experience in air cleaning systems.

Specifications:

Dimensions: Two configurations available - 113”H x 45”W x 83”D (1400 lbs. installed, 1625 lbs. shipping) and 143”H x 45”W x 88”D with motor options (1650 lbs. installed, 1875 lbs. shipping for 7.5 Hp; 1750 lbs. installed, 1975 lbs. shipping for 15 Hp).
Blower and Motor: Available in 7.5 HP and 15 HP with various voltage and phase options, drawing different amps based on configuration.

Pulse Controller: Features a photohelic controller housed in a NEMA 4 enclosure, allowing for adjustable preset cleaning schedules based on pressure drop across filters. Offers both on-line and off-line cleaning options.

Reverse Pulse System: Utilizes 1.5” valves and sonic nozzles to clean cartridge filters by directing increased air velocity to remove contaminants.

Options:

Damper options for both 7.5 Hp and 15 Hp models.
Blower silencers available in straight and 90° elbow configurations for both motor options.

Cartridges: Made from non-woven filter media with 99.8% efficiency for .5 micron particles, capable of withstanding temperatures up to 200°F. Flame retardant and HO treated polyester options available.

Blowers: Two blower options with maximum airflow capacities at various external static pressures. The 7.5 HP blower offers airflow from 4200 cfm at 4” WG to 2600 cfm at 10” WG, while the 15 HP blower ranges from 6800 cfm at 4” WG to 5200 cfm at 12” WG. Actual airflow may vary based on contaminants.

Contact Information: Air Quality Engineering Inc., 7140 Northland Drive North, Brooklyn Park, MN 55428-1520 USA. Toll-Free: 1-800-328-0787, Fax: (763) 531-9900, Email: [email protected], Website: www.air-quality-eng.com.

Note: The company reserves the right to make changes in design and specifications without notice.

Catalog excerpts

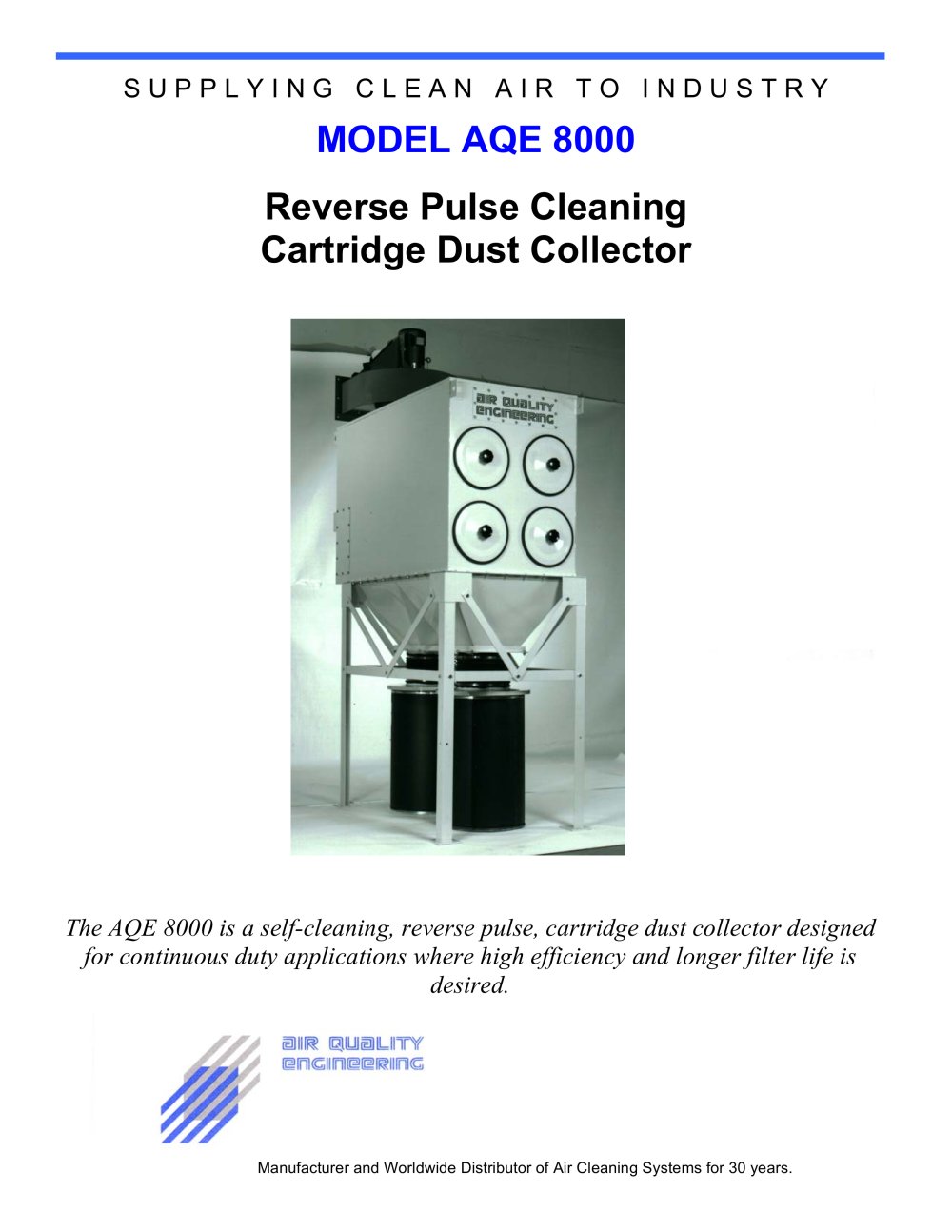

Reverse Pulse Cleaning Cartridge Dust Collector-1

S U P P L Y I N G C L E A N A I R T O I N D U S T R Y MODEL AQE 8000 Reverse Pulse CleaningCartridge Dust Collector > The AQE 8000 is a self-cleaning, reverse pulse, cartridge dust collector designedfor continuous duty applications where high efficiency and longer filter life isdesired. Manufacturer and Worldwide Distributor of Air Cleaning Systems for 30 years. size="-3">
