Introduction

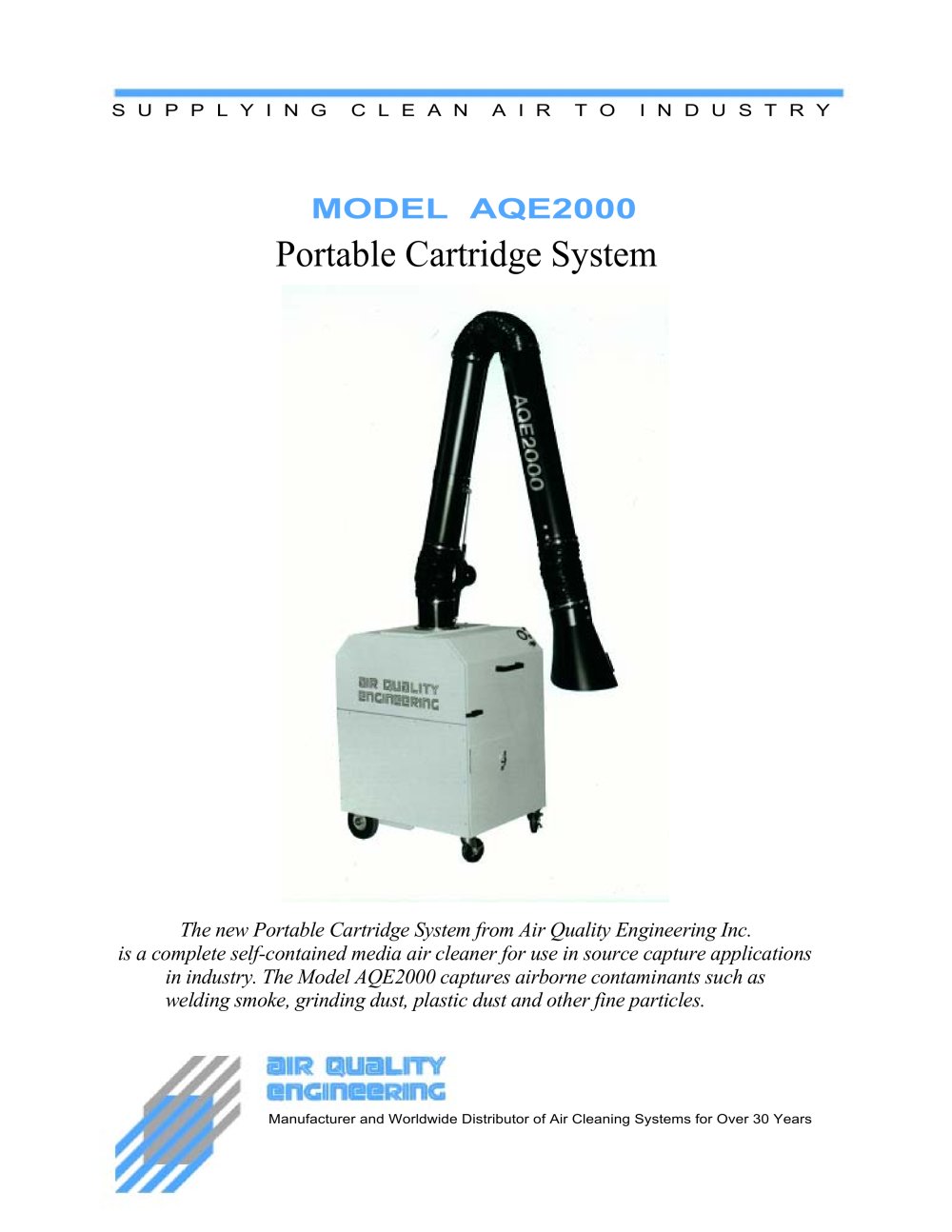

The Model AQE2000 is a portable cartridge system designed by Air Quality Engineering Inc. for industrial source capture applications. It effectively captures airborne contaminants such as welding smoke, grinding dust, and plastic dust.

Principles of Operation
The system operates by drawing in contaminated air at a rate of 1100 cubic feet per minute (cfm) through a hood/arm assembly. Heavy particles are directed into clean-out trays, while submicron particles are trapped in two highly efficient cartridge filters. Clean air is then diffused out of the unit. The filters can be cleaned using a reverse pulse system activated by a shop air hose.

Standard Features

• Air volume: 1100 cfm
• Reverse pulse cleaning system
• Externally supported 11’ arm with 360° rotation
• 1.5 horsepower motor
• 382 square feet of filter media
• 99.8% efficiency at 0.5 micron
• Large 8” diameter front wheels
• Quiet operation
• Three-year limited warranty

Optional Features

• Halogen light
• Second stage HEPA filter

Specifications

• Dimensions: 46”H x 28.5”W x 37”D
• Weight: 400 lbs (actual), 450 lbs (shipping)
• Arm Assembly: 11’ long x 8” diameter with gas spring for easy movement
• Hood: 18 Ga. aluminum with handle
• Motor: 1.5 HP thermally protected
• Blower: Direct drive, backward incline
• Cabinet: 16 Ga. welded CRS steel
• Power: 120V/60 Hz/14 amp or 208-240V/60 Hz/8 amp
• Casters: Two 8” diameter semi-pneumatic front wheels and two heavy-duty swivel casters
• Finish: Durable powder coat paint
• Filtration: Two high-efficiency cartridge filters, 99.8% efficient at 0.5 micron
• Filter Cleaning: Reverse Pulse Jet System requiring 80-120 psi compressed air
• Noise Level: 73 dBa at 6”
• Warranty: Limited three-year warranty

Contact Information
Air Quality Engineering, Inc., 7140 Northland Drive North, Brooklyn Park, MN 55428-1520, USA. Phone: (763) 531-9823, Toll-Free: 1-800-328-0787, Fax: (763) 531-9900, Email: [email protected], Website: www.air-quality-eng.com

Note
Air Quality Engineering, Inc. reserves the right to make changes in design and specification without notice.
