Introduction

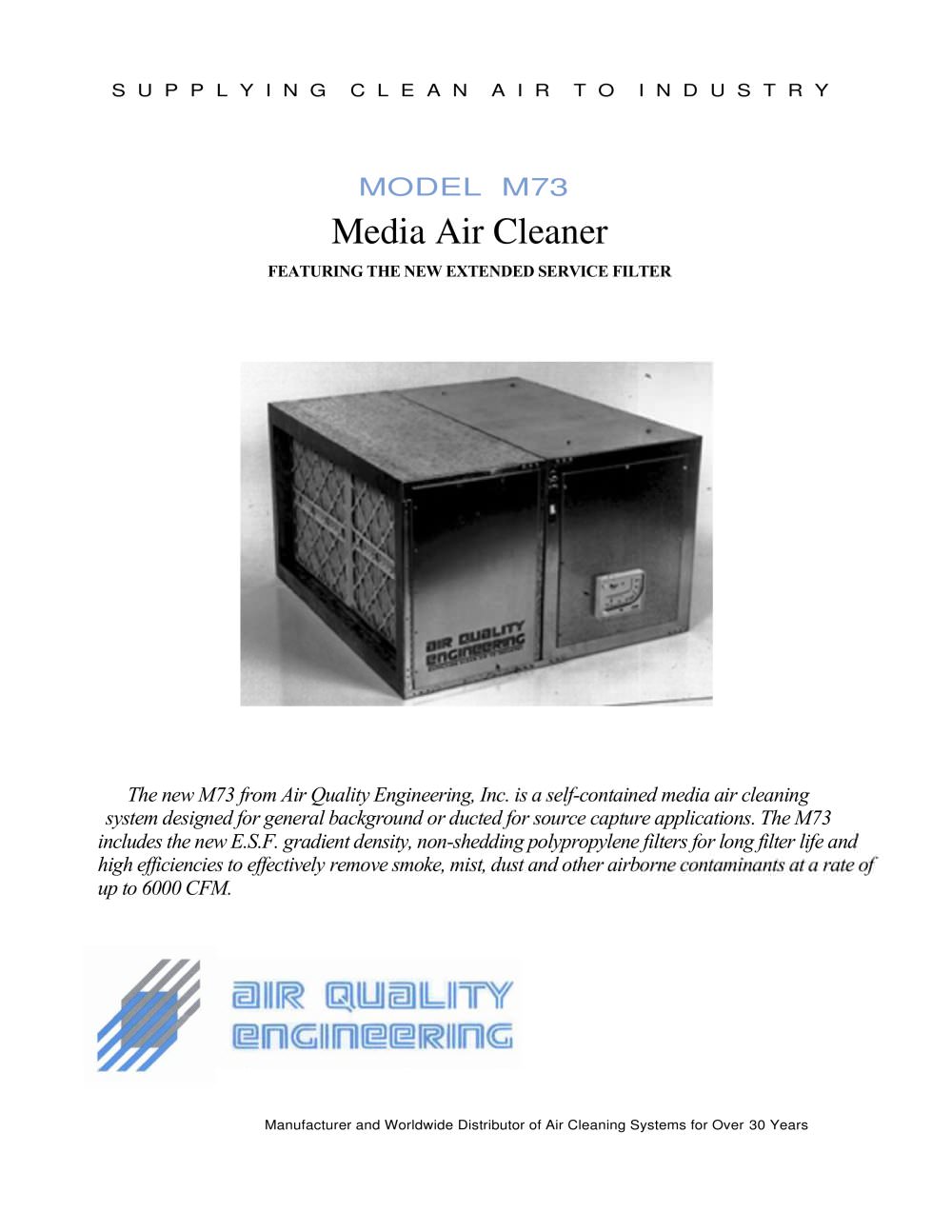

The M73 Media Air Cleaner by Air Quality Engineering, Inc. is a self-contained system designed for both general background and ducted source capture applications. It features new E.S.F. gradient density, non-shedding polypropylene filters, providing long filter life and high efficiency in removing smoke, mist, dust, and other airborne contaminants at a rate of up to 6000 CFM.

Features & Specifications

• Dimensions: 49.50 L x 46.50 W x 31.60 H inches
• Weight: Installed: 405 lbs.; Shipping: 465 lbs.
• Cabinet: Made of 16 gauge galvanized steel
• Power Input: 208-240 Vac, 60 Hz, 3Ø, 9 Amps or 440-480 Vac, 60 Hz, 3Ø, 5 Amps
• Primary Filter: Rigid V-Bank configuration with non-shedding polypropylene elements, two filters per unit, each weighing 13.25 lbs. and covering a collection area of 306 sq. ft.
• Airflow/Efficiency: Varies from 6000 CFM at MERV 9 to 4500 CFM at MERV 16
• Ambient Temperature: Maximum 175ºF
• Mounting: Can be mounted standing or hanging with horizontal airflow; ceiling mount brackets are standard
• Prefilter: Two 30-35% efficient pleated filters with a total media area of 59 sq. ft.
• Motor: 5 HP with sealed ball bearings and thermal protection
• Blower: Direct driven, backward inclined steel wheel
• Instrumentation: Includes a factory-installed dirty filter gauge
• Filter Access: Side load track system with hinged access door
• Additional Features: 3-year parts warranty, 400 sq. ft. of media, 4-way adjustable exhaust louvers, motor starter and control circuitry, dirty filter gauge

Options
Custom source capture plenum, impinger/drain pan, 95% DOP efficiency, activated carbon module, electrostatic module.

Contact Information
Air Quality Engineering, Inc., 7140 Northland Drive North, Brooklyn Park, MN 55428-1520, USA. Phone: (763) 531-9823, Toll-Free: 1-800-328-0787, Fax: (763) 531-9900, Email: info.air-quality-eng.com, Website: www.air-quality-eng.com

Note: The company reserves the right to make changes in design and specification without notice.
