Industrial Air Filter

Industrial Air Filter

Industrial Air Filter

Product catalog summary
Overview: The Smokemaster® M67 is a self-contained, multi-stage media air cleaning system designed for industrial use. It is suitable for light-duty applications such as sanding, buffing, welding, or automotive refinishing, with a capacity of up to 1980 cubic feet per minute (cfm).
Specifications:
  • Cabinet: Constructed from 18-gauge steel with a black epoxy paint finish.
  • Power Input: Available in two configurations: 110-120 Vac, 1 Phase, 8.0 amps or 208-240 Vac, 1 Phase, 4.0 amps.
  • Motor: Equipped with a heavy-duty ¾ HP, 3-speed motor featuring sealed ball bearings.
  • Blower: Direct drive with forward-curved design.
  • Airflow: Capable of handling up to 2000 cfm.
  • Filtration: Includes a pre-filter (24" x 24" x 2" 35% pleated media) and a primary filter with cube or bag options, offering efficiencies ranging from 35% to 95%.
  • Warranty: 36-month parts warranty.
Additional Resources: A detailed data sheet for the M67 Industrial Air Filter is available for download.
See more

Catalog excerpts

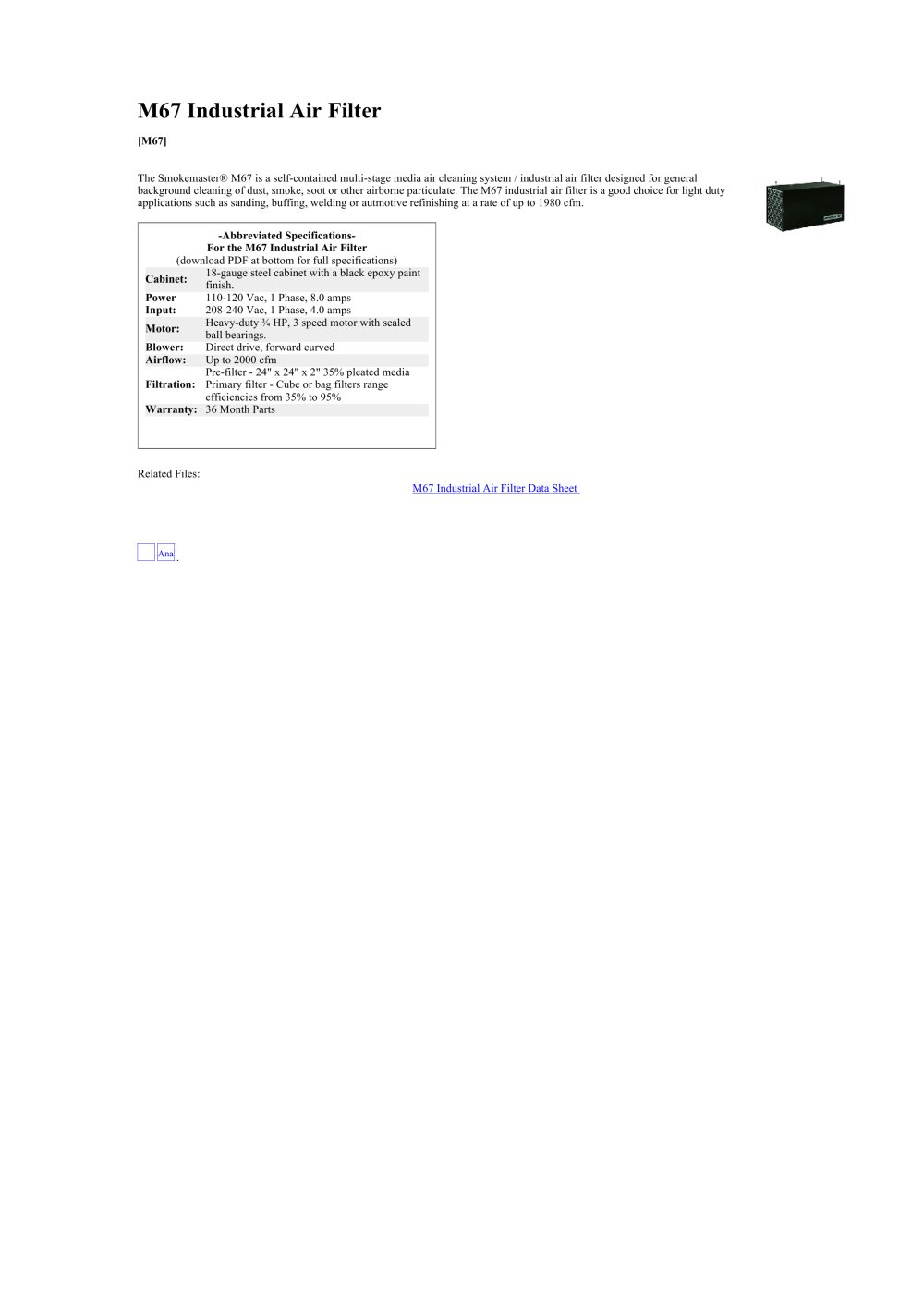

Industrial Air Filter-1

[M67] The Smokemaster M67 is a self-contained multi-stage media air cleaning system / industrial air filter designed for general background cleaning of dust, smoke, soot or other airborne particulate. The M67 industrial air filter is a good choice for light duty applications such as sanding, buffing, welding or autmotive refinishing at a rate of up to 1980 cfm. -Abbreviated Specifications- For the M67 Industrial Air Filter (download PDF at bottom for full specifications) Cabinet: 18-gauge steel cabinet with a black epoxy paint finish. Power Input: 110-120 Vac, 1 Phase, 8.0 amps 208-240 Vac, 1 Phase, 4.0 amps Motor: Heavy-duty ξ HP, 3 speed motor with sealed ball bearings. Blower: Direct drive, forward curved Airflow: Up to 2000 cfm Pre-filter - 24" x 24" x 2" 35% pleated media Primary filter - Cube or bag filters range efficiencies from 35% to 95% Filtration: Warranty: 36 Month Parts Related Files: M67 Industrial Air Filter Data Sheet > Ana l size="-1">

 Open the catalog to page 1
