Air Quality Engineering
FumeFighter® Indoor Air Cleaners - Gas & Fume Extractor

FumeFighter® Indoor Air Cleaners - Gas & Fume Extractor

Product catalog summary

Overview: The FumeFighter® is a compact, high-efficiency fume extractor designed to protect workers from harmful particulates, fumes, and gases. It is suitable for various applications such as electronics soldering, jewelry repair, and cleanrooms.

Key Features:

High Efficiency: Utilizes true HEPA filtration with 82 sq. ft. of media, achieving 99.97% efficiency at 0.3 microns.
Triple Filtration: Includes two stages of mechanical filtration followed by activated carbon for gaseous contaminants.
Adjustable Airflow: Offers infinitely adjustable speed up to 225 cubic feet per minute.
Compact Design: Dimensions of 22.5” x 17” x 27” and weighs 70 lbs., fitting under most workstations.
Quiet Operation: Features a bottom discharge, dynamically balanced impeller, and optional silencer.
Economical: Long-lasting filters and energy-efficient design reduce costs.
Optional Collector Arm: A 48” long, 3” diameter stainless steel arm that can be positioned as needed.

Principles of Operation: Polluted air is drawn through a prefilter for larger particles, then through a HEPA filter for sub-micron particles, and finally through a carbon filter to remove odors.

Additional Features:

3-year limited warranty.
Infinitely variable motor speed controller.
Individual carbon and HEPA cartridges for cost-effective maintenance.

Specifications:

Dimensions: 22.5” x 17” x 27”.
Weight: 70 lbs.
Airflow: Up to 225 cubic feet per minute.
Efficiency: 99.97% at 0.3 microns.
Construction: 18 GA welded steel cabinet with chemical-resistant finish.
Electrical: 115 Vac, 60 Hz, 2 amps or 230 Vac, 60 Hz, 1 amp.
Filters: Prefilter with carbon mesh, HEPA filter, and carbon filter with potassium permanganate.
Motorized Impeller: Backward curved, vibration-free, direct drive.
Power Cord: 10-foot with standard molded plug.
Optional Collector Arm: 48” long, 3” diameter, with up to two arms mountable per unit.

Contact Information: Air Quality Engineering Inc., 7140 Northland Drive North, Brooklyn Park, MN 55428-1520 USA. Phone: 1-800-328-0787, Fax: (763) 531-9900, Email: [email protected], Website: www.air-quality-eng.com

Catalog excerpts

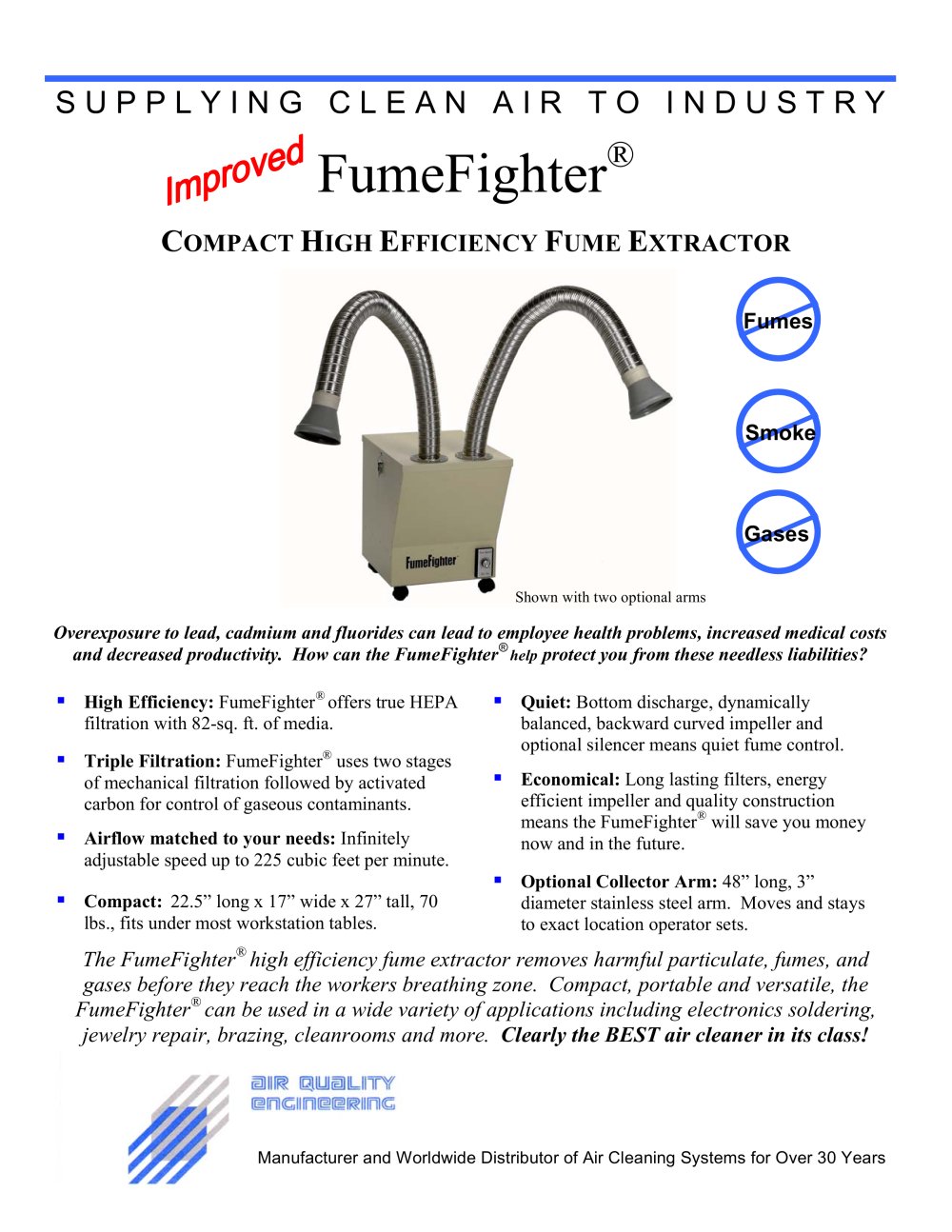

FumeFighter® Indoor Air Cleaners - Gas & Fume Extractor-1

Shown with two optional arms Overexposure to lead, cadmium and fluorides can lead to employee health problems, increased medical costsand decreased productivity. How can the FumeFighter > ή help protect you from these needless liabilities? > High Efficiency: FumeFighter > î offers true HEPAfiltration with 82-sq. ft. of media. > Quiet: Bottom discharge, dynamicallybalanced, backward curved impeller andoptional silencer means quiet fume control. > Triple Filtration: FumeFighter > uses two stagesof mechanical filtration followed by activatedcarbon for control of gaseous contaminants. > Economical: Long lasting filters, energyefficient impeller and quality constructionmeans the FumeFighter > will save you moneynow and in the future. > Airflow matched to your needs: Infinitelyadjustable speed up to 225 cubic feet per minute. > Optional Collector Arm: 48Ô long, 3diameter stainless steel arm. Moves and staysto exact location operator sets. > Compact: 22.5 long x 17Ԕ wide x 27 tall, 70lbs., fits under most workstation tables. > Manufacturer and Worldwide Distributor of Air Cleaning Systems for Over 30 Years size="-1">

Open the catalog to page 1
