Dust Collectors
2Pages

Catalog excerpts

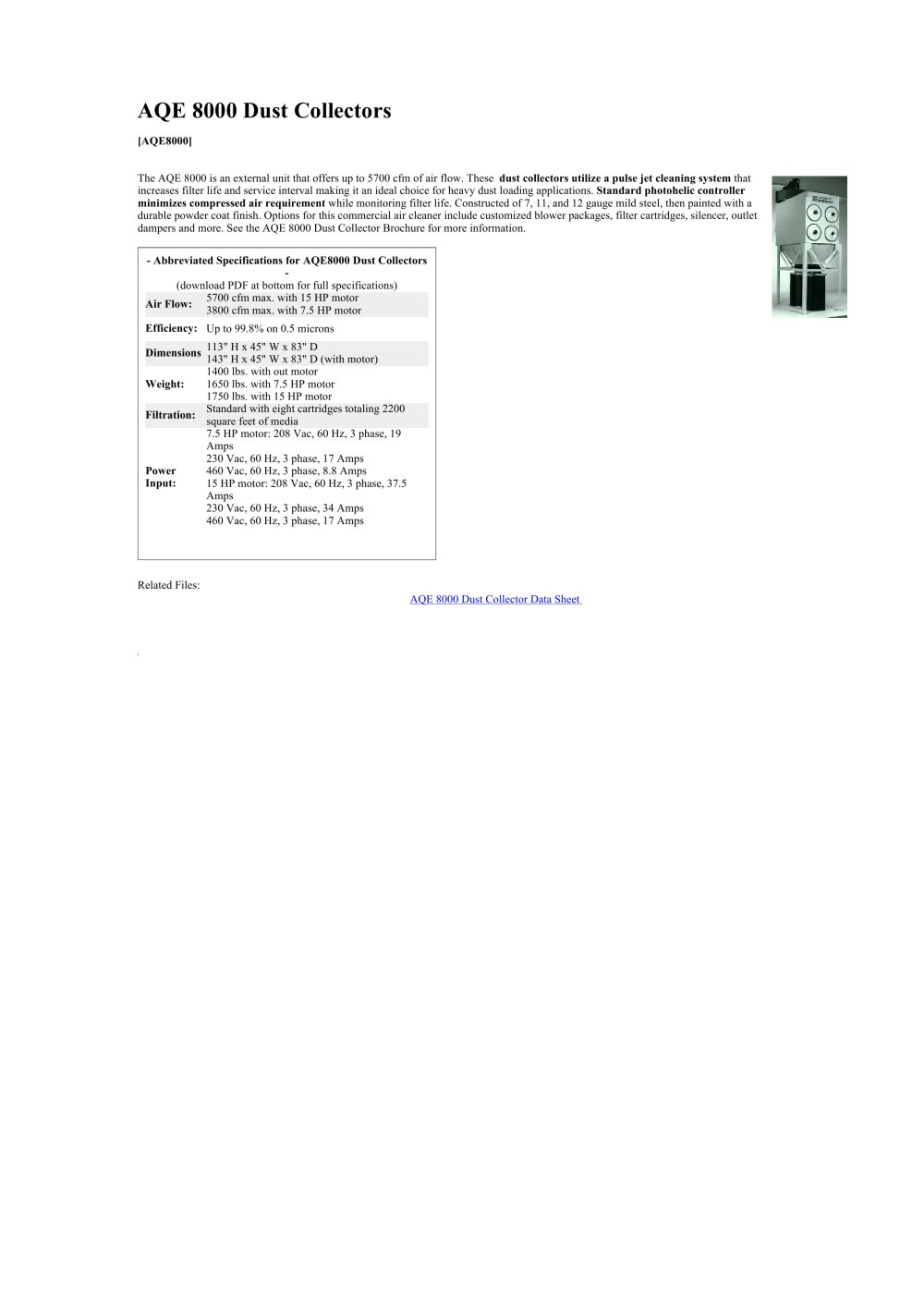

[AQE8000] The AQE 8000 is an external unit that offers up to 5700 cfm of air flow. These dust collectors utilize a pulse jet cleaning system that increases filter life and service interval making it an ideal choice for heavy dust loading applications. Standard photohelic controller minimizes compressed air requirement while monitoring filter life. Constructed of 7, 11, and 12 gauge mild steel, then painted with a durable powder coat finish. Options for this commercial air cleaner include customized blower packages, filter cartridges, silencer, outlet dampers and more. See the AQE 8000 Dust Collector Brochure for more information. - Abbreviated Specifications for AQE8000 Dust Collectors - (download PDF at bottom for full specifications) Air Flow: 5700 cfm max. with 15 HP motor 3800 cfm max. with 7.5 HP motor Efficiency: Up to 99.8% on 0.5 microns Dimensions 113" H x 45" W x 83" D 143" H x 45" W x 83" D (with motor) 1400 lbs. with out motor 1650 lbs. with 7.5 HP motor 1750 lbs. with 15 HP motor Weight: Filtration: Standard with eight cartridges totaling 2200 square feet of media 7.5 HP motor: 208 Vac, 60 Hz, 3 phase, 19 Amps 230 Vac, 60 Hz, 3 phase, 17 Amps 460 Vac, 60 Hz, 3 phase, 8.8 Amps 15 HP motor: 208 Vac, 60 Hz, 3 phase, 37.5 Amps 230 Vac, 60 Hz, 3 phase, 34 Amps 460 Vac, 60 Hz, 3 phase, 17 Amps Related Files: Power Input: AQE 8000 Dust Collector Data Sheet >

Open the catalog to page 1
