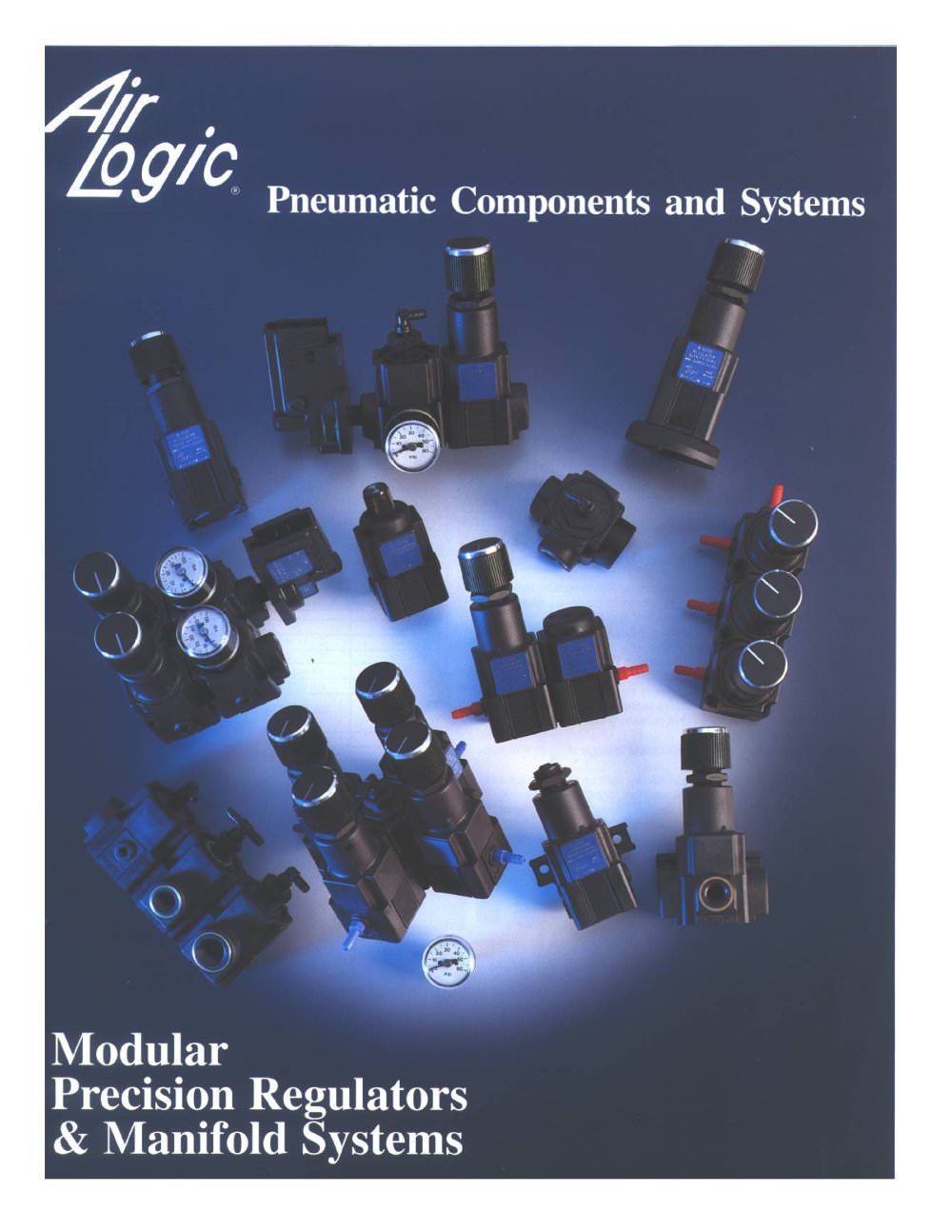

Air Logic's Regulator & Manifold System Catalog

Product catalog summary

Model Number Selection
The document provides guidelines for selecting model numbers for precision pressure regulators, detailing the output range, adjustment style, and accessory ports. The standard configuration includes an input port, an output port, and two blank ports, with options for additional accessory ports.

Introduction to Air Logic
Air Logic, a division of Fred Knapp Engraving Company, specializes in pneumatic and vacuum control equipment. Their products, including precision pressure regulators and modular manifold systems, are suitable for various applications such as instrumentation, medical, and industrial uses, featuring excellent repeatability and sensitive adjustments.

Modular Precision Regulator & Manifold Systems
The document outlines the unique modular dovetail design, allowing for individual or combined use of pneumatic components. The precision pressure regulators offer a 20-turn adjustment range and are available in various thread sizes. The modular manifold system supports different pneumatic accessories.

Specifications and Materials
The precision pressure regulators have a maximum supply of 150 PSI and operate within a temperature range of 40° to 150°F. They feature a glass-filled Celcon housing, carbon-filled nylon adjustment screws, and stainless steel springs. The document details the port connections and accessory options, emphasizing the modular dovetail design.

Preset Precision Pressure Regulator
This section describes the preset precision pressure regulator, factory-set to a specific output pressure, sharing similar modular design features and material specifications as the adjustable regulators.

Ordering Information
Instructions for ordering include specifying the model number, output range, and accessory options. The document provides a detailed guide for selecting the appropriate configuration based on application needs.

Specifications
The document outlines specifications for a modular pneumatic system, including pressure regulators and manifold systems. The adjustment range for the regulator is 0.5 to 100 PSI for the adjustment model and 0.5 to 40 PSI for the preset model, with a maximum supply of 150 PSI. Operating temperatures range from 40° to 150°F (4° to 66°C), and recommended filtration is 5 Micron. The system features automatic relief and minimal supply consumption.

Materials
The components are constructed from materials such as glass-filled Celcon for the housing, carbon-filled Nylon for the adjustment screw, and stainless steel for the springs and filter. O-rings are made from Buna N and Silicone Nitrile.

Port Connections
Input and output ports are located on the base of the regulator, with threaded dovetail slides available in 10-32 UNF, 1/8-27 NPT, and 1/4-18 NPT thread sizes. The dovetail slides are designed for modular assembly, allowing for various configurations of pneumatic components.

Modular Dovetail Design
The unique modular dovetail design allows for the assembly of individual units or combinations of pneumatic components. The system includes features like blank dovetail slides, union dovetails for common air supply, and connecting dovetails for separate units.

Ordering Information
Orders are specified by model number, output range, and accessory ports. The regulator is supplied with an input port, an output port, and two blank ports as standard. Additional accessory ports can be ordered.

Dimensions
Detailed dimensions are provided for the manifold and regulator components, including port sizes and mounting specifications.

Features
The modular manifold system is designed for instrumentation and industrial applications, offering a low-cost, miniature solution. It supports various pneumatic accessories, including pressure and vacuum switches and gauges.

Mounting
Mounting options include base mounting with 4-40 screws and wall mounting with a dovetail bracket. The manifold mounting base plate is designed for testing and evaluation purposes.

Catalog excerpts

Air Logic's Regulator & Manifold System Catalog-3

20-turn adjustment forprecise regulation > Dovetail Threaded Port for 10-32 UNF, 1/8 or 1/4Ԕ NPTthreads with o-ring seal Blank Dovetail or Optional Gauge Port Precision Regulator Valve Stem and Seat > Non-rising Adjustment Knob Removable Adjustment Knob 1/8 NPTTop Cover > 7/8Ԕ Dial Pressure Gauge 1/4 NPTDovetail Slide > Union DovetailSlide ConnectingDovetail Slide Dovetail Gauge Port Blank DovetailSlide 10-32 UNF Dovetail Slide 1/8Ԕ NPTDovetail Slide Bottom Locking Hex Covers > 2 size="-1">

Open the catalog to page 3

Air Logic's Regulator & Manifold System Catalog-4

Adjustment Range: 0.5 to 100 PSIMaximum Supply: 150 PSI Operating Temperature: 40to 150аF (4to 66аC) Recommended Filtration: 5 Micron Effect of Supply Variation: Within .1 PSI output change with 10 PSI supply changeFlow Regulator: Maximum flow 5 SCFM with 100 PSI supply Repeatability: Within .1 PSI when the supply pressure is turned off and onDrift: At 75F. 0.1 PSI total drift Automatic Relief Supply Consumption: Within 400 cc/m at 100 PSI supply, witha deadend output PORT CONNECTIONS Modular Dovetail Slide with 10-32 UNF, 1/8-27 NPT 1/4-18 NPTthread sizes. The 1/8Д and 1/4 NPTcontain a brass...

Open the catalog to page 4

Air Logic's Regulator & Manifold System Catalog-6

Adjustment Range: 0.5 to 40 PSI Maximum Supply: 150 PSI Operating Temperature: 40to 150аF (4to 66аC) Recommended Filtration: 5 Micron Effect of Supply Variation: Within .1 PSI output change with 10 PSI supply changeFlow Regulator: Maximum flow 5 SCFM with 100 PSI supply Repeatability: Within .1 PSI when the supply pressure isturned off and onDrift: At 75F. 0.1 PSI total drift Automatic Relief Supply Consumption: Within 400 cc/m at 100 PSI supply, with a deadend output Modular Dovetail Design Excellent Repeatability Miniature Size The Modular Precision Preset Regulator is designed to pro-duce...

Open the catalog to page 6

Air Logic's Regulator & Manifold System Catalog-7

PR-7 - 010 - 0B0B - W/KRegulator ModelOutput RangeAdjustment Style Port Selection > AccessoryPort #4 AccessoryPort #2OutputPort #3 InputPort #1 Viewed fromtop ofRegulator ModelNumberOutputRangeInputPort 1AccessoryPort 2OutputPort 3AccessoryPort 4AdjustmentStyle -10-32 UNF Threads PR-7Specify Output0.5 to 40 PSI 1 -1/8-27 NPTThreads W/K -Regulatorwith a knob 2 -1/4-18 NPTThreads B - Blank Dovetail U - Union Dovetail WO/S WO/S -Regulator witha 1/4 shaft adjustment -Regulator witha screwdriver slot adjustment C - Connecting Dovetail G - 1/8-27 NPTDovetail Gauge Port H - 1/4-18 NPTDovetail Gauge...

Open the catalog to page 7

Air Logic's Regulator & Manifold System Catalog-8

PORT CONNECTIONS Input and Output Ports are located on the base of the Regulator. Threaded Dovetail: AModular Dovetail Slide with 10-32 UNF, 1/8-27 NPT, 1/4-18 NPTthread sizes. The 1/8 and 1/4Ԕ NPTcontain a brass hoop ring insert. A1/8 and 1/4Ԕ gauge port is available. During assembly fittings should be finger tight plus one turn. Union Dovetail: AModular Dovetail Slide with a thru hole joining two units together with a common air supply.Connecting Dovetail: AModular Connecting Dovetail Slide with no hole joining two units together with no common air supply. Adjustment Range: Adjustment Model,...

Open the catalog to page 8

Air Logic's Regulator & Manifold System Catalog-10

Modular Dovetail Design Miniature Size The Modular Manifold is designed for instrumentation andindustrial applications.The > ACCESSORYCONNECTIONS MATERIALS PORT CONNECTIONS Maximum Supply: 150 PSIOperating Temperature: 40to 150аF (4to 66аC) Recommended Filtration: 5 Micron Capacity: 1 Cubic Inch Threaded Dovetail: AModular Dovetail Slide with 10-32 UNF, 1/8-27 NPT, 1/4-18 NPTthread sizes. The 1/8 and 1/4Ԕ gauge port is available.Union Dovetail: AModular Dovetail Slide with a thru hole joining two units together with a common air supply.Connecting Dovetail: AModular Connecting Dovetail Slide with...

Open the catalog to page 10

Air Logic's Regulator & Manifold System Catalog-11

M - 5000 - 0111 - BManifold ModelTop Cover selection Port Selection > Port #4 Port #2 Viewed fromtop ofManifold Port #1 Port #3 Model NumberPort 1Port 2Port 3Port 4Top Cover - 10-32 UNF Threads 1 - 1/8-27 NPTThreads - 10-32 UNF Threads > 2 - 1/4-18 NPTThreads B - Blank Dovetail 1 - 1/8-27 NPTThreads U - Union Dovetail C - Connecting Dovetail G - 1/8-27 NPTDovetail Gauge Port 2 - 1/4-18 NPTThreads H - 1/4-18 NPTDovetail Gauge Port D - 0-30 PSI Gauge with Gauge Port B - Blank Cover > I - 0-60 PSI Gauge with Gauge Port J - 0-100 PSI Gauge with Gauge Port K - 0-160 PSI Gauge with Gauge Port W - Wall...

Open the catalog to page 11

Air Logic's Regulator & Manifold System Catalog-12

Modular Dovetail Accessories are designed for the Adjustable Pressure Regulator, the Preset Pressure Regulator, theManifold Mounted Pressure Regulator, and the Modular Manifold System.The Unique Modular Dovetail design allows the regulator or the manifold to be used individually or assembled into a modular combination of Pneumatic Components.The Modular Dovetail Slides are sealed with a Buna N o-ring to prevent leaking. The dovetail slides are locked in place by thebottom hex cover. The > The Blank Dovetail Slides are used when porting is notdesired. Four blank dovetail slides are standard on...

Open the catalog to page 12
