Mini Dia-Vac® Diaphragm Sampling Pumps
2Pages

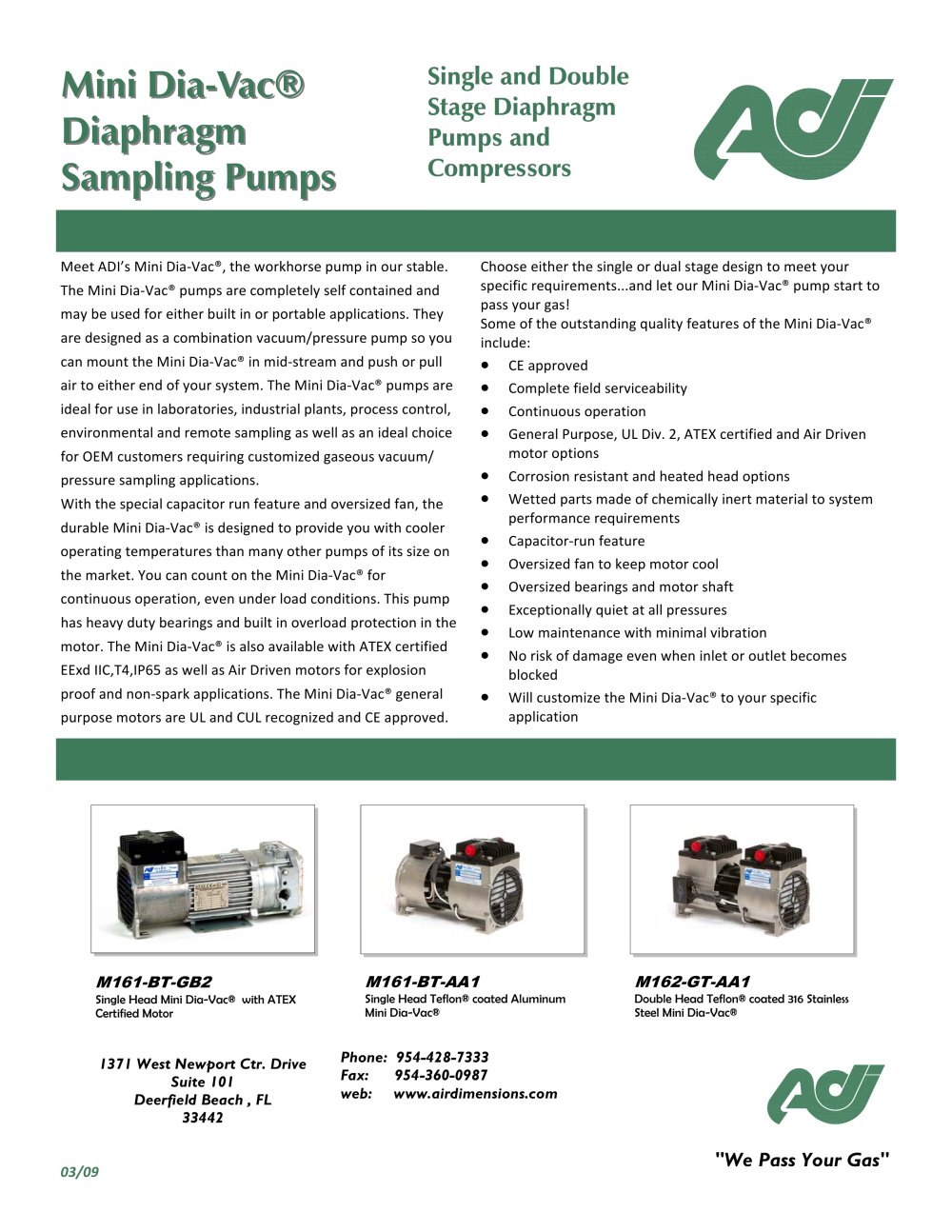

03/09 Phone: 954-428-7333 Fax: 954-360-0987 web: www.airdimensions.com 1371 West Newport Ctr. Drive Suite 101 Deerfield Beach , FL 33442 Mini Dia-Vac® Diaphragm Sampling Pumps Single and Double Stage Diaphragm Pumps and Compressors Meet ADI’s Mini Dia]Vac®, the workhorse pump in our stable. The Mini Dia]Vac® pumps are completely self contained and may be used for either built in or portable applications. They are designed as a combination vacuum/pressure pump so you can mount the Mini Dia]Vac® in mid]stream and push or pull air to either end of your system. The Mini Dia]Vac® pumps are ideal for use in laboratories, industrial plants, process control, environmental and remote sampling as well as an ideal choice for OEM customers requiring customized gaseous vacuum/ pressure sampling applications. With the special capacitor run feature and oversized fan, the durable Mini Dia]Vac® is designed to provide you with cooler operating temperatures than many other pumps of its size on the market. You can count on the Mini Dia]Vac® for continuous operation, even under load conditions. This pump has heavy duty bearings and built in overload protection in the motor. The Mini Dia]Vac® is also available with ATEX certified EExd IIC,T4,IP65 as well as Air Driven motors for explosion proof and non]spark applications. The Mini Dia]Vac® general purpose motors are UL and CUL recognized and CE approved. Choose either the single or dual stage design to meet your specific requirements...and let our Mini Dia]Vac® pump start to pass your gas! Some of the outstanding quality features of the Mini Dia]Vac® include: „hƒn CE approved „hƒn Complete field serviceability „hƒn Continuous operation „hƒn General Purpose, UL Div. 2, ATEX certified and Air Driven motor options „hƒn Corrosion resistant and heated head options „hƒn Wetted parts made of chemically inert material to system performance requirements „hƒn Capacitor]run feature „hƒn Oversized fan to keep motor cool „hƒn Oversized bearings and motor shaft „hƒn Exceptionally quiet at all pressures „hƒn Low maintenance with minimal vibration „hƒn No risk of damage even when inlet or outlet becomes blocked „hƒn Will customize the Mini Dia]Vac® to your specific application M161-BT-GB2 Single Head Mini Dia-Vac® with ATEX Certified Motor M162-GT-AA1 Double Head Teflon® coated 316 Stainless Steel Mini Dia-Vac® M161-BT-AA1 Single Head Teflon® coated Aluminum Mini Dia-Vac® "We Pass Your Gas"

03/09 Specifications: Connecting Rod Material Aluminum Weight 8lbs. Single, Aluminum 9lbs. Double Aluminum Motor 1/12 HP, 10 UF capacitor Port Connections 1/4]18 NPT Ambient Temperature 40° C Electrical 115V, 50/60HZ ] 1.3/1.0 amps 230V, 50/60HZ ] 0.6 amps Eccentric Size PSIG bar InHg mbar CFM LPM .080 6.0 0.41 7.0 237 .44 12.5 .100 17.0 1.17 17.0 575 .47 13.5 .120 21.0 1.43 18.0 600 .64 18 .150 27.0 1.86 20.0 676 .72 20.0 .160 (std) 30.0 2.07 22.0 745 .78 22.0 .160 (dbl.) 33.0 2.27 27.0 913 1.28 36.2 Mini Dia-Vac® Performance ADI’s Dia]Vac® Pumps can Pass Your Gas at the Speed of Need! Due...
