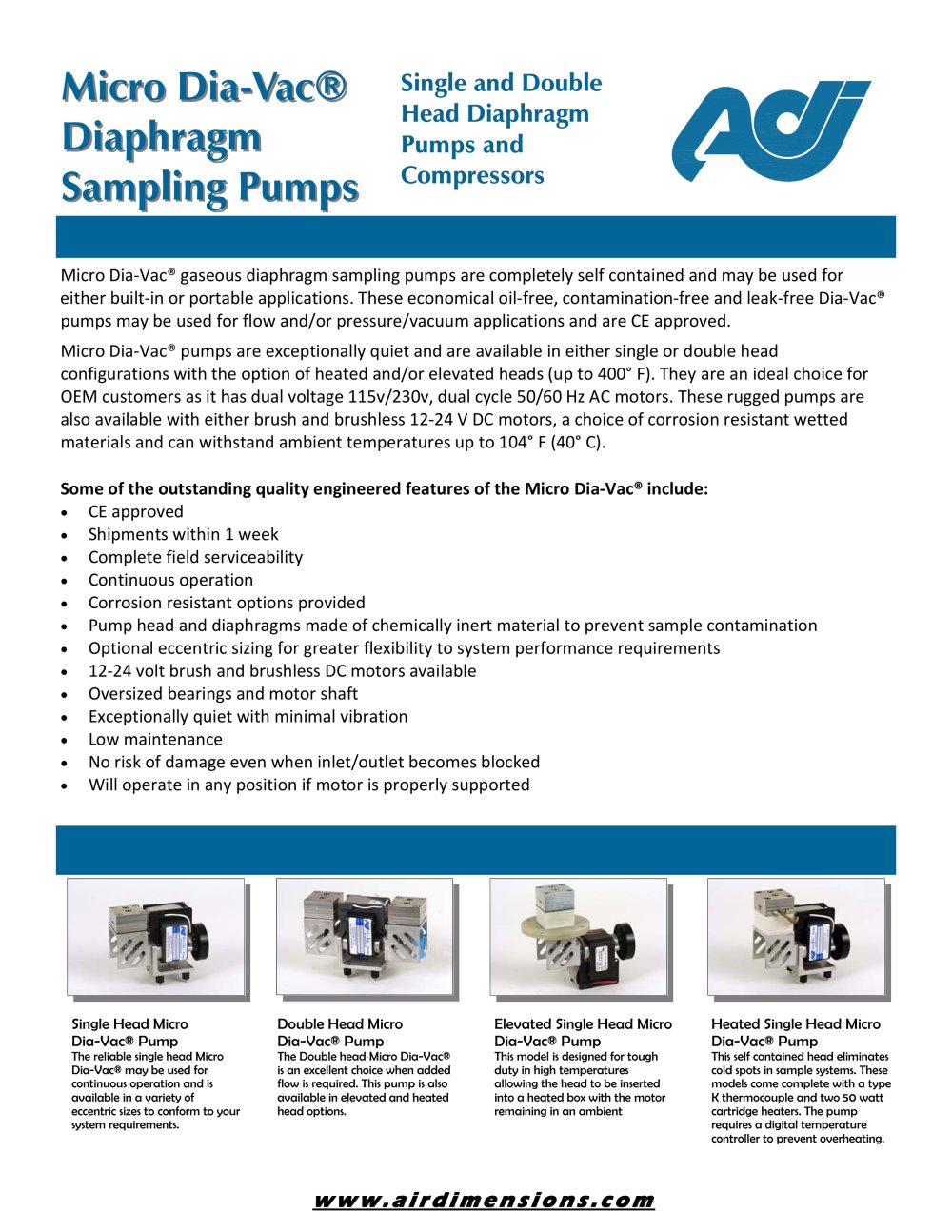

Micro Dia-Vac® Diaphragm Sampling Pumps
2Pages

Single Head Micro Dia-Vac® Pump The reliable single head Micro Dia-Vac® may be used for continuous operation and is available in a variety of eccentric sizes to conform to your system requirements. Double Head Micro Dia-Vac® Pump The Double head Micro Dia-Vac® is an excellent choice when added flow is required. This pump is also available in elevated and heated head options. Elevated Single Head Micro Dia-Vac® Pump This model is designed for tough duty in high temperatures allowing the head to be inserted into a heated box with the motor remaining in an ambient Heated Single Head Micro Dia-Vac® Pump This self contained head eliminates cold spots in sample systems. These models come complete with a type K thermocouple and two 50 watt cartridge heaters. The pump requires a digital temperature controller to prevent overheating. www.airdimensions .com Micro Dia-Vac® Diaphragm Sampling Pumps Micro Dia]Vac® gaseous diaphragm sampling pumps are completely self contained and may be used for either built]in or portable applications. These economical oil]free, contamination]free and leak]free Dia]Vac® pumps may be used for flow and/or pressure/vacuum applications and are CE approved. Micro Dia]Vac® pumps are exceptionally quiet and are available in either single or double head configurations with the option of heated and/or elevated heads (up to 400° F). They are an ideal choice for OEM customers as it has dual voltage 115v/230v, dual cycle 50/60 Hz AC motors. These rugged pumps are also available with either brush and brushless 12]24 V DC motors, a choice of corrosion resistant wetted materials and can withstand ambient temperatures up to 104° F (40° C). Some of the outstanding quality engineered features of the Micro Dia]Vac® include: „hƒn CE approved „hƒn Shipments within 1 week „hƒn Complete field serviceability „hƒn Continuous operation „hƒn Corrosion resistant options provided „hƒn Pump head and diaphragms made of chemically inert material to prevent sample contamination „hƒn Optional eccentric sizing for greater flexibility to system performance requirements „hƒn 12]24 volt brush and brushless DC motors available „hƒn Oversized bearings and motor shaft „hƒn Exceptionally quiet with minimal vibration „hƒn Low maintenance „hƒn No risk of damage even when inlet/outlet becomes blocked „hƒn Will operate in any position if motor is properly supported Single and Double Head Diaphragm Pumps and Compressors

"We Pass Your Gas" ADI’s Dia]Vac® Pumps can Pass Your Gas at the Speed of Need! Due to an increased interest in reducing the pressure, vacuum, and/or flow on the Dia]Vac® pumps our engineers designed modified eccentric options which allow you to customize your Dia]Vac® pump to meet your specific application requirements while at the same time increasing the life of the diaphragm and bearings. Note the standard eccentric size is .160 on Micro Dia]Vac®. Please see “How to Specify and Order Pumps at ADI” (below) or call the factory direct at 954]428]7333 or 800]423]6464 for more information....
