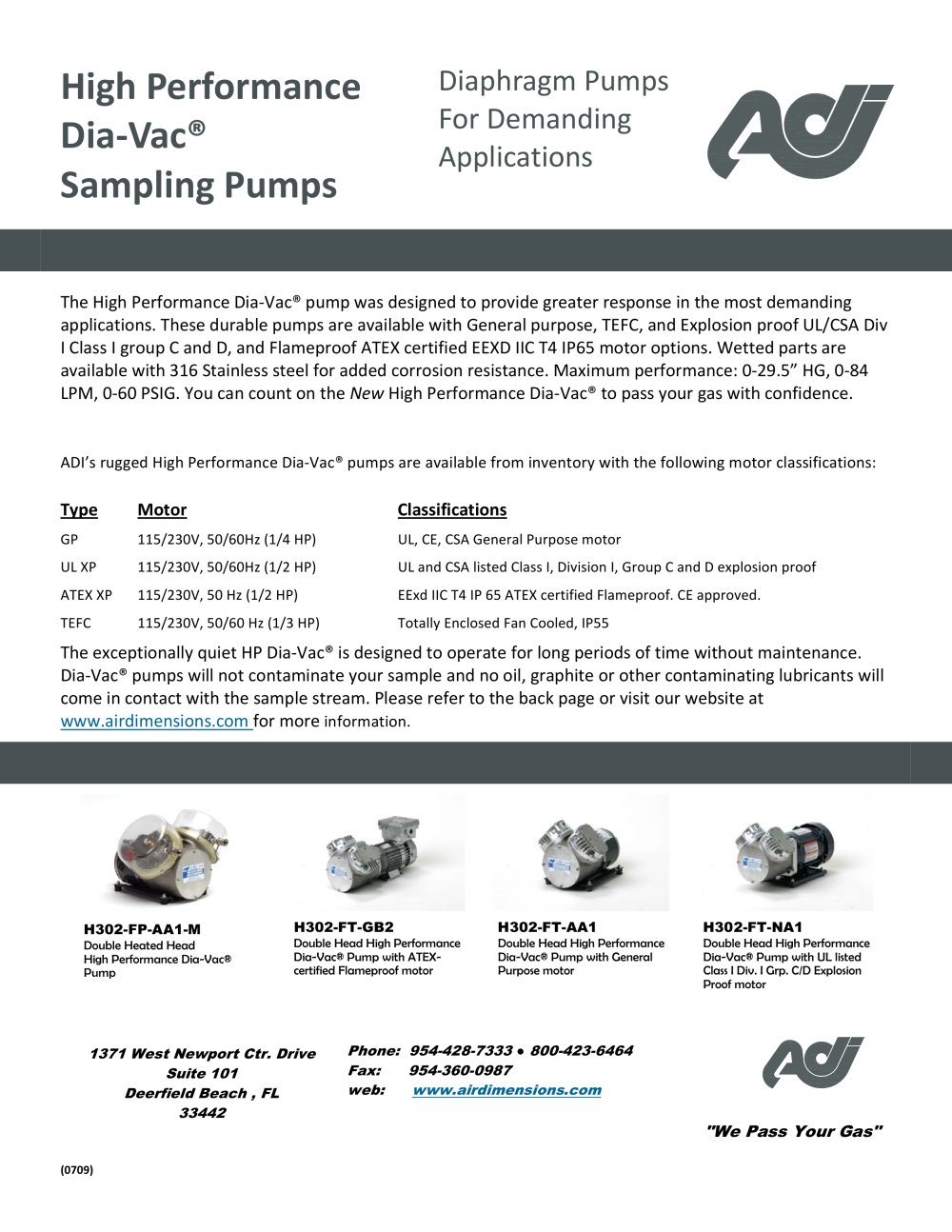

(0709) 1371 West Newport Ctr. Drive Suite 101 Deerfield Beach , FL 33442 "We Pass Your Gas" Diaphragm Pumps For Demanding Applications High Performance Dia]Vac® Sampling Pumps H302-FP-AA1-M Double Heated Head High Performance Dia-Vac® Pump H302-FT-GB2 Double Head High Performance Dia-Vac® Pump with ATEXcertified Flameproof motor H302-FT-AA1 Double Head High Performance Dia-Vac® Pump with General Purpose motor H302-FT-NA1 Double Head High Performance Dia-Vac® Pump with UL listed Class I Div. I Grp. C/D Explosion Proof motor Phone: 954-428-7333 œ 800-423-6464 Fax: 954-360-0987 web: www.airdimensions.com Motor Classifications 115/230V, 50/60Hz (1/4 HP) UL, CE, CSA General Purpose motor 115/230V, 50/60Hz (1/2 HP) UL and CSA listed Class I, Division I, Group C and D explosion proof 115/230V, 50 Hz (1/2 HP) EExd IIC T4 IP 65 ATEX certified Flameproof. CE approved. 115/230V, 50/60 Hz (1/3 HP) Totally Enclosed Fan Cooled, IP55 Type GP UL XP ATEX XP TEFC The exceptionally quiet HP Dia]Vac® is designed to operate for long periods of time without maintenance. Dia]Vac® pumps will not contaminate your sample and no oil, graphite or other contaminating lubricants will come in contact with the sample stream. Please refer to the back page or visit our website at www.airdimensions.com for more information. ADI’s rugged High Performance Dia]Vac® pumps are available from inventory with the following motor classifications: The High Performance Dia]Vac® pump was designed to provide greater response in the most demanding applications. These durable pumps are available with General purpose, TEFC, and Explosion proof UL/CSA Div I Class I group C and D, and Flameproof ATEX certified EEXD IIC T4 IP65 motor options. Wetted parts are available with 316 Stainless steel for added corrosion resistance. Maximum performance: 0]29.5” HG, 0]84 LPM, 0]60 PSIG. You can count on the New High Performance Dia]Vac® to pass your gas with confidence.

(0709) 954-428-7333 •800-423-6464 www.airdimensions.com Specifications: Diaphragm Material See Key Below Electrical See Key Below Body Material Cast Aluminum Gas temp Range 30° to 400° F Connecting Rod Material Cast Aluminum Port Connections 1/4 NPT Motor 1 or 2 Stage 1/4 HP, 5/8 in. shaft (GP mtr) Ambient Temperature 140°F Model # Eccentric PSIG Bar InHg Mbar CFM LPM H301 .300 60* 4.14* 26.0 904 1.41 40 H302 (series/parallel) .300 60* / 60 4.14* / 4.14 27.0 / 29.5 914 / 982 2.93 / 1.50 84 / 43 High Performance Dia-Vac®: ADI’s High Performance Dia]Vac® Pump was designed to offer exceptional...
