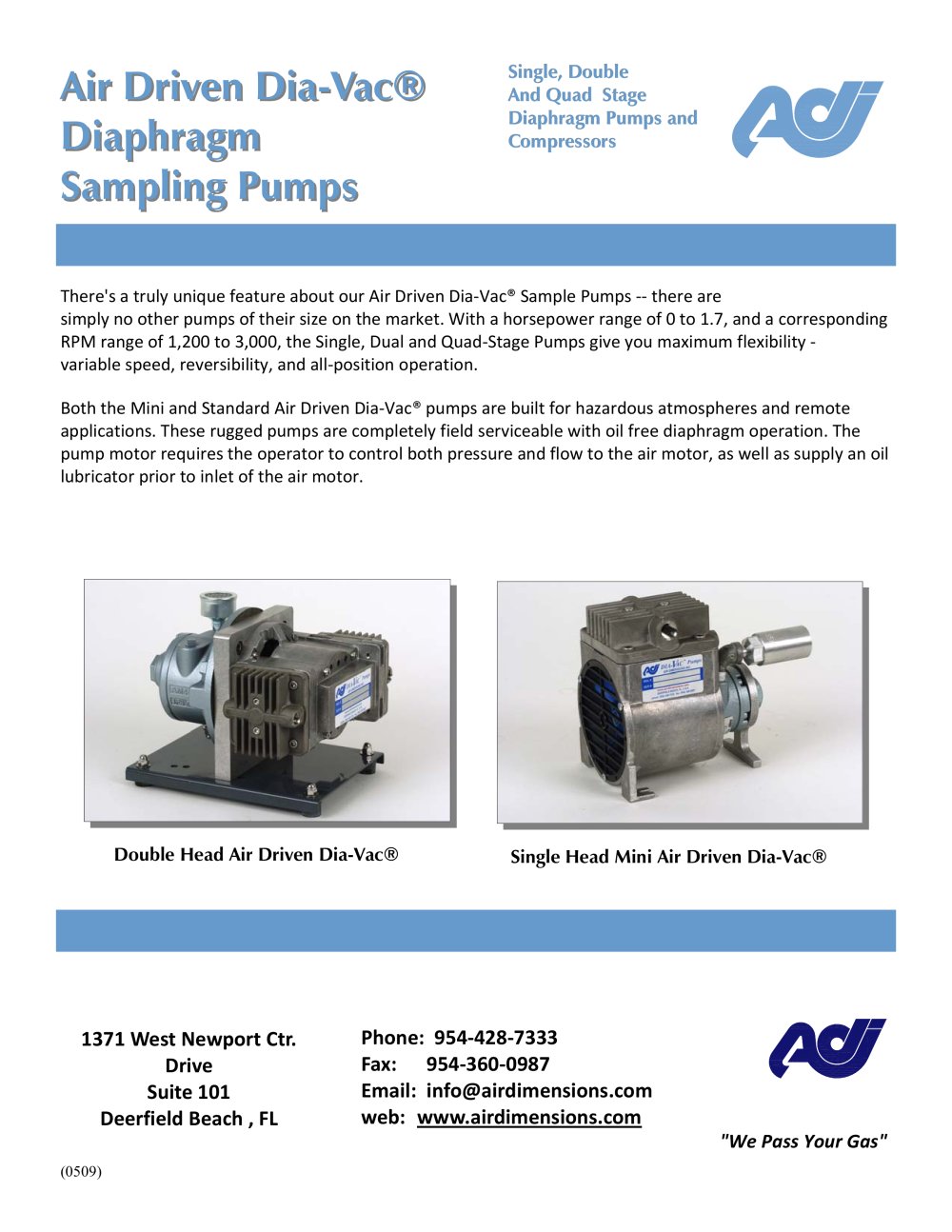

Air Driven Dia-Vac® Diaphragm Sampling Pumps
2Pages

(0509) "We Pass Your Gas" Phone: 954]428]7333 Fax: 954]360]0987 Email: info@airdimensions.com web: www.airdimensions.com 1371 West Newport Ctr. Drive Suite 101 Deerfield Beach , FL Air Driven Dia-Vac® Diaphragm Sampling Pumps Single, Double And Quad Stage Diaphragm Pumps and Compressors There's a truly unique feature about our Air Driven Dia]Vac® Sample Pumps ]] there are simply no other pumps of their size on the market. With a horsepower range of 0 to 1.7, and a corresponding RPM range of 1,200 to 3,000, the Single, Dual and Quad]Stage Pumps give you maximum flexibility ] variable speed, reversibility, and all]position operation. Both the Mini and Standard Air Driven Dia]Vac® pumps are built for hazardous atmospheres and remote applications. These rugged pumps are completely field serviceable with oil free diaphragm operation. The pump motor requires the operator to control both pressure and flow to the air motor, as well as supply an oil lubricator prior to inlet of the air motor. Double Head Air Driven Dia-Vac® Single Head Mini Air Driven Dia-Vac®

SHUTOFF VALVE FILTER REGULATOR LUBRICATOR PRESSURE GAUGE MAIN AIR LINE AIR DRIVEN MOTOR BRANCH AIRLINE MUFFLER
