FOOD GRADE PUSH-IN FITTINGS

FOOD GRADE PUSH-IN FITTINGS

Product catalog summary

Overview: The document outlines the technical specifications and details for the Aignep Series 70000, which are food-grade push-in fittings certified to NSF/ANSI-51 standards. These fittings are primarily used in the food and beverage industry and other applications.

Specifications:

Certified to NSF 51, 1935/2004/CE, and Italian DM 174 standards.
Constructed from nickel-plated brass with a food-grade coating.
Compatible with FEP tubes, suitable for aggressive environments.
Operating pressure range: 0.99 bar to 20 bar.
Temperature range: -15°C to +200°C.
Compatible with compressed air, vacuum, steam, and food substances.

Main Advantages:

Quick connection and disconnection capabilities.
Full flow and vacuum resistance due to specially shaped seals.
Available in BSPP and metric threads.
Silicon-free construction.
Wide range of fittings for various installation needs.

Applications:

Food and beverage industry.
Coffee machines and vending equipment.
Medical applications.
Vacuum systems.

Materials and Components:

Nickel-plated brass body and components.
Stainless steel clamping washer (AISI 301).
PTFE safety ring and FKM food-grade seals.

Technical Characteristics:

Threads conform to ISO 228 Class A standards.
Recommended torque values provided for various sizes.
Compatible with plastic tubes such as PA6, PA11, PA12, polyethylene, polyurethane, PTFE, and FEP.

Additional Features:

Stainless steel washer ensures perfect tube clamping without surface damage.
Geometric seal design allows use with vacuum applications.
Threaded fittings equipped with sealing elements for immediate use, reducing installation time.
Straight fittings can be assembled with an Allen wrench for use in tight spaces.
Adjustable fittings with internal safety ring for improved durability.

Component Specifications:

Straight Male Adaptor (Parallel): Designed for secure connections with cylindrical threads, available in various sizes.
Straight Connector: Facilitates tube-to-tube connections with detailed specifications on tube size and length.
Orienting Elbow Male Adaptor (Parallel): Allows for orientation adjustments with specified dimensions.
Orienting Tee Male Adaptor (Parallel): Provides a T-shaped connection with orientation flexibility.
Tee Connector: Facilitates tube-to-tube connections in a T-shape.
Security Clips: Ensure secure connections, available in sets of 50.

Certifications: All components are certified to NSF/ANSI-51 standards, ensuring compliance with safety and quality requirements for materials used in food equipment.

Additional Information: A broader range of components is available upon request, indicating flexibility in supply.

Catalog excerpts

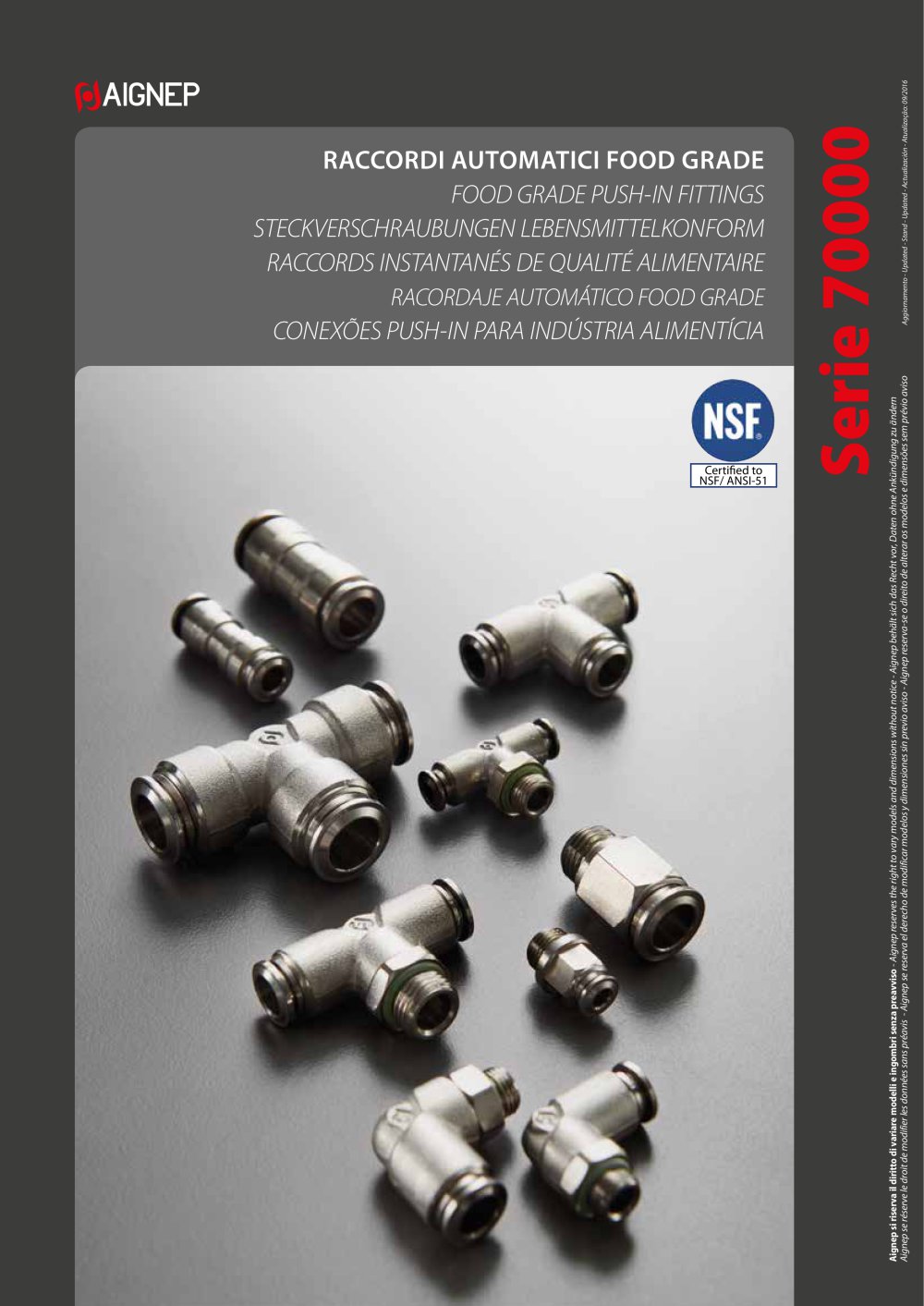

RACORDAJE AUTOMÁTICO FOOD GRADE CONEXÕES PUSH-IN PARA INDÚSTRIA ALIMENTÍCIA Aignep si riserva il diritto di variare modelli e ingombri senza preavviso - Aignep reserves the right to vary models and dimensions without notice - Aignep behält sich das Recht vor, Daten ohne Ankündigung zu ändern Aignep se réserve le droit de modifier les données sans préavis - Aignep se reserva el derecho de modificar modelos y dimensiones sin previo aviso - Aignep reserva-se o direito de alterar os modelos e dimensões sem prévio aviso Aggiornamento - Updated - Stand - Updated - Actualización - Atualização: 09/2016 RACCORDI AUTOMATICI FOOD GRADE FOOD GRADE PUSH-IN FITTINGS STECKVERSCHRAUBUNGEN LEBENSMITTELKONFORM RACCORDS INSTANTANÉS DE QUALIT

Open the catalog to page 1

Per rispondere alle esigenze del settore Alimentare, la serie 70.000, certificata NSF 51, offre al cliente la possibilità di utilizzare un prodotto conforme alla Normativa 1935/2004/CE nonché al DM 174. The 70.000 serie is NSF 51 certified to comply the food norm 1935/2004/CE & Italian DM 174. In ottone trattato con Nichelatura Food Grade abbinata ai nostri tubi in FEP è la soluzione più versatile per i mercati Food & Beverage. The line is in brass with Food Grade coating. In combination with our FEP tubes is the most demanded solution for the Food & Beverage market. Thanks to the special coating...

Open the catalog to page 3

Serie 70000 Norma di Riferimento CARATTERISTICHE TECNICHE TECHNICAL CHARACTERISTICS TECHNISCHE ANGABEN CARACTÉRISTIQUES TECHNIQUES CARACTERÍSTICAS TÉCNICAS CARACTERÍSTICAS TÉCNICAS Reference standard SILICON FREE Entspricht der Norm Norme de référence Normativa de referencia Corpo in ottone nichelato Food Grade Spintore sgancio tubo in Ottone nichelato Food Grade Capsula in ottone nichelato Food Grade Pinza d’aggraffaggio in acciaio inox AISI 301 Anello di sicurezza in PTFE Guarnizione sagomata in FKM alimentare Guarnizione filetto in FKM alimentare Basetta Filettata in Ottone Nichelato Food...

Open the catalog to page 4

Connection Tubes Geeignete Rohre Tubi in materiale plastico: PA6, PA11, PA12, Polietilene, *Poliuretano, PTFE, FEP. Plastic tubes: PA6, PA11, PA12, Polyethylene, *Polyurethane, PTFE, FEP. Kunststoffrohre: PA6, PA11, PA 12, Polyethylene, *Polyurethan, PTFE, FEP. *Per tubi in Poliuretano é consigliata una durezza di 98 shore. *For Polyurethane hoses it is required a minimum hardness of 98 shore. *Für Polyurethan Rohre ist eine Härte von 98 Shore empfohlen. Tubes Conseillés Tubes plastiques: PA6, PA11, PA12, Polyéthylène, *Polyuréthane, PTFE, FEP. Tubos en material plástico: PA6, PA11, PA 12, Polietileno,...

Open the catalog to page 5

1 pinza in acciaio inox garantisce il perfetto La aggraffaggio di tubi di qualsiasi materiale senza danneggiarne la superficie. Il collegamento tra tubo e raccordo assicura una tenuta totale anche in condizioni di urti e vibrazioni. 2 particolare geometria della guarnizione permette La inoltre l’utilizzo dei raccordi anche con il vuoto. 3 Tutte le filettature di questa serie sono state dotate di elementi di tenuta che permettono l’immediato utilizzo dei raccordi riducendo notevolmente i tempi di installazione. 1 washer is made in stainless steel ensures the perfect The tube clamping with every...

Open the catalog to page 6

RACCORDO DIRITTO MASCHIO CILINDRICO STRAIGHT MALE ADAPTOR (PARALLEL) GERADE EINSCHRAUBVERSCHRAUBUNG ZYLINDRISCH RACCORD DROIT MÂLE, CYLINDRIQUE RACOR RECTO MACHO CILÍNDRICO CONEXÃO RETA MACHO COM ROSCA PARALELA RACCORDO DIRITTO INTERMEDIO STRAIGHT CONNECTOR VERBINDUNGSVERSCHRAUBUNG RACCORD UNION DOUBLE RACOR RECTO INTERMEDIO CONEXÃO RETA TUBO-TUBO 70116 RACCORDO A L ORIENTABILE MASCHIO CILINDRICO ORIENTING ELBOW MALE ADAPTOR (PARALLEL) WINKELVERSCHRAUBUNG ZYLINDRISCH (DREHBAR) EQUERRE ORIENTABLE MÂLE, CYLINDRIQUE RACOR A L ORIENTABLE MACHO CILÍNDRICO CONEXÃO EM “L” ORIENTÁVEL COM ROSCA MACHO...

Open the catalog to page 7

RACCORDO A T ORIENTABILE MASCHIO CILINDRICO ORIENTING TEE MALE ADAPTOR (PARALLEL) CENTRE LEG TEINSCHRAUBVERSCHRAUBUNG ZYLINDRISCH (DREHBAR) TEORIENTABLEA PIQUAGE MALE CENTRAL, CYLINDRIQUE RACOR AT ORIENTABLE MACHO CILINDRICO CONEXAO EM 'T'ORIENTAVEL COM ROSCA MACHO PARALELA Code Tube LI L2 CH D Pack. CLIPDI SICUREZZA SECURELY CLIPS CLIP DESEGURIDAD ROJO

Open the catalog to page 8

Serie 70000 ARTICOLI DISPONIBILI A RICHIESTA ARTICLES AVAILABLE ON REQUEST ARTIKEL ERHÄLTLICH AUF ANFRAGE ARTICLES DISPONIBLES SUR DEMANDE ARTICULOS DISPONIBLES BAJO DEMANDA ITENS DISPONÍVEIS SOB ENCOMENDA
