Tachometers
28Pages

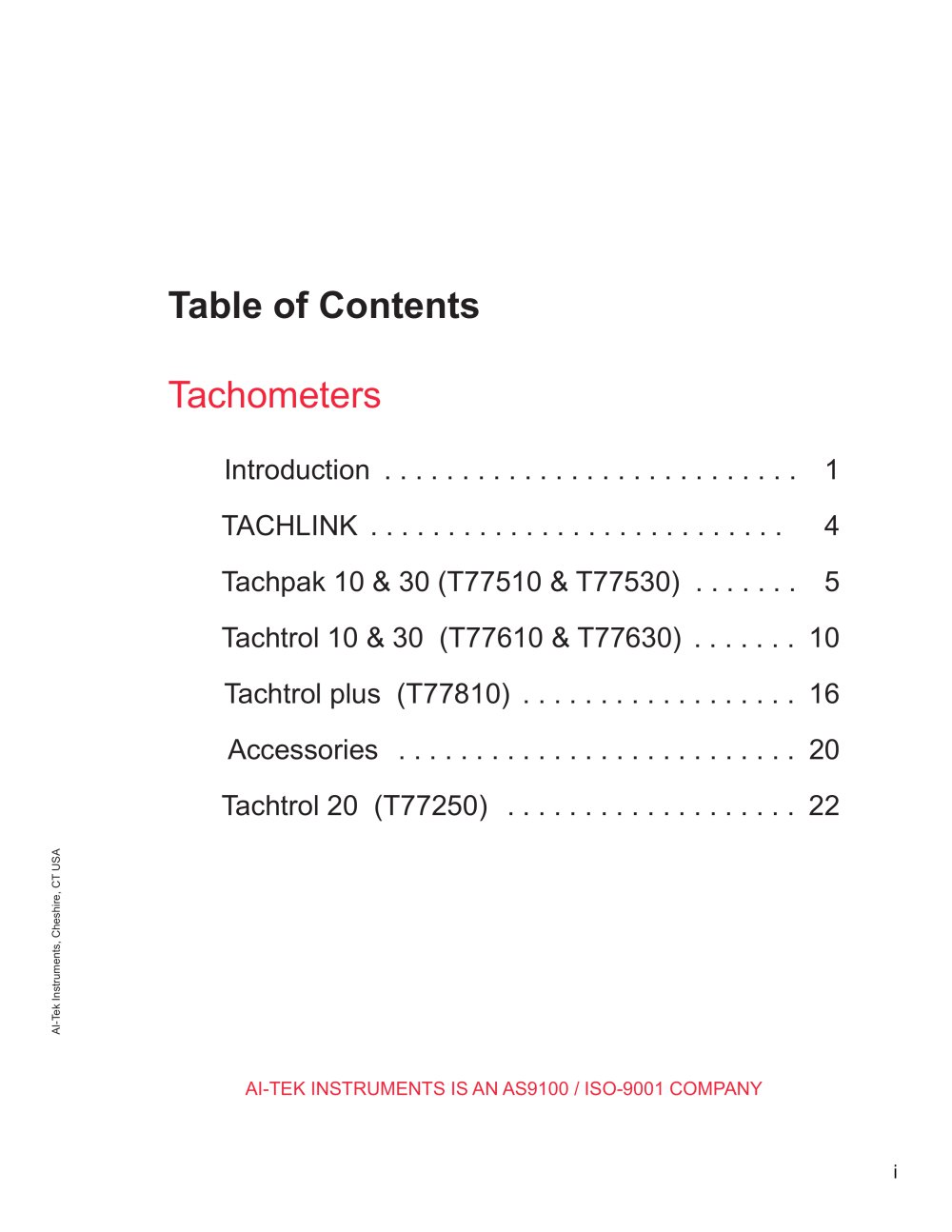

Table of Contents Tachometers . . .Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . AI-Tek Instruments, Cheshire, CT USA AI-TEK INSTRUMENTS IS AN AS9100 / ISO-9001 COMPANY

About AI-Tek® Tachometers Not all tachometers are the same, and this is certainly true of the AI-Tek Instruments tachometry line. Designed with severe industrial environments in mind, these units will provide reliable aroundthe-clock operation for years under adverse conditions. AI-Tek Instruments is a leader in manufacturing this type of instrument. Our prices reflect the design, quality, ruggedness and engineering of the equipment. What you really get with AI-Tek Instruments is a superb price performance ratio. It may not initially be the least expensive equipment available; but, in the...

Specifications (Continued): Electrical All measurements taken at 25°C unless otherwise specified. Frequency Essentially DC, Minimum Pulse Width: 250 µsec. Input Power Input Impedance 10mA current regulated Power consumption 3.5 watts, typical for tachometer only Add 0.5 watts per remote display Add 2.0 watts for 12V out 9.5 watts max. Input Sensitivity 3.5 volts min. pulse to ground Common Mode Rejection Ratio >40 db @ DC typical DC Voltage 12-30 volts. Reverse polarity protected. Available on terminal blocks and din rail in parallel (TACHPAK only). Electrical Isolation Signal to signal 500...

Relays (Solid State) Physical Form A Contact Rating 400mA @ 60V (AC or DC) On resistance: 2Ω max Response Time (operate and release) Operate: 2 ms max, 0.8 ms typical Release: 0.5 ms max, 0.1 ms typical Electrical Isolation 500 Vrms, 1 minute Switchpoint Accuracy Internal instrument accuracy to alarm setpoint: ±.005% Analog Output Ranges 0 to 20mA, 4 to 20mA, -20 to 0 to +20mA; user selectable Accuracy Internal instrument accuracy: ±.005%; plus ±.05% of full scale range at room temp with 400 ohm load; ±0.1% over temp range and load range. Unit is factory calibrated. Can be re-calibrated...

TACHLINK • TACHLINK is a Windows-based program developed to simplify programming, communication and monitoring with the new generation of AI-TEK tachometers via USB2.0 or RS485. • Programming is much faster and simpler with TACHLINK. • Tachometer configuration databases can be stored, backed up and retrieved easily. A stored database can be used to program multiple tachometers and can be e-mailed to remote locations. • The TACHLINK graphical user interface allows any PC to be used as a remote display. • Analong output calibration is available only through TACHLINK and allows the customer to...

TACHPAK® 10 & 30 Digital Process Tachometer Part Number Series T77510 & T77530 RoHS T77510 AI-Tek Instruments, Cheshire, CT USA Wide range of AC or DC power (12-30 Vdc, 80-264Vac 50-60Hz) Greatly improved instrument accuracy, processing speed and response time. Frequency, period or counter modes. User-defined inputs for logic level, averaging, alarm set points and hysteresis, Signal normalization and math functions allow mathematical manipulation of input signals. Results can be displayed along with user-defined units. Accepts sinusoidal and square wave inputs as found in variable...

Programming Features (continued): case of tachometer instruments embedded in explosion proof or NEMA 4X enclosures, remote ac- cess solves the problem of programming by making use of an IR link to allow full front panel control • TACHLINK®: PC / Windows-based custom software allows the user to program all configurable attributes of TACHPAK by PC via a USB2.0 or RS485 connection. In addition, the PC can be used to display data, perform security functions, diagnostics, analog output calibration and real-time data logging; all available through the TACHLINK. Fast response overspeed...

Connection to 12-30 Volt In is also available on the bottom of TACHPAK 10 & 30. A special DIN rail power bus adapter is available as an accessory and works with the accessory power supply.

TACHPAK Enclosure Options

TACHPAK Enclosure Options EXPLOSION PROOF UL/CSAfor hazardous locations Class I, Zone 1, Groups MB + H2, IIA Certifications Inside Enclosure (Consult Factory for Latest Update)

TACHTROL® 10 & 30 Dual Input Digital Tachometer Part Number Series T77610 &T77630 RoHS • Wide range of AC or DC power (12-30 Vdc, 80-264Vac 50-60Hz) • Greatly improved instrument accuracy, processing speed and response time. • Frequency, period or counter modes. • User-defined inputs for logic level, averaging, alarm set points and hysteresis, • Signal normalization and math functions allow mathematical manipulation of input signals. Results can be displayed along with user-defined units. • Accepts sinusoidal and square wave inputs as found in variable reluctance and digital output speed...

Programming Features Programming has been greatly simplified and can be accomplished by 2 different methods. Many configurable attributes have been added to improve flexibility and function. • Display front panel: TACHTROL 10 and 30 can be programmed through the integrated display/membrane panel. Programming is accomplished by navigating through a series of nested menus. In the case of tachometer instruments embedded in explosion proof or NEMA 4X enclosures, remote access solves the problem of programming by making use of an IR link to allow full front panel control via a hand-held remote....

a operating manual for con fig u ration option*. SUGGESTED PANEL CUTOUT PANEL MOUNT, STANDARD ENCLOSURE REAR VIEW TACHTROL 10 REAR VIEW TACHTROL 30

TACHTROL Enclosure Options

TACHTROL Enclosure Options T77610-70 / T77630-70 AI-Tek Instruments, Cheshire, CT USA EXPLOSION PROOF UL/CSA for Hazardous Locations Class I, Groups B, C & D Class II, Groups E, F & G Class III Also Class I, Zone 1, Groups IIB + H2, IIA ATEX 0102 EX II 2 G For use in Zone 1 Groups IIA, IIB & IIB+H2 T6 or T5, IP66 hazardous locations Certifications Inside Enclosure (Consult Factory for Latest Update) 15
