758 ZenTron® High Strength Roving

758 ZenTron® High Strength Roving
2Pages

Catalog excerpts

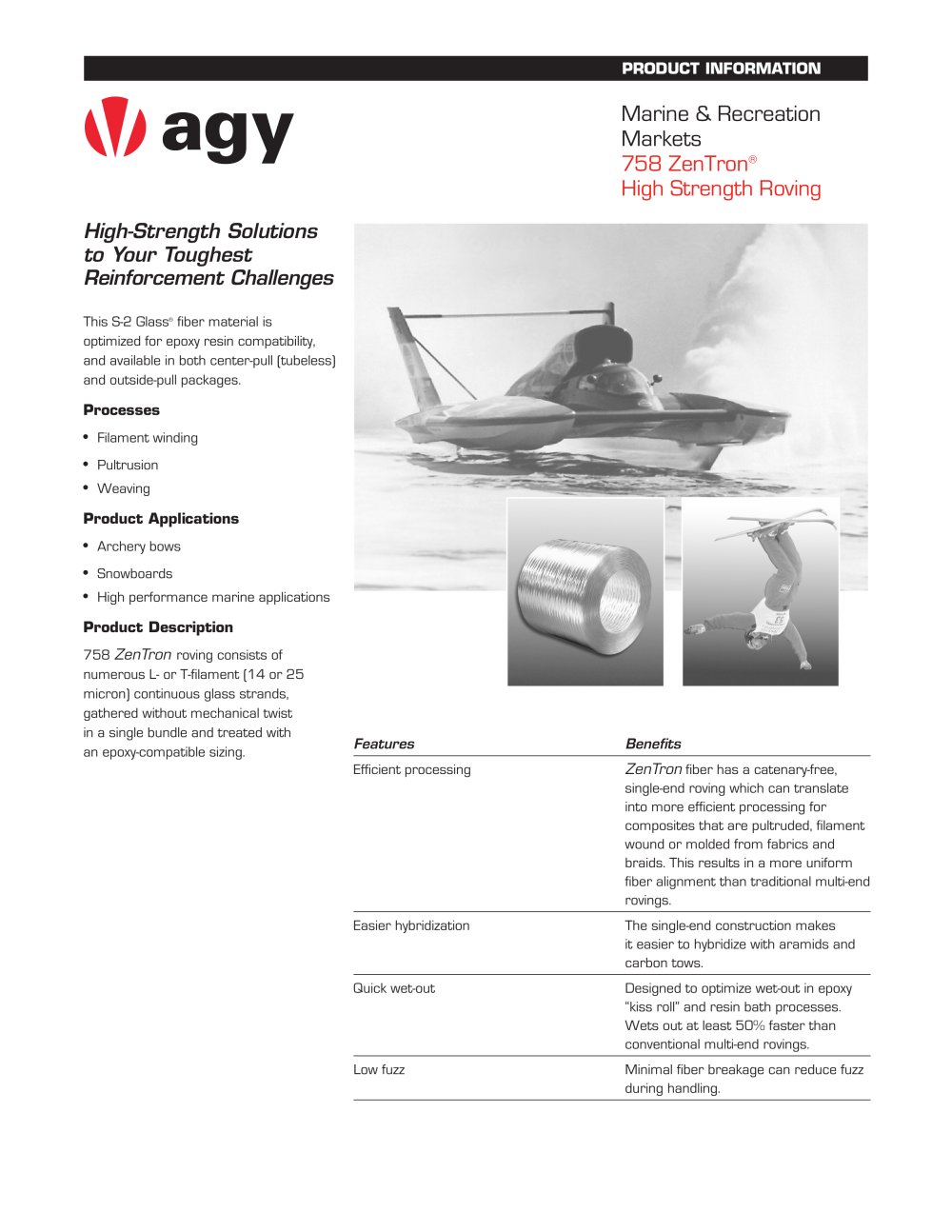

Printed wiring board. MET Packages MET Production PRODUCT INFORMATION Marine & Recreation Markets 758 ZenTron® High Strength Roving High-Strength Solutions to Your Toughest Reinforcement Challenges This S-2 Glass® fiber material is optimized for epoxy resin compatibility, and available in both center-pull (tubeless) and outside-pull packages. Processes • Filament winding • Pultrusion • Weaving Product Applications • Archery bows • Snowboards • High performance marine applications Product Description 758 ZenTron roving consists of numerous L- or T-filament (14 or 25 micron) continuous glass strands, gathered without mechanical twist in a single bundle and treated with an epoxy-compatible sizing. Features Benefits Efficient processing ZenTron fiber has a catenary-free, single-end roving which can translate into more efficient processing for composites that are pultruded, filament wound or molded from fabrics and braids. This results in a more uniform fiber alignment than traditional multi-end rovings. Easier hybridization The single-end construction makes it easier to hybridize with aramids and carbon tows. Quick wet-out Designed to optimize wet-out in epoxy “kiss roll” and resin bath processes. Wets out at least 50% faster than conventional multi-end rovings. Low fuzz Minimal fiber breakage can reduce fuzz during handling.

Open the catalog to page 1

758 ZenTron® High Strength Roving 110 110 94 4044 Tubeless 4044 in T1100 Carton 4144 Tube Packaging Carton Bobbin Carton Dimensions Packages Cartons Pallets/Typical Pallet Dimensions in cm (in inches) per Carton per Pallet Truckload in cm (in inches) #1 T1100 4044 110 x 110 x 94 60 1 40 110 x 110 x 94 (43.3 x 43.3 x 37) (43.3 x 43.3 x 37) #2 T525 4144 78.7 x 114.3 x 96.5 36 1 48 78.7 x 114.3 x 96.5 (31 x 45 x 38) (31 x 45 x 38) Additional References Customer acceptance standard RF-68. Product Data Silane treatment for epoxy compatibility Available yields, bareglass Min. Nom. Max. TEX...

Open the catalog to page 2
