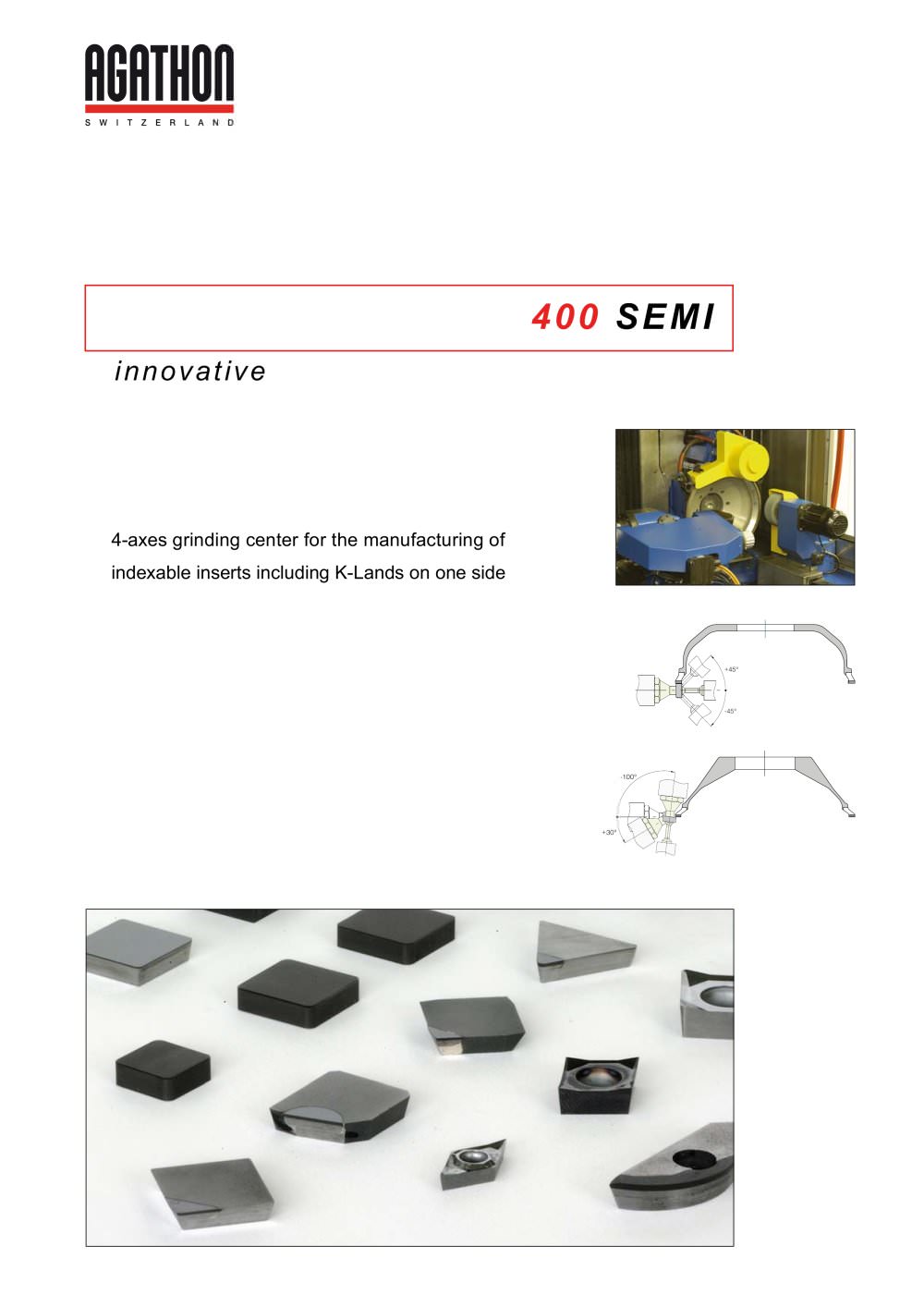

400 SEMI
4Pages

Innovative dressing methods In-Process cleaning Off-Process profiling In-Process sharpening with EcoDress > 400 SEMI (front view) Fully protective hood Clamping system B1 Four sliding doors on the front and one sliding door on the side of the machine provide easy access to the grinding area. A large (service) door is located at the back of the machine that provides unrestricted access to the grinding spindle head and to the entire rear section of the machine. A fully automatic sliding door separates the robot from the grinding area. The machine monitors and controls the door operations. The...

The external programming station (optional) is used to write grinding programs on a stand-alone PC. External programming station > Automatic transfer movements When grinding a workpiece, the machine uses different virtual models. Theses models are three-dimensional replicas of the workpiece geometry and clamping elements that the AGATHON-Software AGC+ generates. The virtual models are used to monitor as well as to avoid collisions between grinding wheel and workpiece and/or clamping elements. This provides the machine with safety and efficency. The intensive time consuming calculations of...

Maschinenfabrik l Postfach 116CH-4503 SOLOTHURN l Tel +41 (0)32 617 4500 Fax +41 (0)32 617 4700 l www.agathon.com Required air pressure 5 - 6 [bar] Compressed air consumption (with 5bar air pressure) approx.25 [m h Air pressure All specifications in accordance with Standard EN 60204-1 > Connection data Grinding spindle Grinding wheel diameter 400 [mm] Max. grinding wheel speed 3000 [min Electrical connection 3x400/220/460/500 V P/E (+/- 10%) 50/60Hz (+/- 1Hz) Power consumption (without coolant cleaning unit) 23 [KVA] Ambient temperature 5 - 40 [Ӱ] Humidity 30% to 95% > -1 ]Motor power 7.5...
