400 PENTA
4Pages

{{requestButtons}}

Catalog excerpts

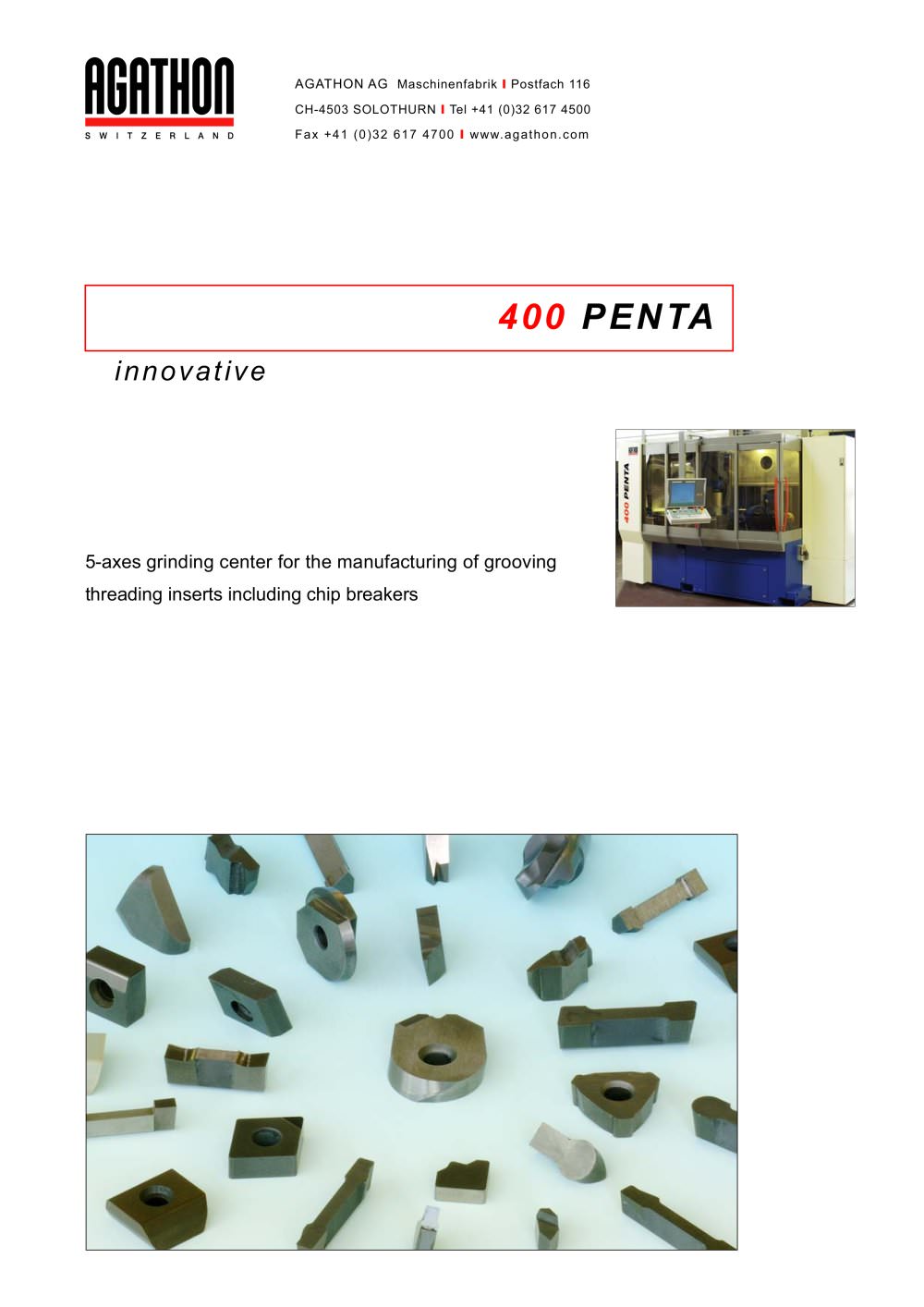

400 PENTA - 1

Maschinenfabrik l Postfach 116CH-4503 SOLOTHURN l Tel +41 (0)32 617 4500 Fax +41 (0)32 617 4700 l www.agathon.com >

Open the catalog to page 1
400 PENTA - 2

400 PENTA (front view) Extended workpiece range Fully protective hood Flexible clamping systemsClamping with clamping system 'B3' Grooving inserts Ballnose milling inserts Four sliding doors on the front and one sliding door on the side of the machine provide easy access to the grinding area. A large (service) door is located at the back of the machine that provides unrestricted access to the grinding spindle head and to the entire rear section of the machine. A fully automatic sliding door separates the robot from the grinding area. The machine monitors and controls the door operations....

Open the catalog to page 2
400 PENTA - 3

The external programming station (optional) is used to write grinding programs on a stand-alone PC. External programming station > Automatic transfer movements When grinding a workpiece, the machine uses different virtual models. Theses models are three-dimensional replicas of the workpiece geometry and clamping elements that the AGATHON-Software AGC+ generates. The virtual models are used to monitor as well as to avoid collisions between grinding wheel and workpiece and/or clamping elements. This provides the machine with safety and efficency. The intensive time consuming calculations of...

Open the catalog to page 3
400 PENTA - 4

Connection data Electrical connection 3x400/220/460/500 V P/E (+/- 10%) 50/60Hz (+/- 1Hz) Power consumption (without coolant cleaning unit) 23 [KVA] Ambient temperature 5 - 40 [] Humidity 30% to 95% All specifications in accordance with Standard EN 60204-1 Air pressure Required air pressure 5 - 6 [bar] Compressed air consumption (with 5bar air pressure) approx.25 [mг h > -1 ] Compressed air quality (accordance DIN/ISO 8573-1/ < Class 5) Grinding spindle Grinding wheel diameter 400 [mm] Max. grinding wheel speed 3000 [min Solid impurities, particle size max. 50 [m] Quantity of particles max....

Open the catalog to page 4
